Smart Car Robot Plastic Tire Tyre Wheel DC 3-6V Gearbox Motor Set for Arduino
$ 1.71
Description

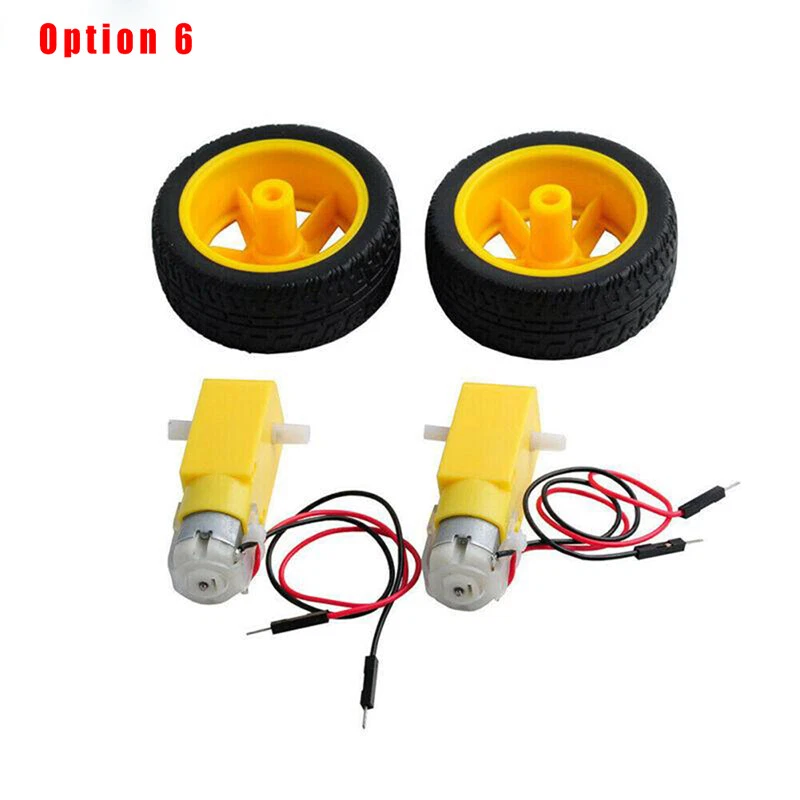

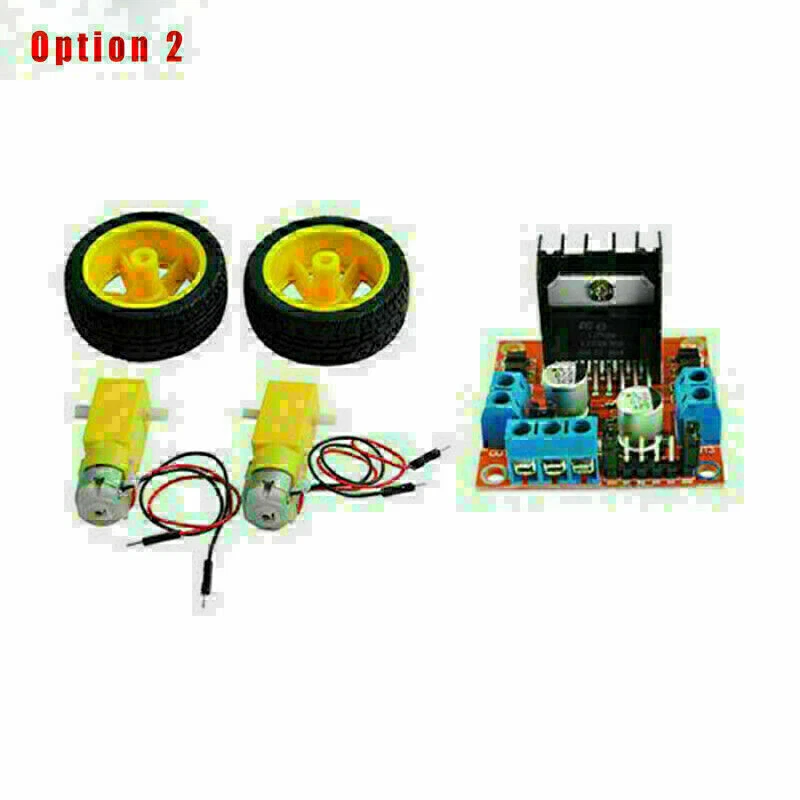

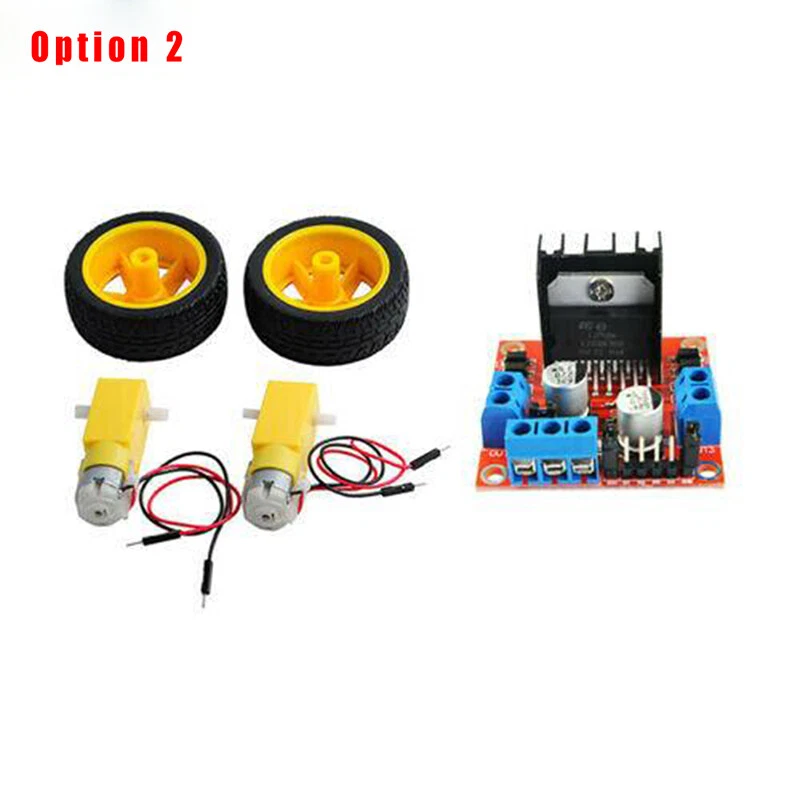

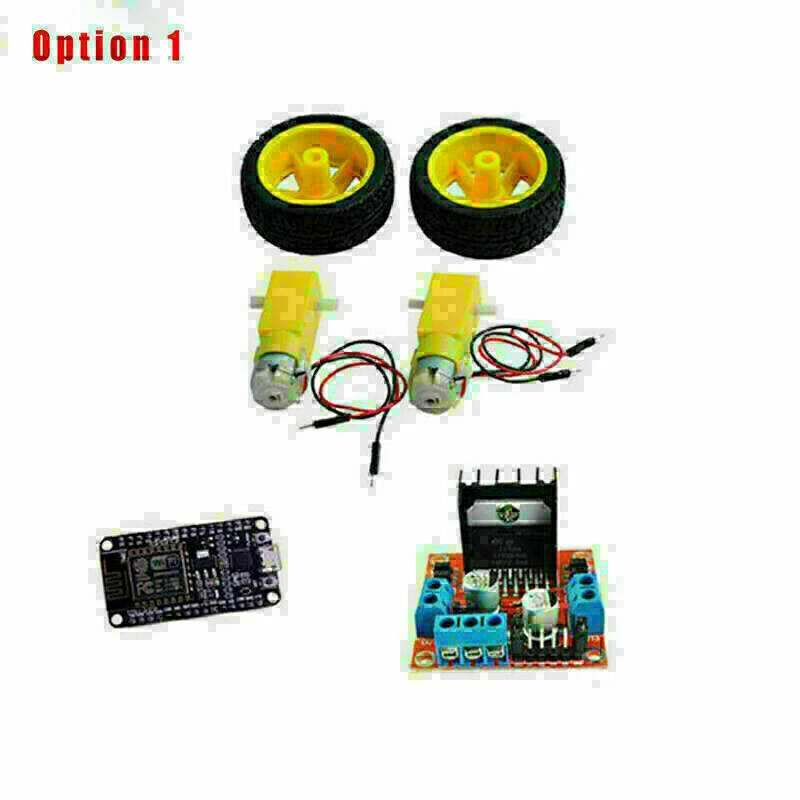

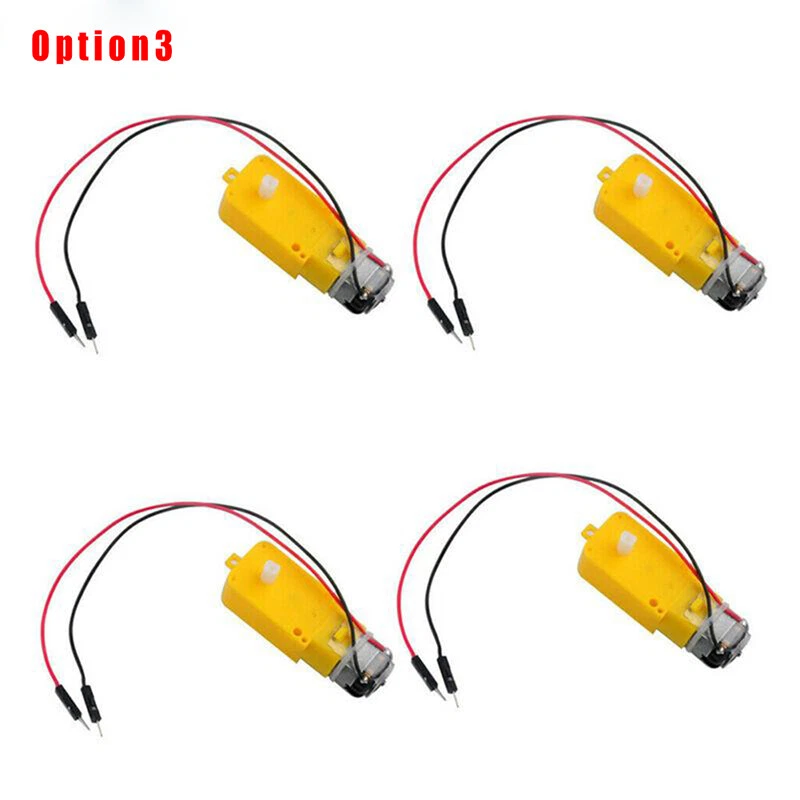

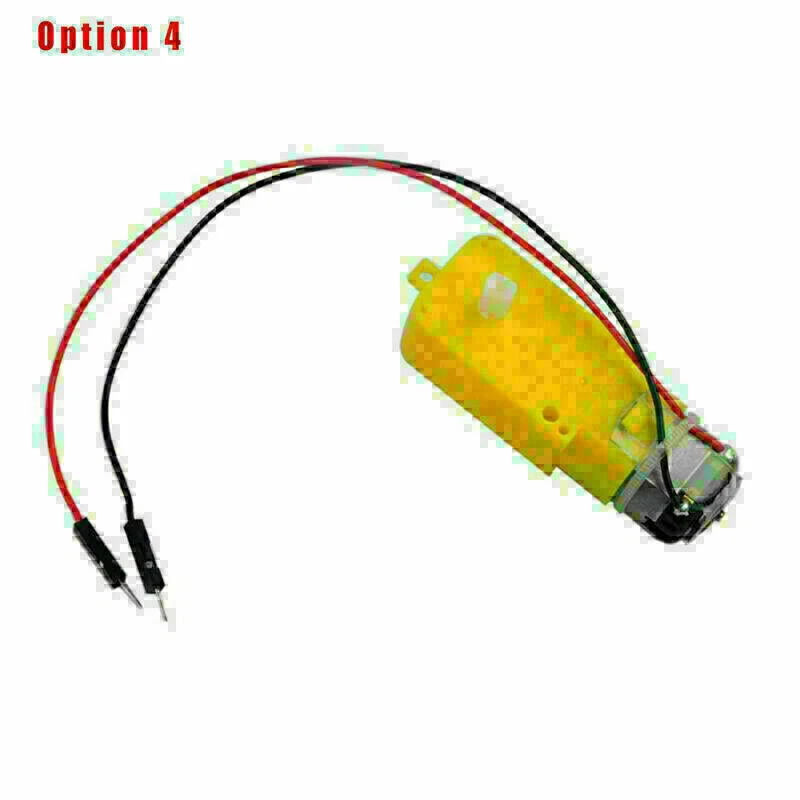

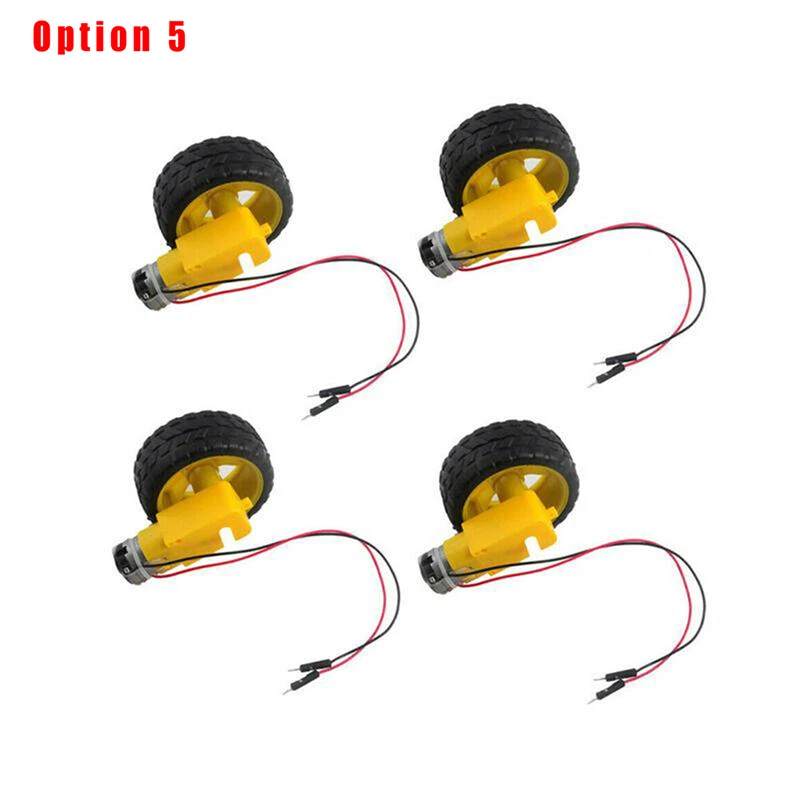

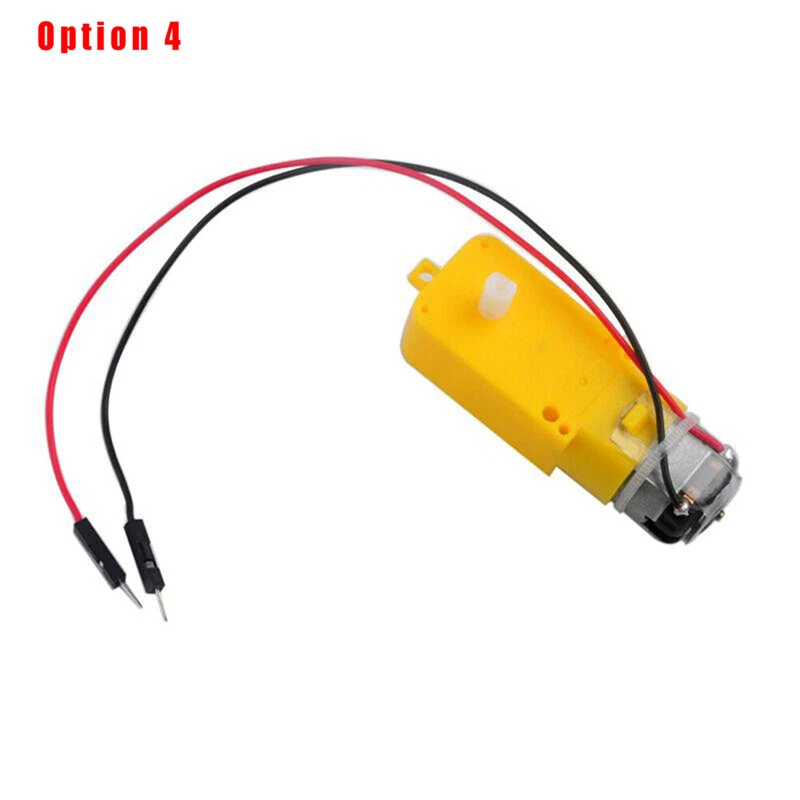

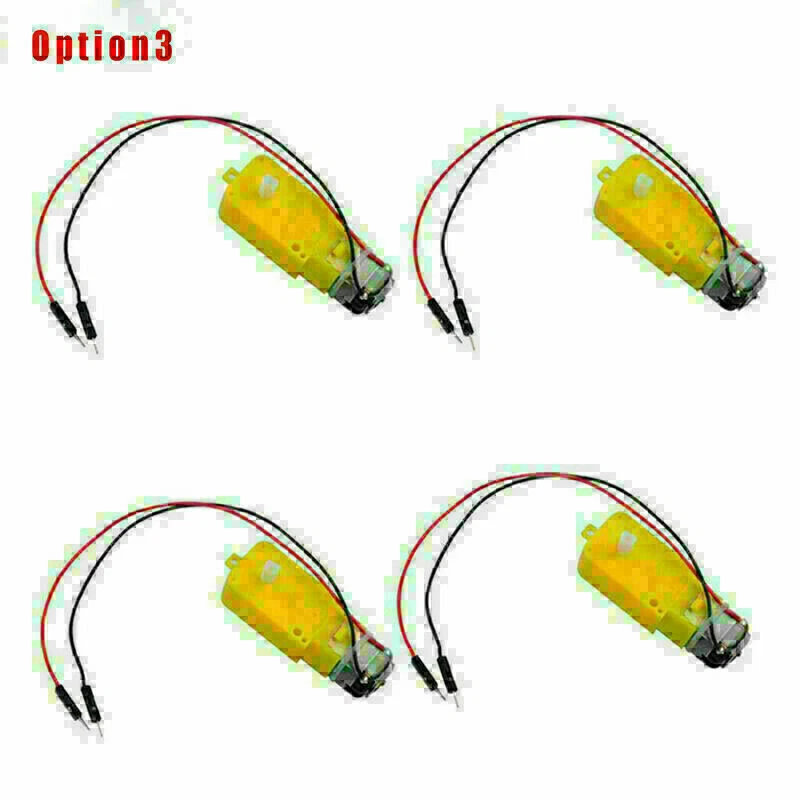

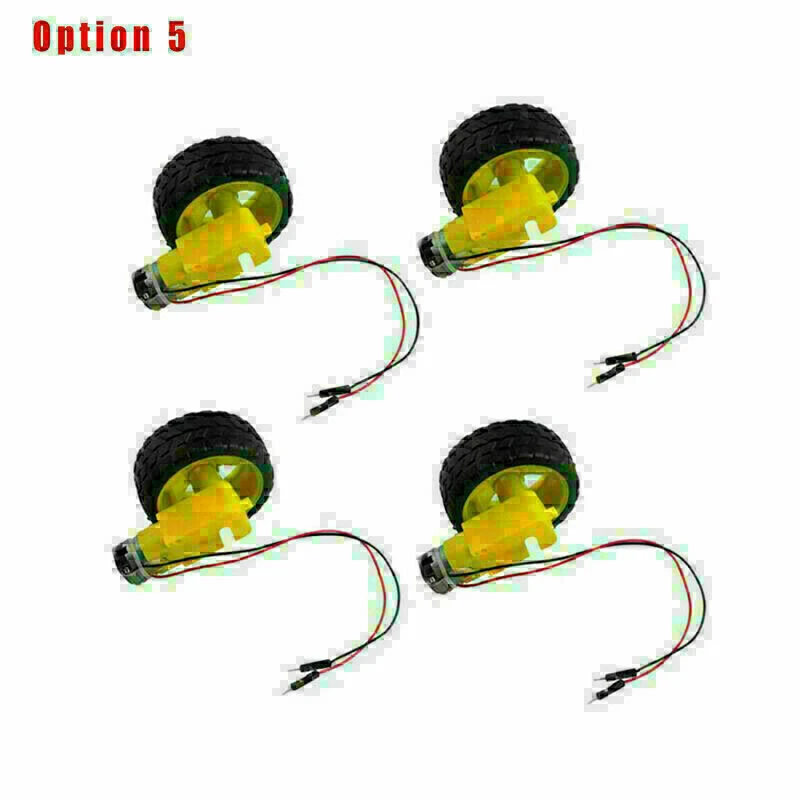

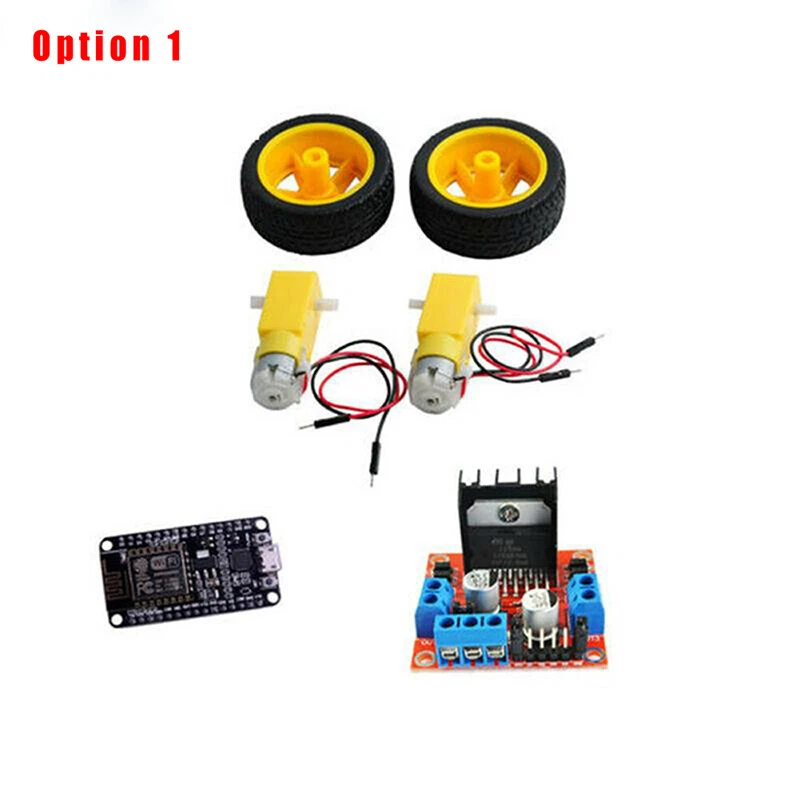

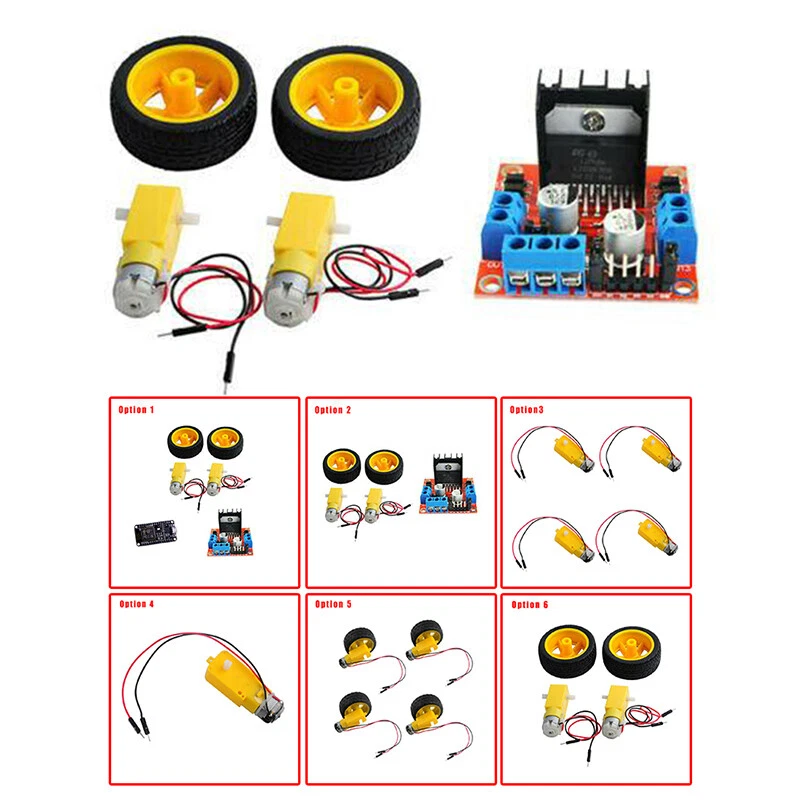

Product Description If you have any questions, please contact customer service first, do not open disputes easily, thank you! Features: 100% brand new and high quality. Made of high quality material, durable and practical to use. TT Motor: This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with board-friendly 2.54mm(0.1") male connectors. Perfect for plugging into a board or terminal blocks. Specification: Rated Voltage: 3~6V Continuous No-Load Current: 150mA +/- 10% Min. Operating Speed (3V): 90+/- 10% RPM Min. Operating Speed (6V): 200+/- 10% RPM Torque: 0.15Nm ~0.60Nm Stall Torque (6V): 0.8kg.cm(Approx.) Gear Ratio: 1:48 Body Dimensions: 70 x 22 x 18mm(Approx.) Wires Length: 200mm 28 AWG Product Weight: 29g / 1.02oz(Approx.) Wheel Feature: Wheel Diameter: 65mm(Approx.) Wheel Thickness: 28mm(Approx.) L298N Module Description: L298N as main chip, ST corporation production. Low heat, outstanding anti-interference performance. High working power to 46v, large current can reach 3A MAX and continue current is 2A, power to 25w. Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors. Built-in 78M05, get power from drive power, however, when drive power over12V, please use the external 5v power as power supply. Large capacity filter capacitance, afterflow protection diode, more stable and reliable. Specification: Options: Option#1~6 Option 1: L298N Module + NodeMCU + 2 Pairs TT Motors & Tires Option 2: L298N Module + 2 Pairs TT Motors & Tires Option 3: 4 x TT Motor Option 4: 1 x TT Motor Option 5: 4 Pairs of TT Motor + Tires Option 6: 2 Pairs of TT Motor + Tires Double H Bridge Drive Chip: L298N (ST NEW) Logical Voltage: 5V Drive Voltage: 5V-35V Logical Current: 0mA-36mA Drive Current: 2A(MAX single Bridge) Max Power: 25W Size:43 x 43 x 26mm(Approx.) Net Weight: 26g(Approx.) Package Weight:36g(Approx.) Warm Tips: This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply. DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available. When ENA enable IN1 IN2 control OUT1 OUT2 When ENB enable IN3 IN4 control OUT3 OUT4 Package Contents(Optional): Package Contents 1: L298N Module + NodeMCU + 2 Pairs TT Motors & Tires Package Contents 2: L298N Module + 2 Pairs TT Motors & Tires Package Contents 3: 4 x TT Motor Package Contents 4: 1 x TT Motor Package Contents 5: 4 Pairs of TT Motor + Tires Package Contents 6: 2 Pairs of TT Motor + Tires Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. About Us We accept all payments authorized by eBay. About Us We accept all payments authorized by eBay. powered by On Mar 1, 2024 at 07:52:00 PST, seller added the following information:
