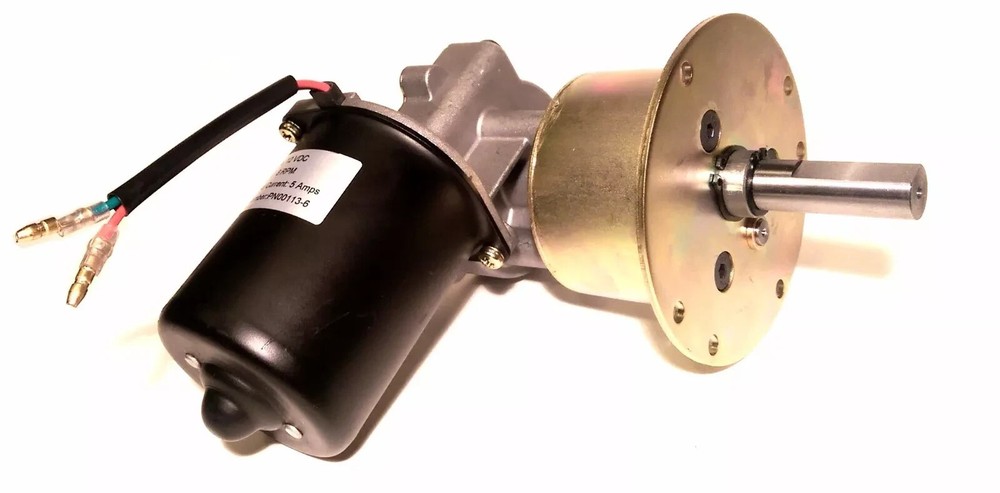

Makermotor 12V DC 6RPM High Torque Reversible Gear Motor with DPDT Switch

$ 50.16

gtin13: does not apply MPN: does not apply Motor+Part+Type: Permanent+Magnet Reversible/Non-Reversible: Reversible Rated Load (HP): 1/2 Current Type: DC UPC: does not apply Brand: Unbranded Nominal Rated Input Voltage: 12 V Model: does not apply Country/Region of Manufacture: United States Product+Type: Gearmotor Drive+%26+Amplifier+Type: DC+Motor+Controller Motor+Controls+Type: Speed+Controls Product Type: Motor Controls

Description

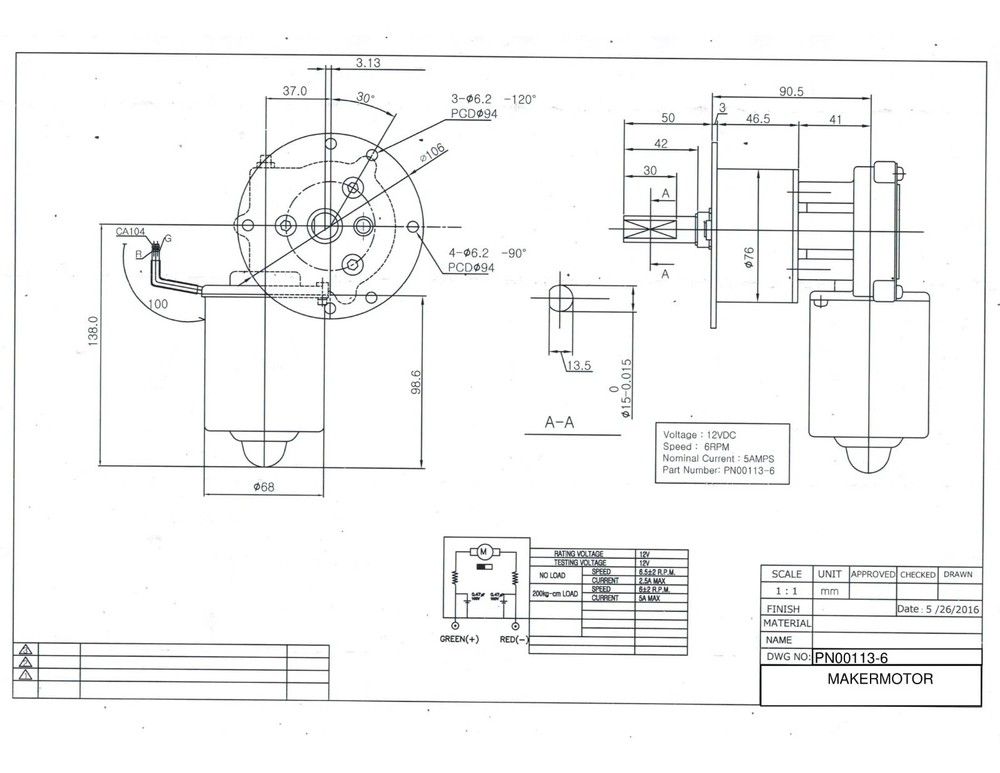

PN00113-6 High Torque 6 RPM Conveyor and Rotisserie Gear Motor 12V DC Reversible Due to its low speed and 12vdc features, this motor is ideal for a mobile rotisserie application. Other applications include display turntable, conveyor system, sign display, motorized fishing reel, and more. 12VDC Gear Motor: 21 N-m (15.5 ft-lb) torque at 6 RPM. Permanent magnet stator. Overall envelope dimensions are 8 inches by 8 inches by 5 inches. Shaft dimensions are 15mm diameter by 50mm (2.0 inches) of length. The shaft is a D-shaft (shaft with a flat). Motor control is very simple. A center-off DPDT switch is included so the user simply leave the toggle at its center position for off, flip the toggle to one side for forward, and flip the toggle to other side for reverse.
