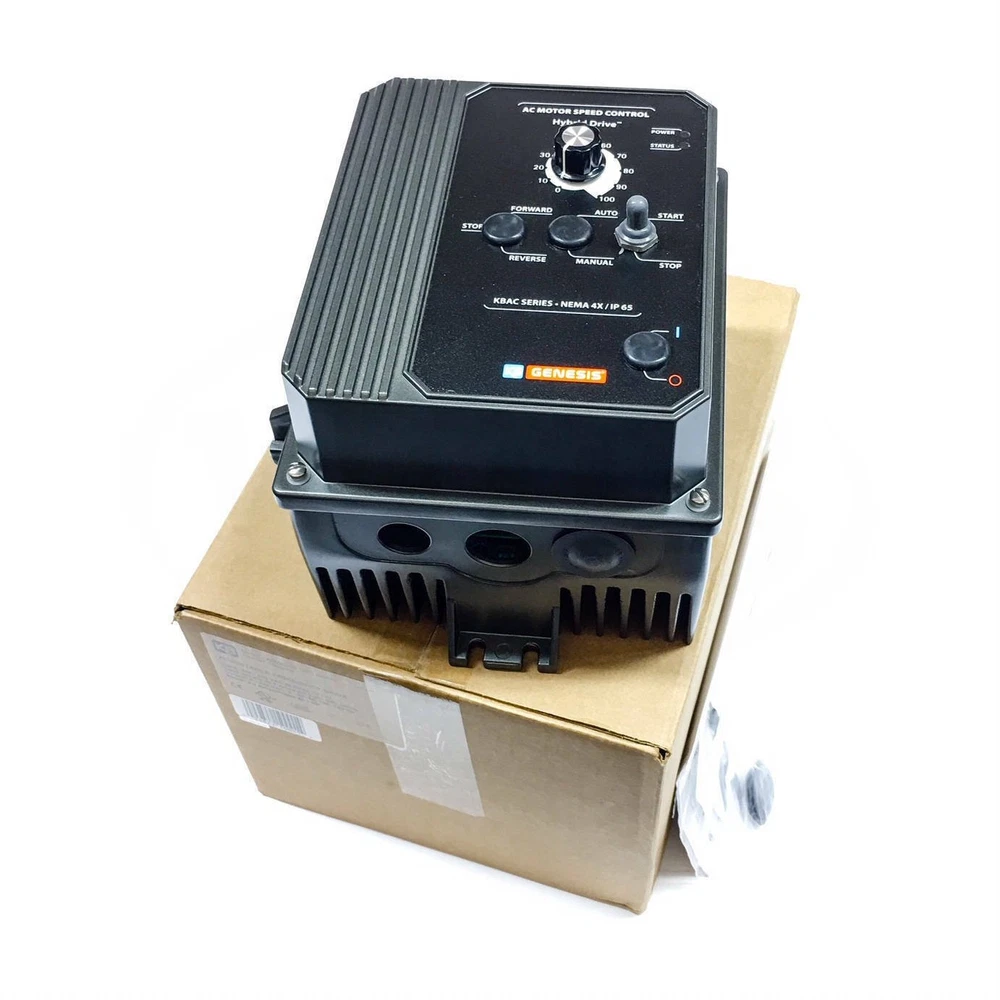

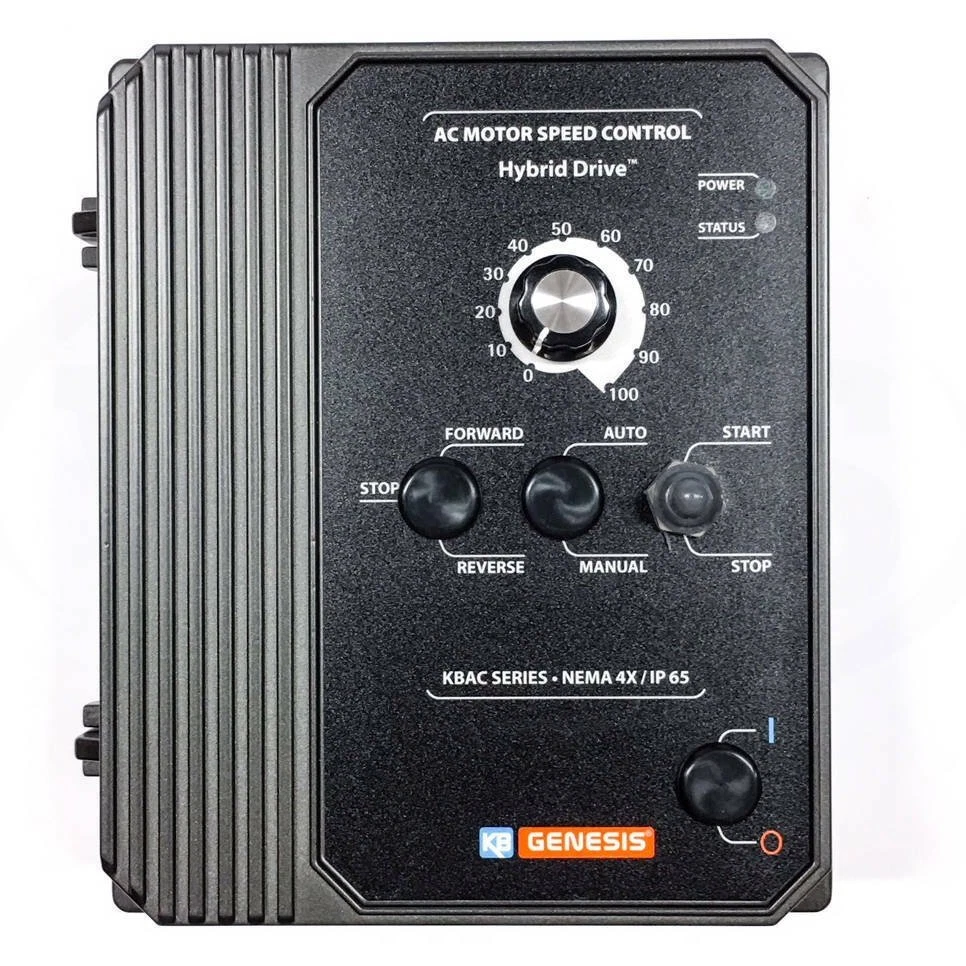

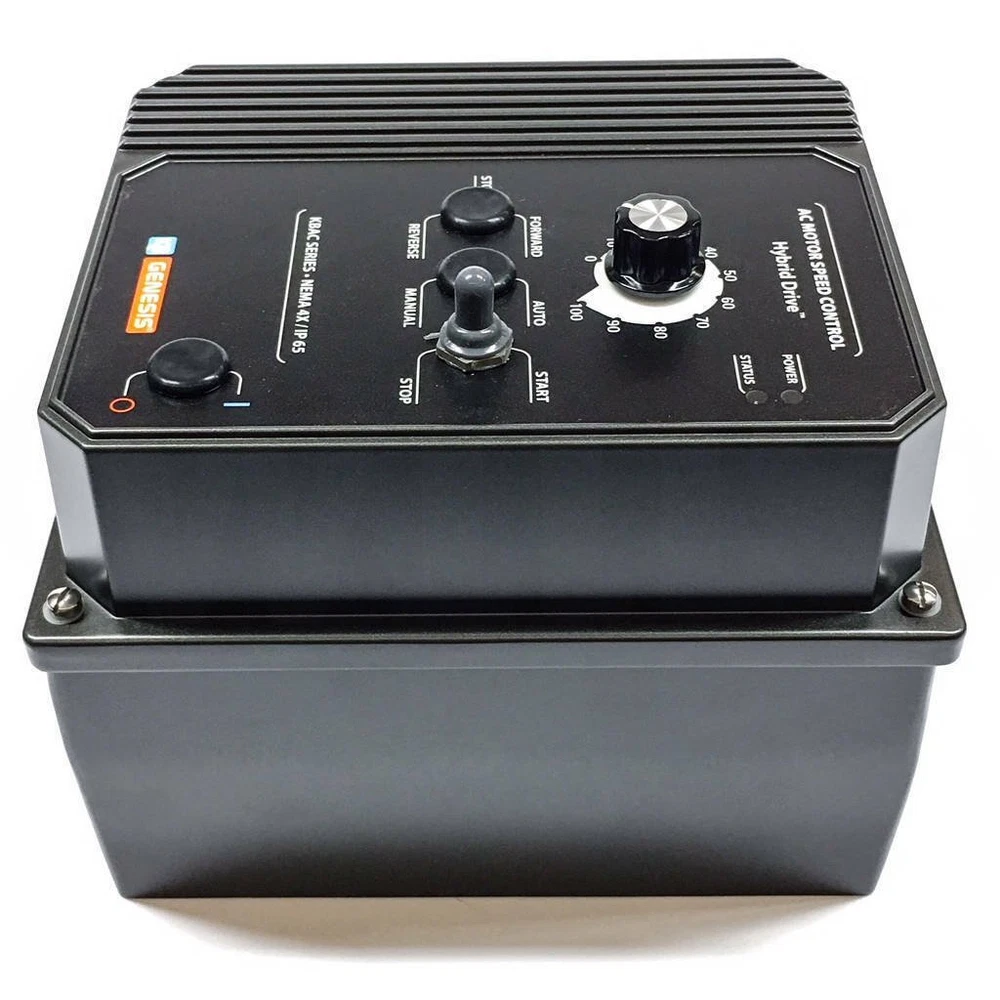

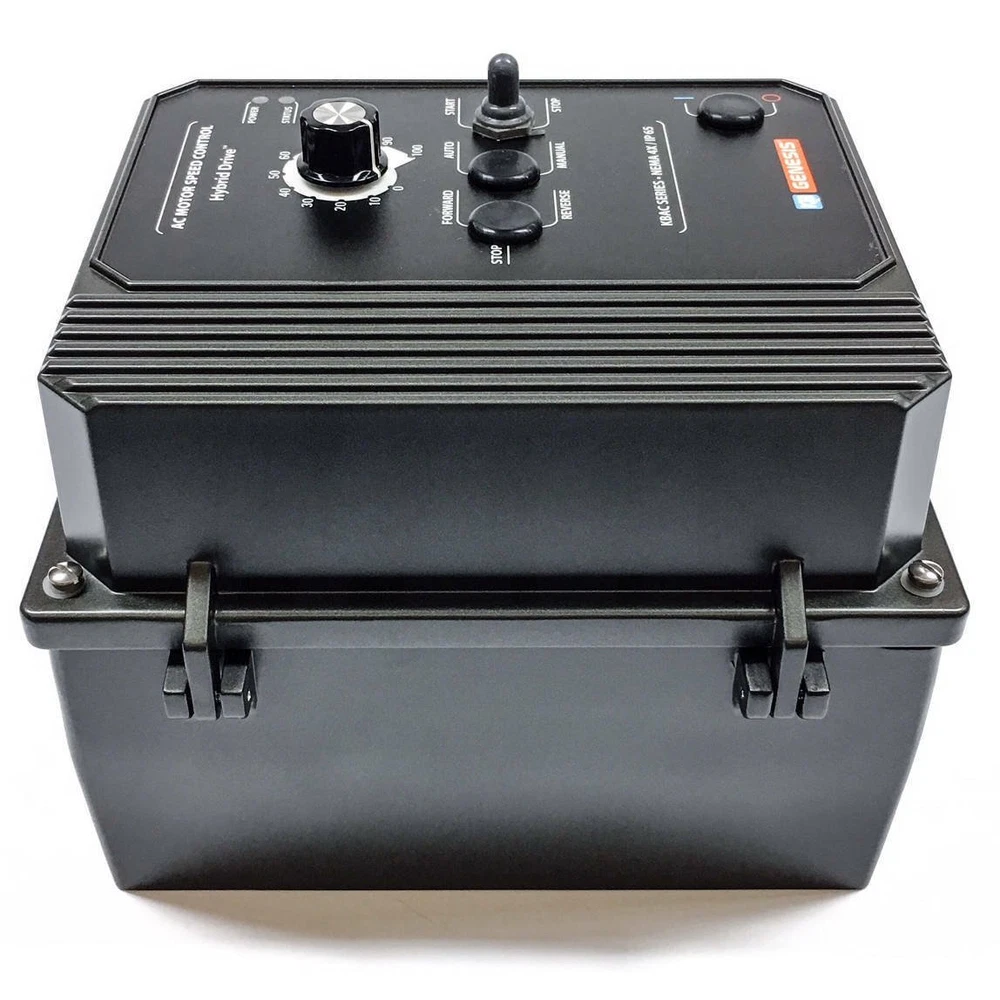

KB Electronics KBAC-29 (Single Phase) Adjustable Frequency Drive, 10001 208/230V
$ 236.01
Description

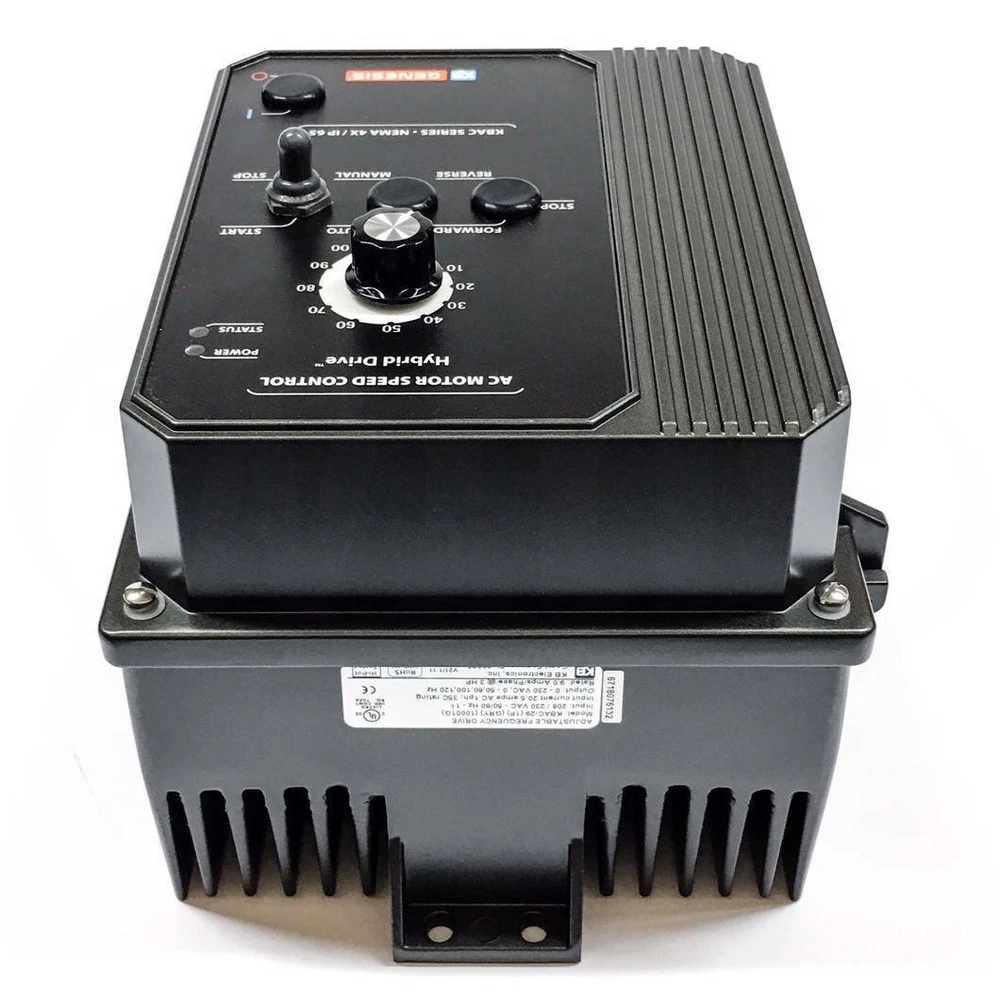

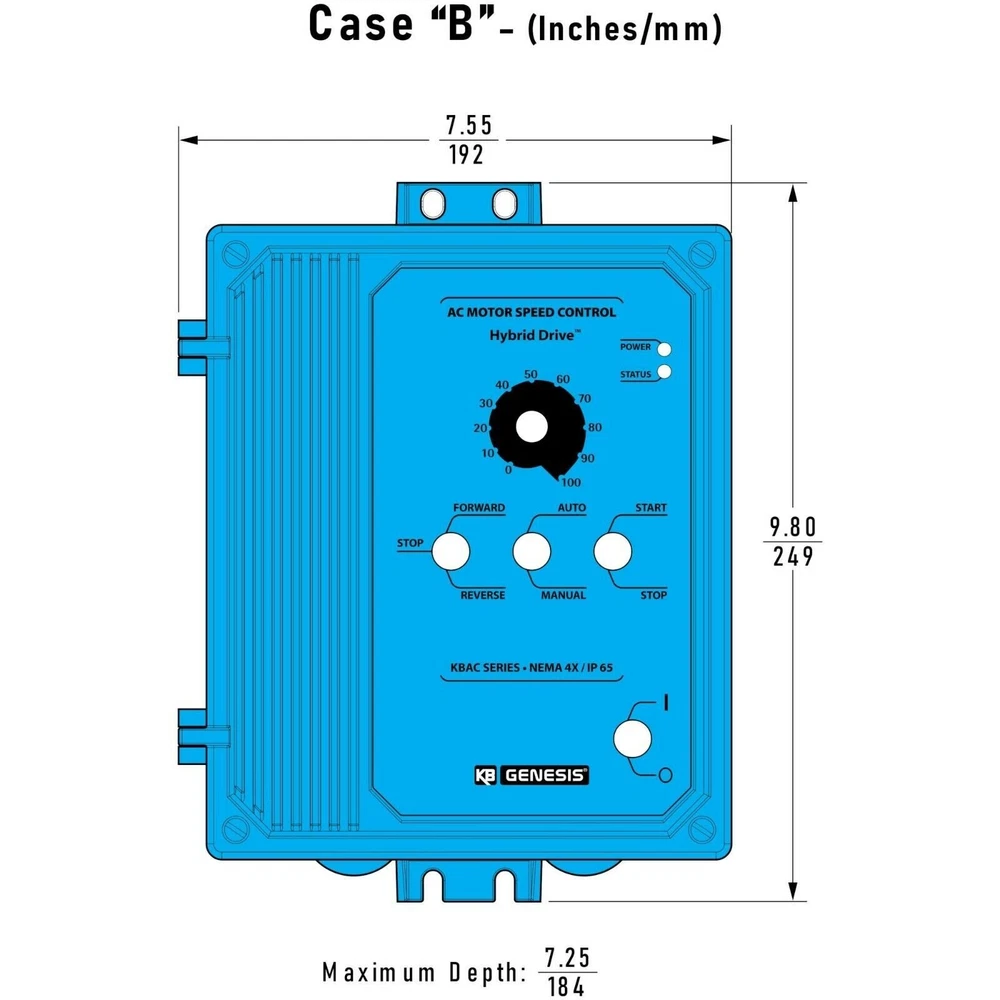

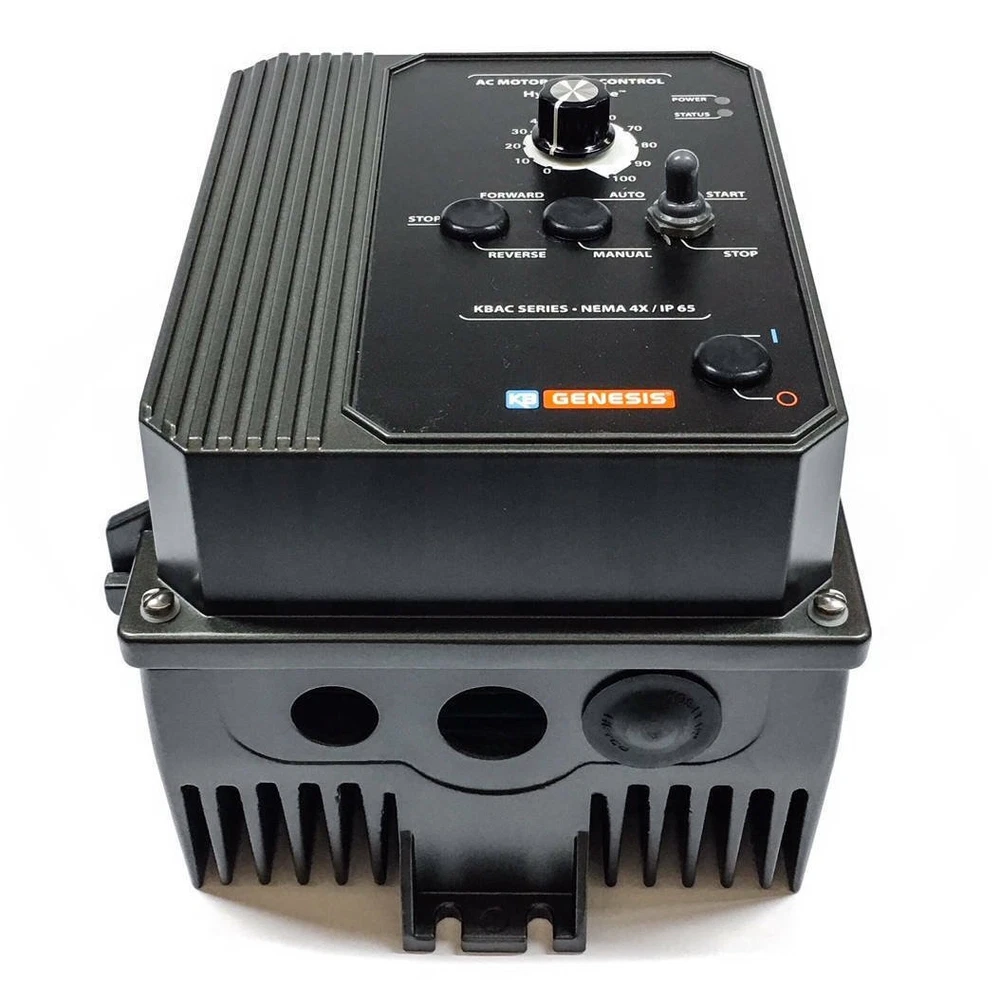

KBAC-29 (1P) Hybrid AC Drive - Digital Drive with Analog Interface Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover. Primary Features: • Horsepower 1/8 to 3 HP, Jumper Selectable • 1Ø Input 208-230 VAC, 50/60 Hz, 20.5 Amps; 35°C Rating • 3Ø Output 230 VAC, 0-50, 60, 100 or 120 Hz • Rated 9.0 Amps / Phase @ 3 HP • Start/Stop Switch • 200% Starting Torque • Diagnostic LED Status Indicators Additional Features: • Sensorless Flux Vector Control • Electronic Inrush Current Limit (EICLTM) Protection • Run/Fault Relay Output Contacts • Holding Torque at Zero Speed in "Stop" mode • Undervoltage and Overvoltage Protection • Short Circuit Protection, phase to phase • Ride-Through momentary power loss • Regeneration eliminates tripping • Basic, Programmable, Trimpot Adjustments Dimensions approx. 9.8" X 7.6" X 7.3". Agency approvals: UL, CE, CSA, C-Tick. Office
