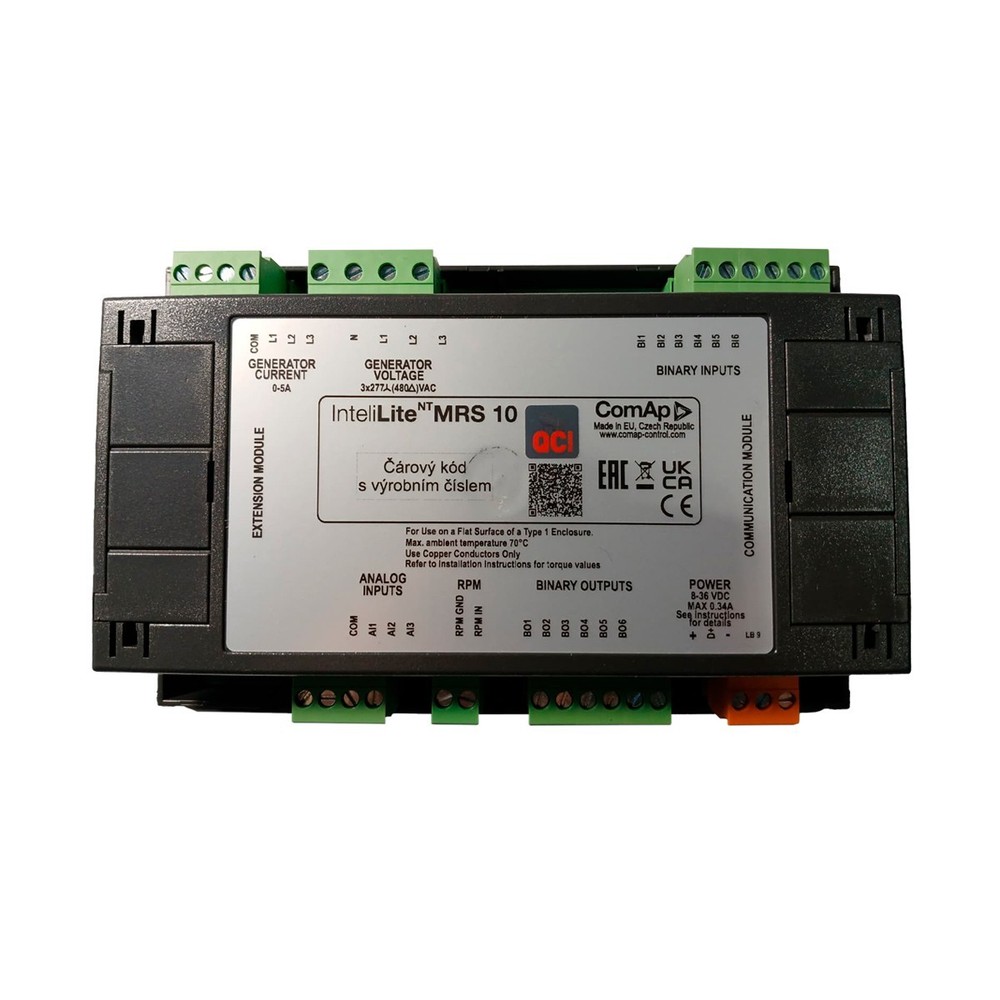

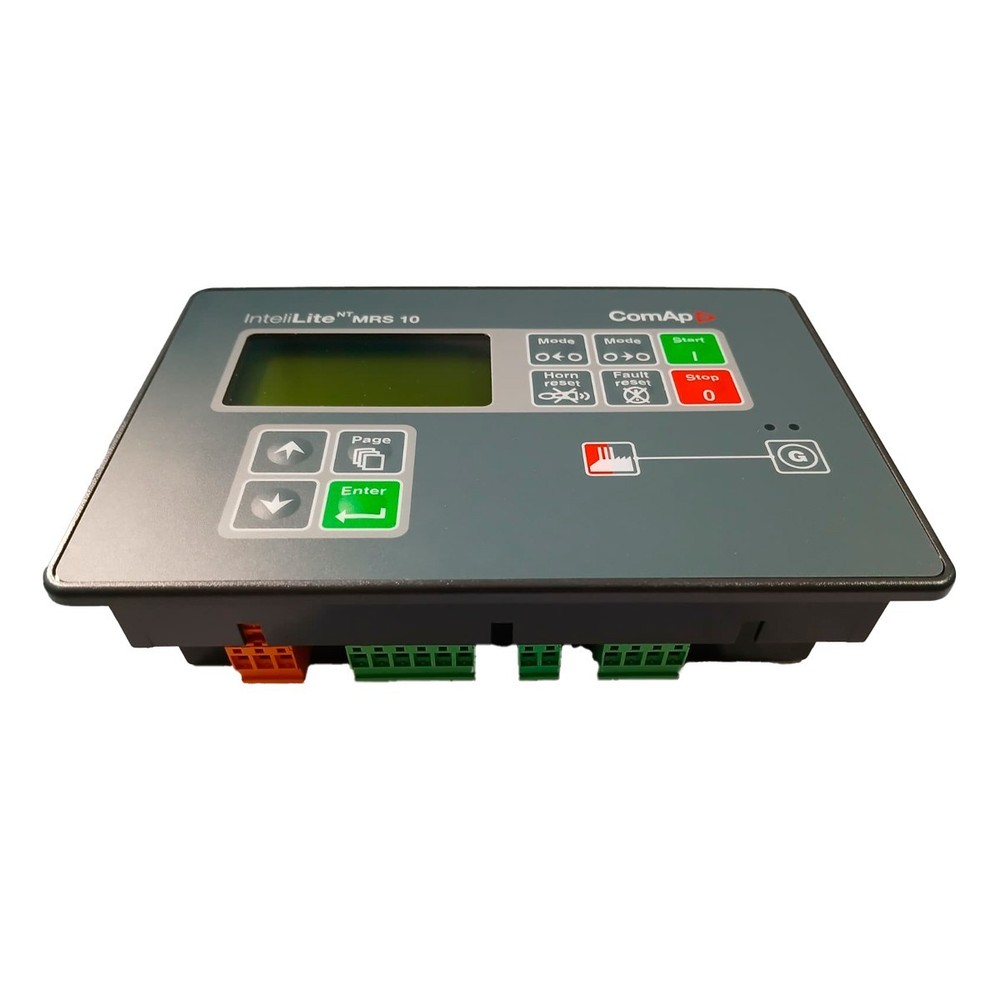

InteliLite NT MRS10 | Compact Controller | Original ComAp | Gen-set Controller

$ 237.08

Model: MRS10 MPN: MRS10 Brand: Comap Country of Origin: United States

Description

The InteliLite NT MRS 10 is a compact controller designed for single gen-set applications operating in standby mode. It meets all requirements for Manual and Remote Start (MRS) applications and provides full generator monitoring and protection. Main Features • Running hours and event log. • Plug-in extension module capability. • WebSupervisor, AirGate, and LOCATE support. • Online control and monitoring via additional modules. • Fuel theft protection. • Switchable alternative configuration. • Automatic Generator Circuit Breaker (GCB) control. • Magnetic pickup input and D+ pre-excitation terminal. • True RMS voltage and current measurement for 3-phase systems. Technical Data Power supply: 8–36 VDC. • Power consumption: 100 mA @ 8 V / 40 mA @ 36 V. • Operating temperature: -20 °C to +70 °C (LT version: -40 °C). • Operating humidity: 95 % non-condensing (IEC/EN60068-2-30). • Front panel protection: IP65. • Voltage measurement: 3-phase up to 480 V Ph-Ph (277 V Ph-N). • Current measurement: 5 A nominal, 10 A continuous, 50 A/1s max. • Measurement accuracy: ±2 %. • Binary inputs: 6 non-isolated, 8–36 VDC. • Binary outputs: 6 non-isolated, max. 0.5 A (2 A per group). • Analog inputs: 10-bit resolution, ±2 % accuracy. • Display: Monochromatic, 128x64 pixels. Mounting Conditions: The controller is designed for panel door mounting with a cut-out size of 175x115 mm. The required depth (parameter x) depends on the plug-in module installed (ranging from 74 to 128 mm).
