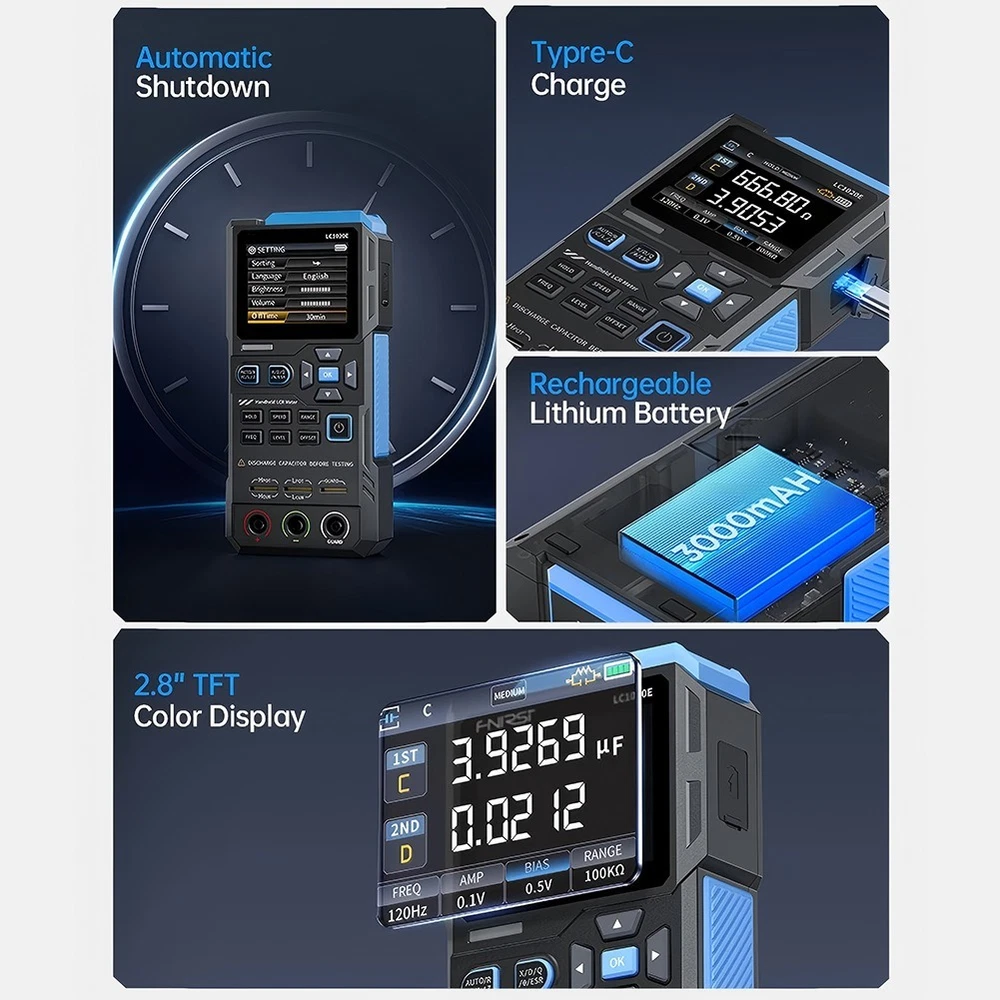

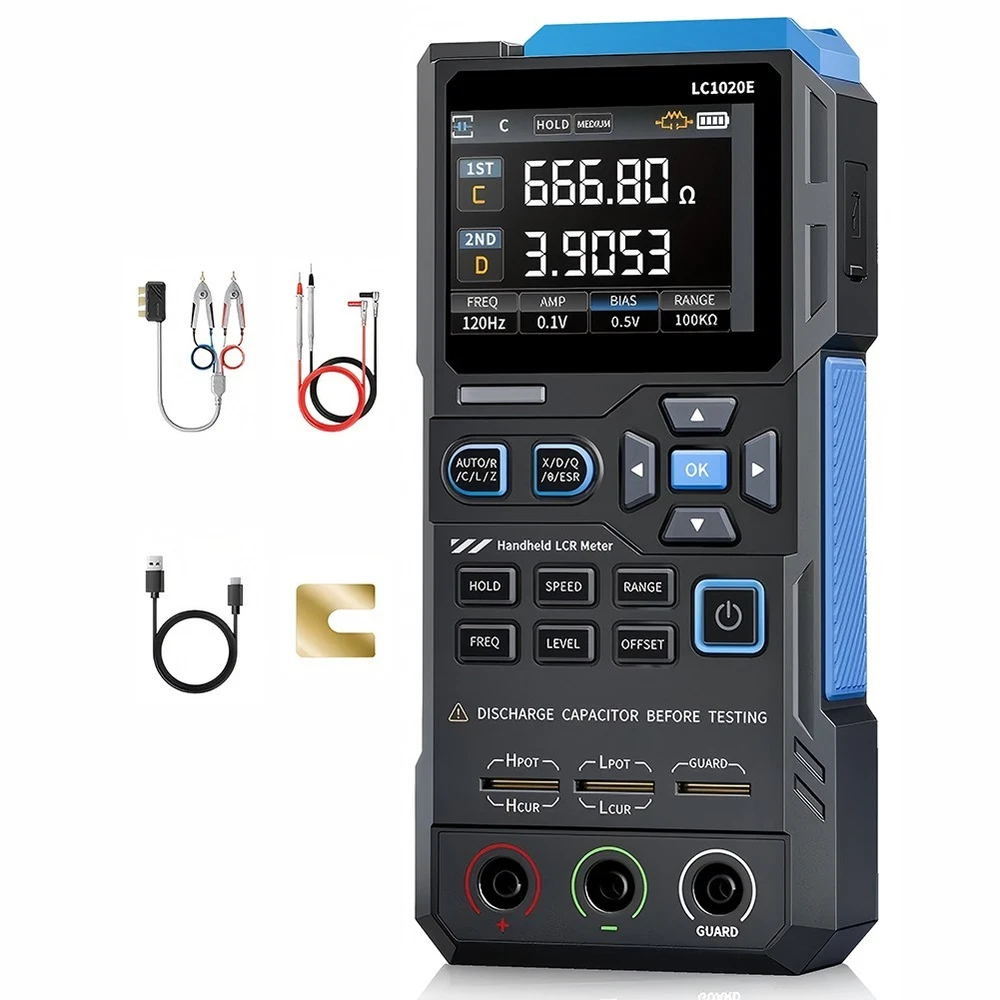

ESR Tester Digital Bridge Tester 2.8-inch TFT Display Component Testing
$ 51.94
Description

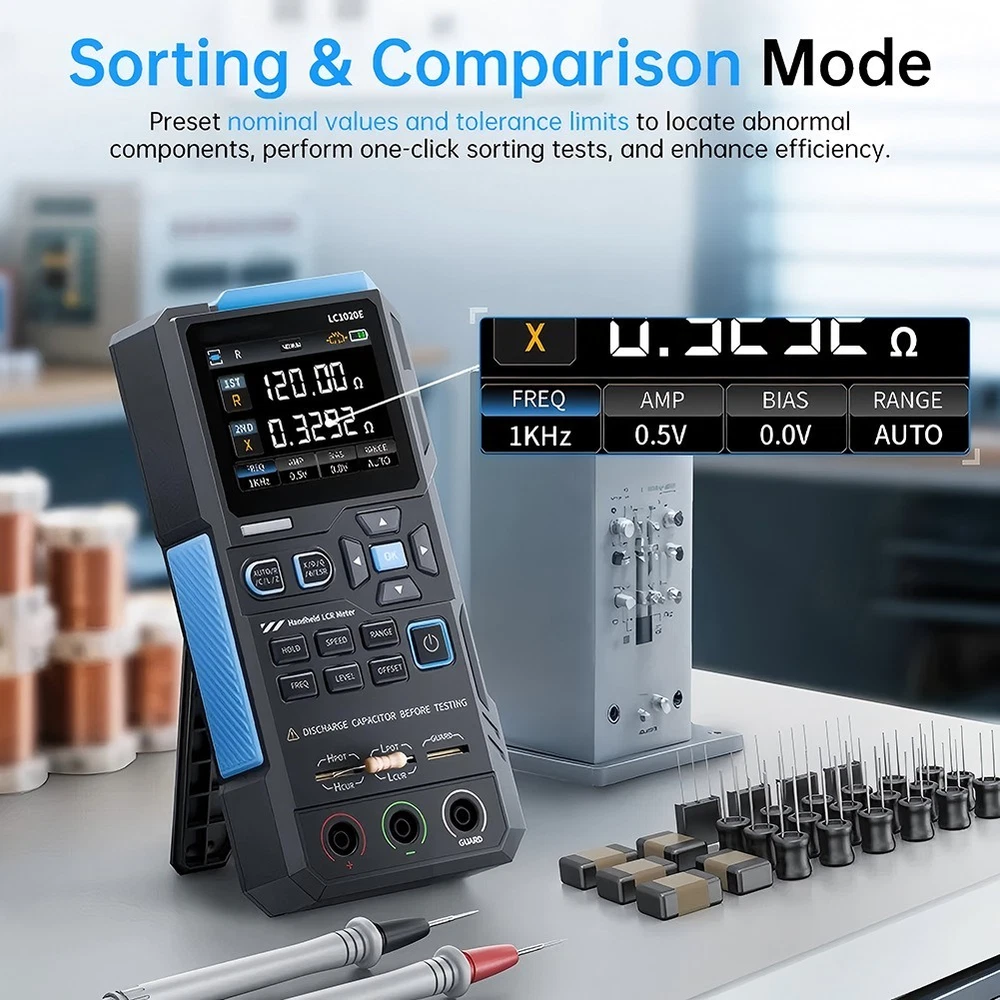

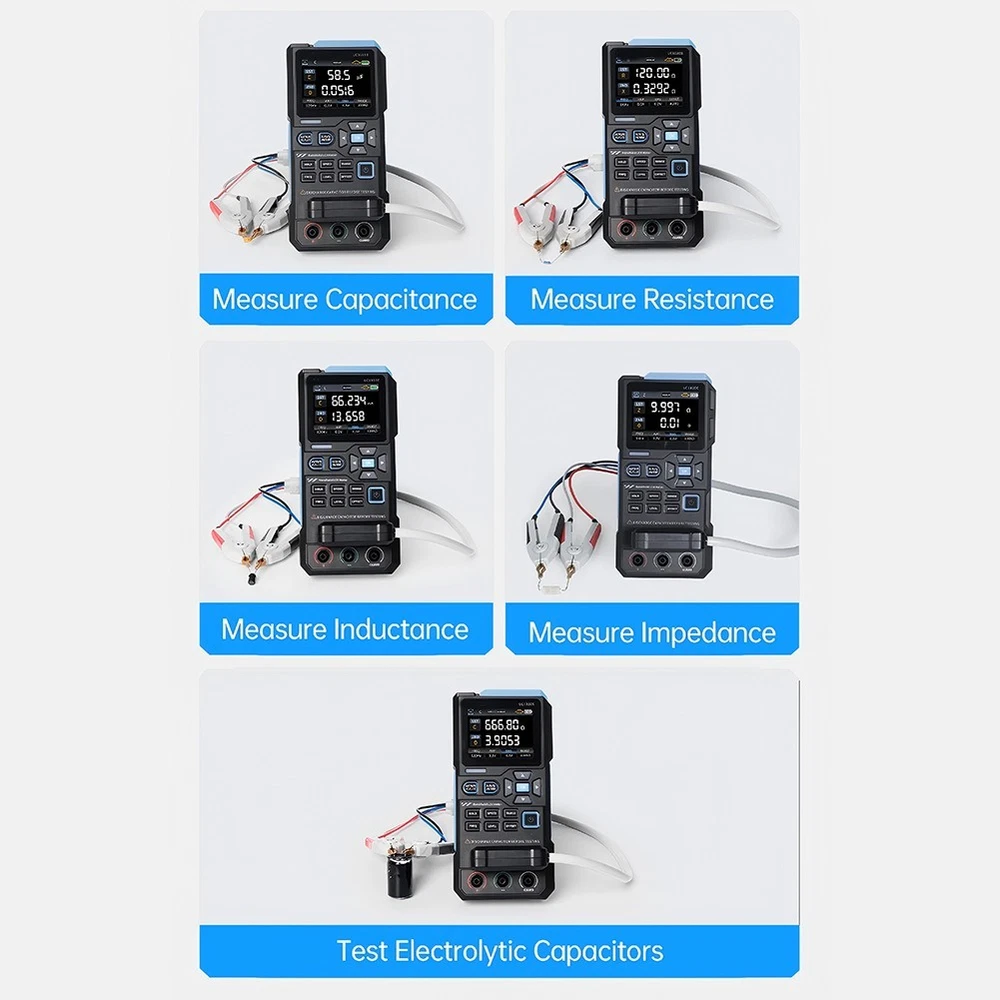

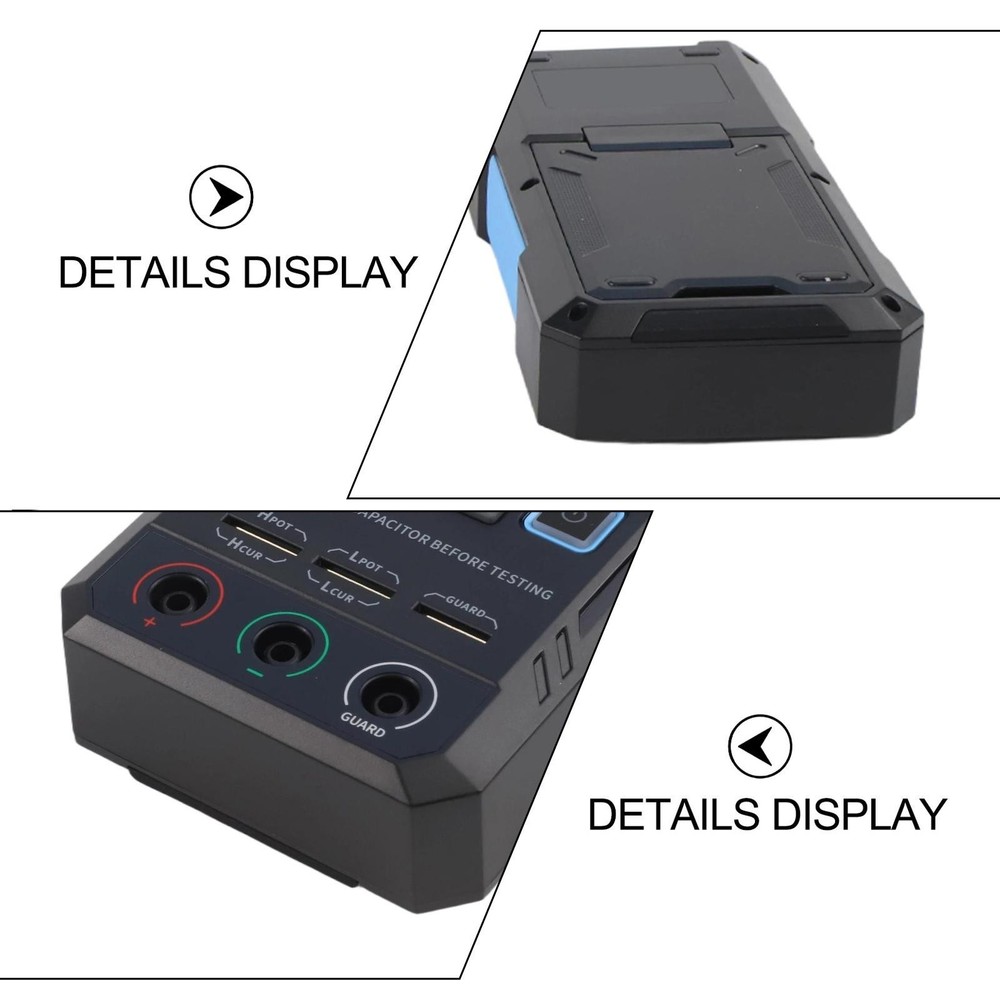

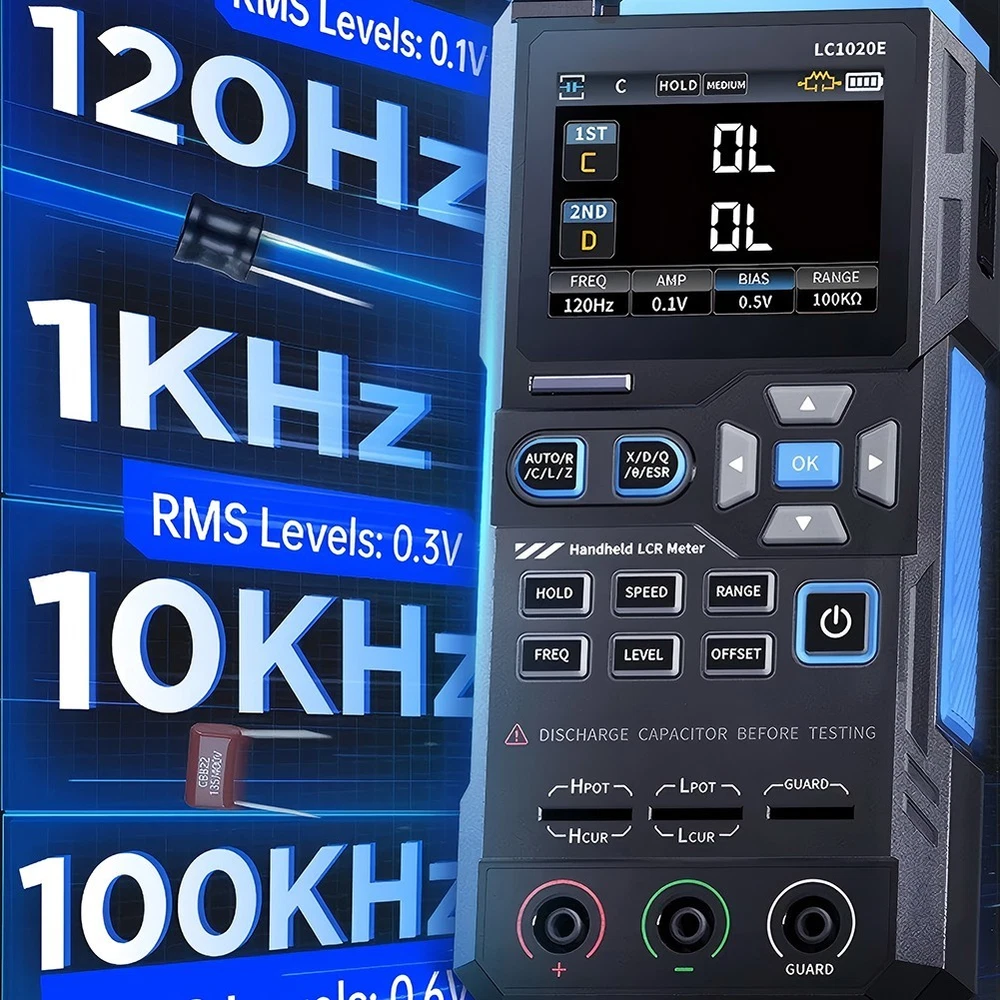

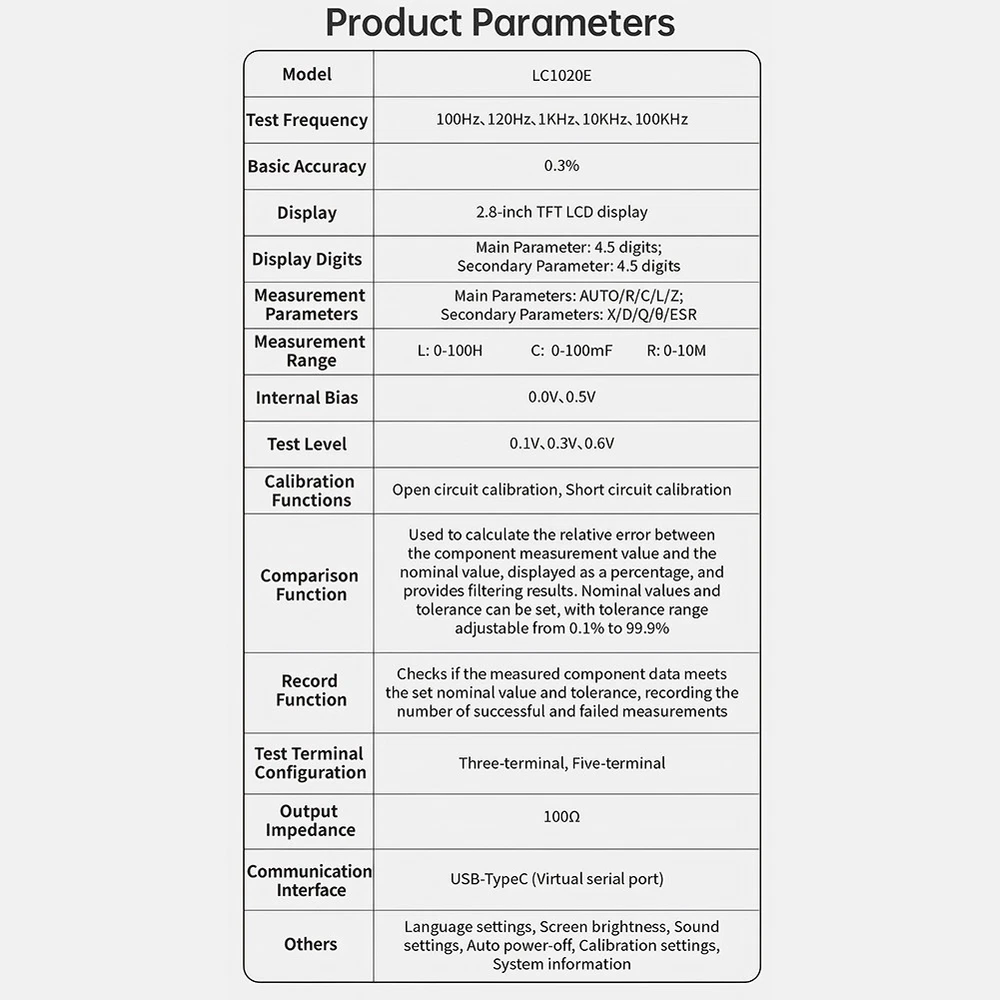

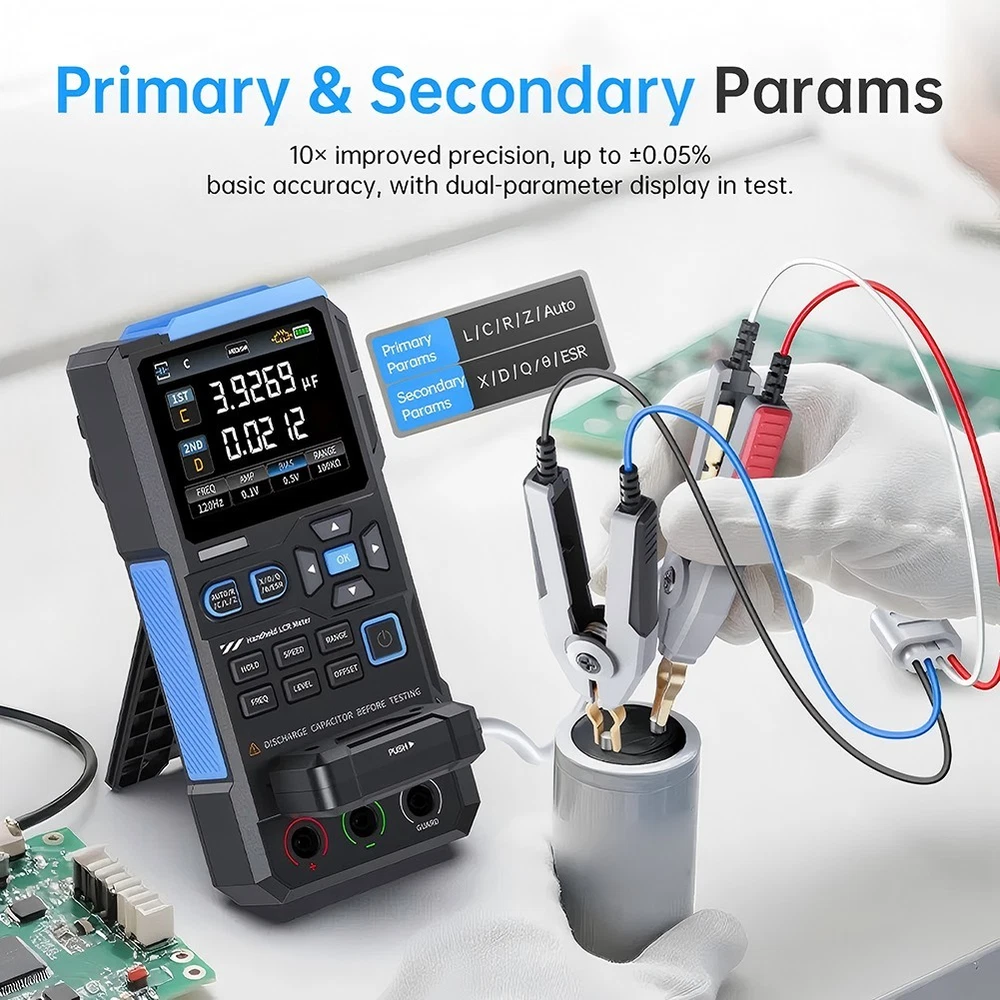

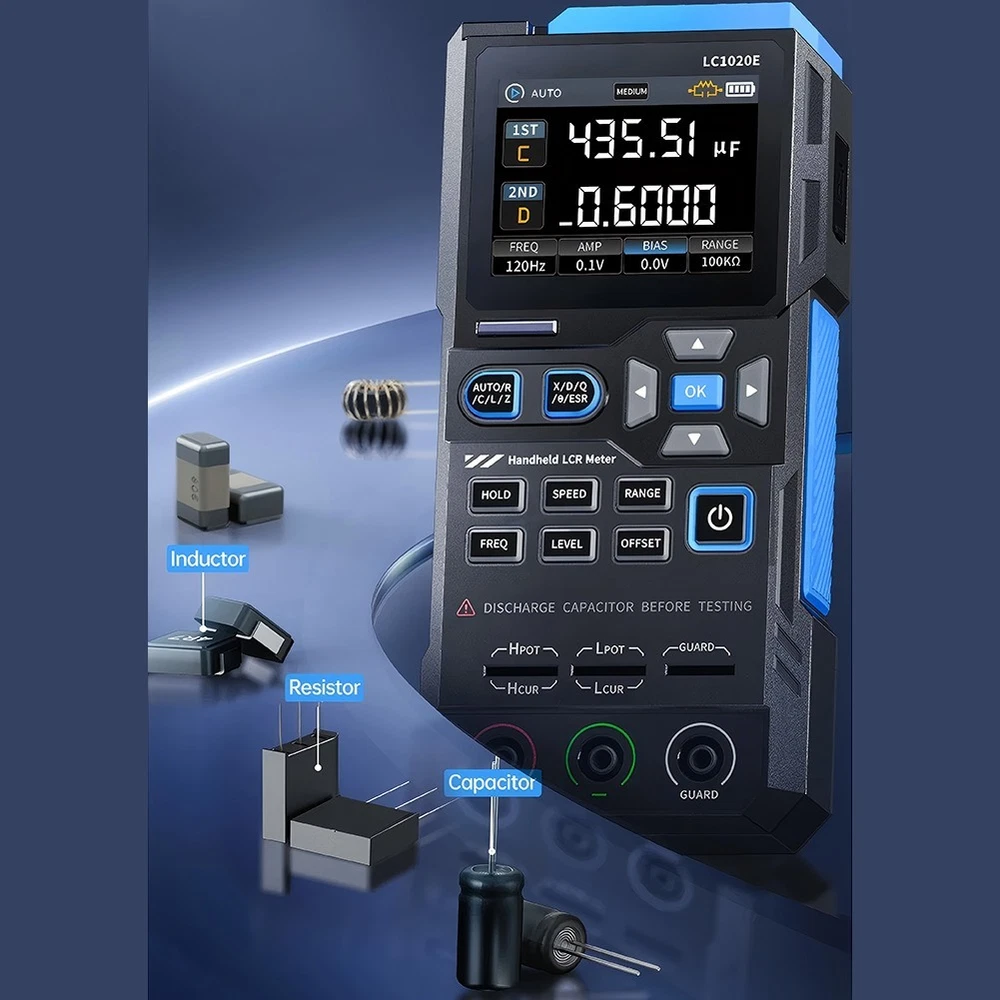

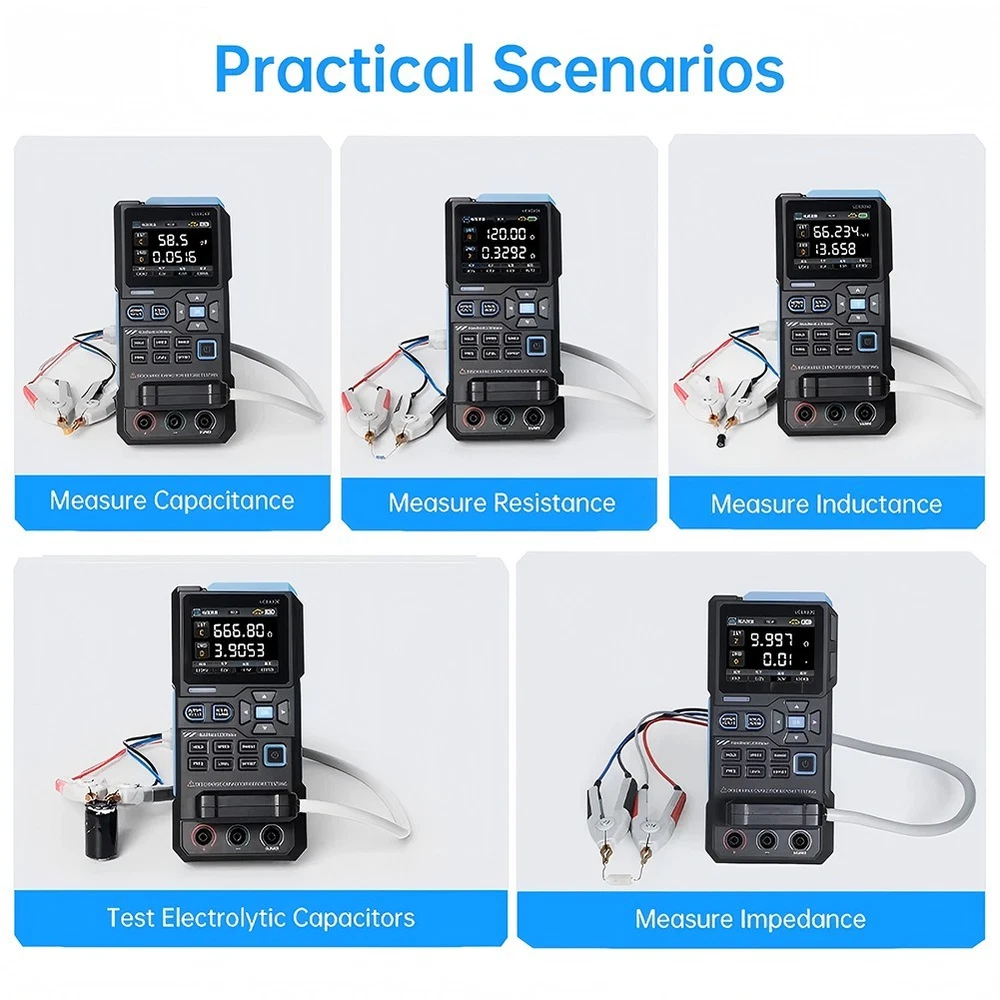

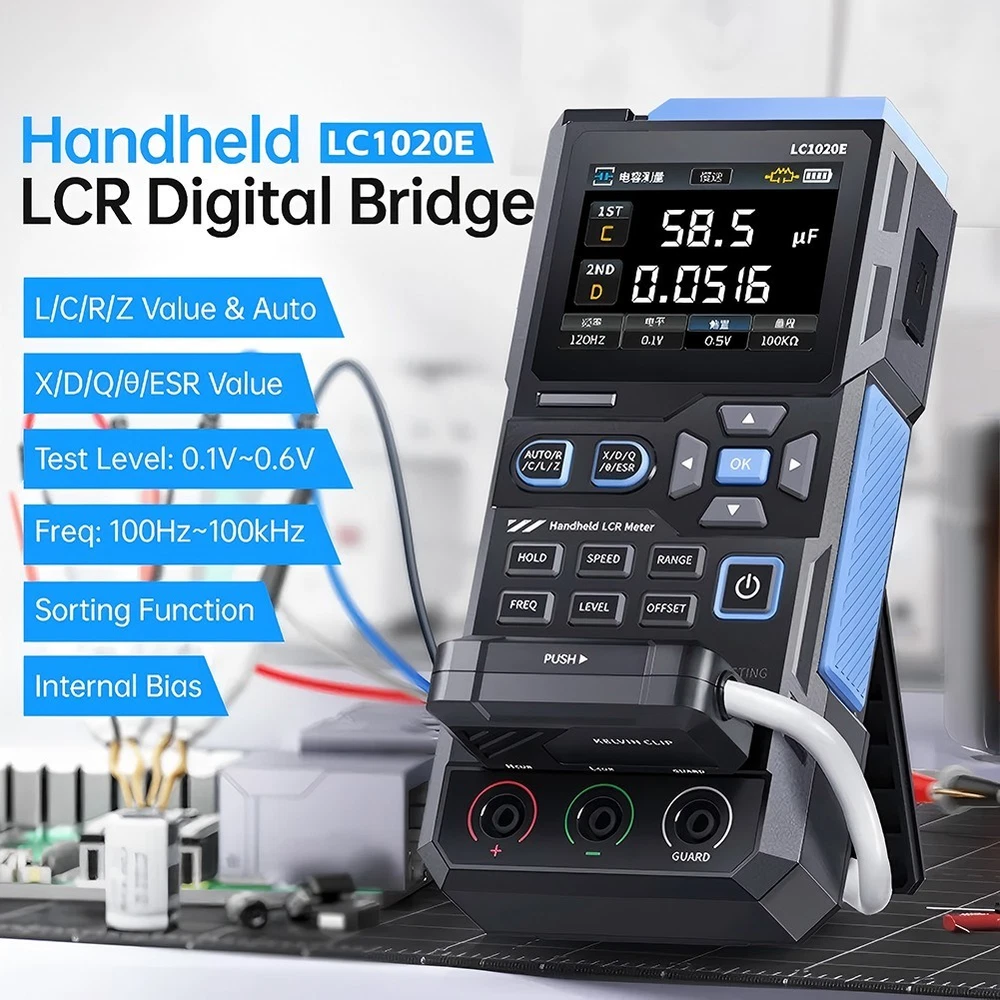

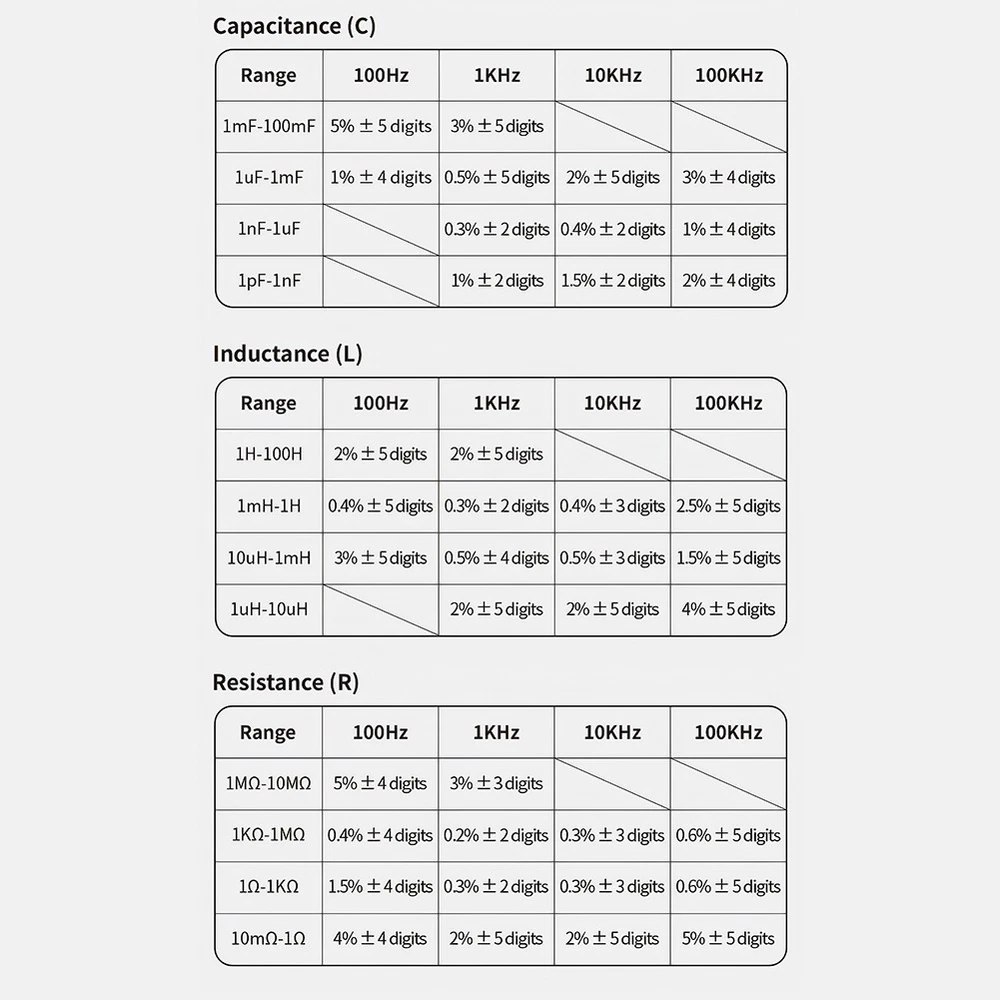

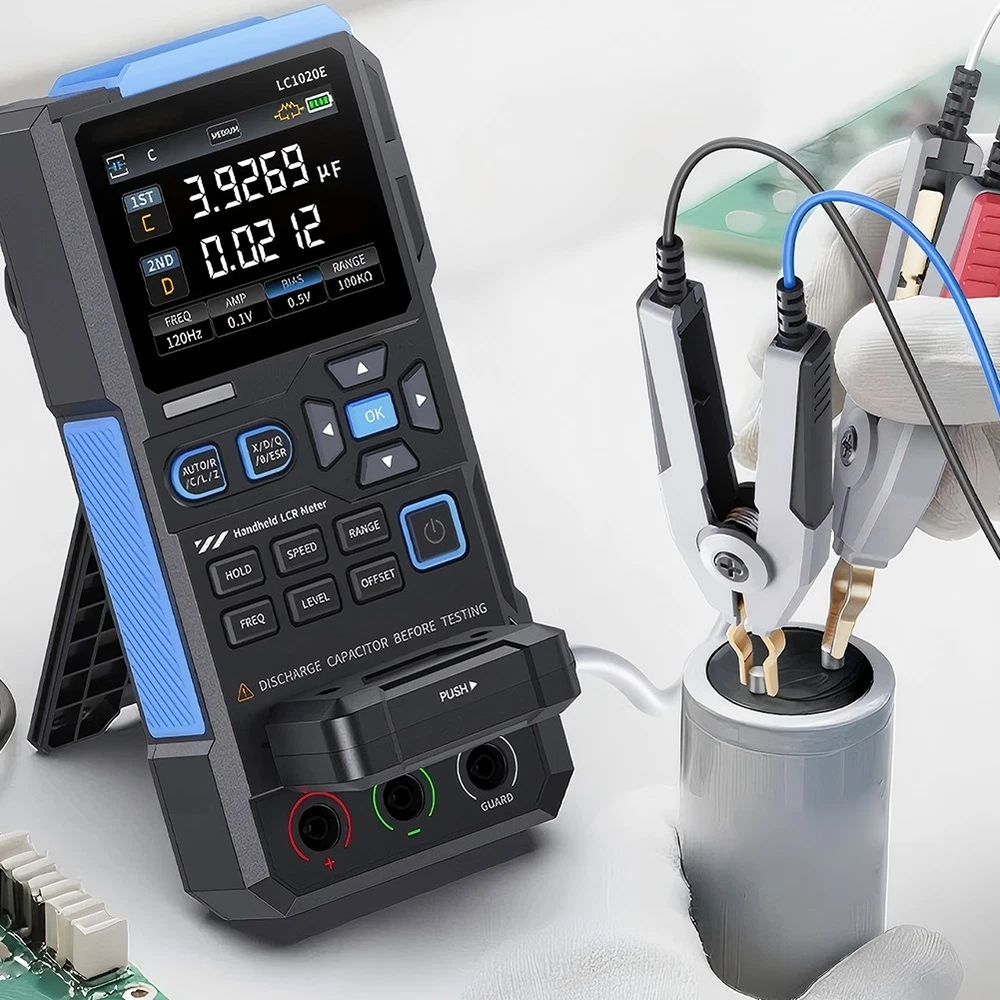

ESR Tester Digital Bridge Tester 2.8-inch TFT Display Component Testing DESCRIPTION Features: 1. High-Precision, Wide-Range Measurement: The LC1020E boasts a basic accuracy of up to 0.3%, reliable and precise professional measurements. It supports a wide measurement range of inductance (0-100H), capacitance (0-100mF), and resistance (0-10MΩ), making it suitable for a wide range of components. 2. Multiple Frequencies and Selectable Test Levels: This LCR meter five selectable test frequencies (100Hz, 120Hz, 1kHz, 10kHz, 100kHz) and three test levels (0.1V, 0.3V, 0.6V), providing the flexibility to accurately analyze component characteristics under a wide range of conditions, from general-purpose testing to high-frequency parameter analysis. 3. Dual Test Ports for Versatile Versatility and Reliability: The device a convenient three-terminal test socket for quick, everyday measurements, as well as a five-terminal test slot. The five-terminal configuration supports full four-terminal Kelvin measurements when used with professional test fixtures, minimizing impedance errors and the highest measurement accuracy. 4. Intelligent Component Sorting and Data Logging: The intelligent comparison function significantly improves batch testing efficiency. Simply set the nominal value and tolerance (0.1% - 99.9%) to automatically sort components, with pass/fail results confirmed via visual and audio prompts. Data logging mode records the number of pass and fail measurements for effective quality control. 5. Portable Design, Clear Display, and Long Battery Life: The LC1020E is designed for laboratory, production line, and field use. Its compact design a powerful 3.7V, 3000mAh rechargeable lithium battery. The large 2.8-inch TFT color screen clearly displays all primary and secondary parameters (L/C/R/Z, X/D/Q/θ/ESR), making it easy to read measurement values anytime, anywhere. Specifications: Part Name: LC1020E Digital Bridge Handheld Tester Material: ABS Model: LC1020E Color: Black size: As shown 1. Display: 2.8-inch TFT LCD 2. Basic Accuracy: 0.3% 3. Number of Display Digits: Primary Parameter: 4.5 digits; Secondary Parameter: 4.5 digits 4. Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz 5. Test Level: 0.1V, 0.3V, 0.6V 6. Internal Bias: 0.0V, 0.5V 7. Measurement Parameters: Primary Parameters: AUTO/R/C/L/Z; Secondary Parameters: X/D/Q/θ/ESR 8. Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10MΩ 9. Measurement Speed: Fast (4 times/second), Medium (2 times/second), Slow (1 time/second) 10. Calibration Function: Open-circuit calibration, short-circuit calibration 11. Comparison Function: Calculates the relative error between the measured component value and the nominal value, displays it as a percentage, and provides a filtered result. The nominal value and tolerance can be set, with an adjustable range of 0.1% to 99.9%. 12. Recording Function: Checks whether the measured component data meets the set nominal value and tolerance, and records the number of successful and failed measurements. 13. Test terminal configuration: three-terminal, five-terminal 14. Output impedance: 100Ω 15. Communication interface: Type C (virtual serial port) 16. Other functions: Language setting, screen brightness, sound settings, auto power off, calibration settings, system information. Package Contents: 1. LC1020E LCR meter *1 2. Data cable *1 3. Short circuit board *1 4. Kelvin test clip *1 5. Test (black *1 + red *1) 6. User manual *1 Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. POLICES Shipping Payment WARRANTY We only ship to confirmed ebay Order addresses. Please comfirm that your Order address is in line with your shipping address. Please kindly note that the combined shipping is not provided because the shipping fee is calculated by weight. Also, the each additional item means exactly the the same color and size. It takes about 7-15 working days to Australia; about 10-30 working days to other countries. Transit time may be a little delayed because of the bad weather and customs inspection. If you do not receive your item within 30 working days since payment finished, please contact us immediately for further assistance. Payment must be completed within 5 days. If you have any problems about payment, please contact us via ebay message. We strive for 100% customer satisfaction! Positive Feedback is very important to us. If you have any questions, please feel free to contact us via "Ask seller a question" . We will reply your email within 24 working hours.
Un objet dont les mesures ne correspondaient pas à celles annoncées par le fournisseur. Une réponse d’eBay comme quoi les mesures étaient prises de façon manuelles et imprécises, raison de la fausse information, puis remboursement à 10% de la valeur de l’achat et enfin, après échange à nouveau de courriel, remboursement de la totalité de la valeur de l’objet. Donc je donne une évaluation positive car tout cela s’est bien terminé, au prix de nombreux efforts de « faire-valoirs » !!
Le produit reçu n'est pas conforme à la description (la matière n'était pas de la soie glacée, mais une maille ajourée non glacée)un accord à été trouvé avec le vendeur pour un remboursement partiel de 35%
bonjour marchandise bien reçu belle finition et fonctionne bien merci je recommande vivement ce vendeur cordialement
