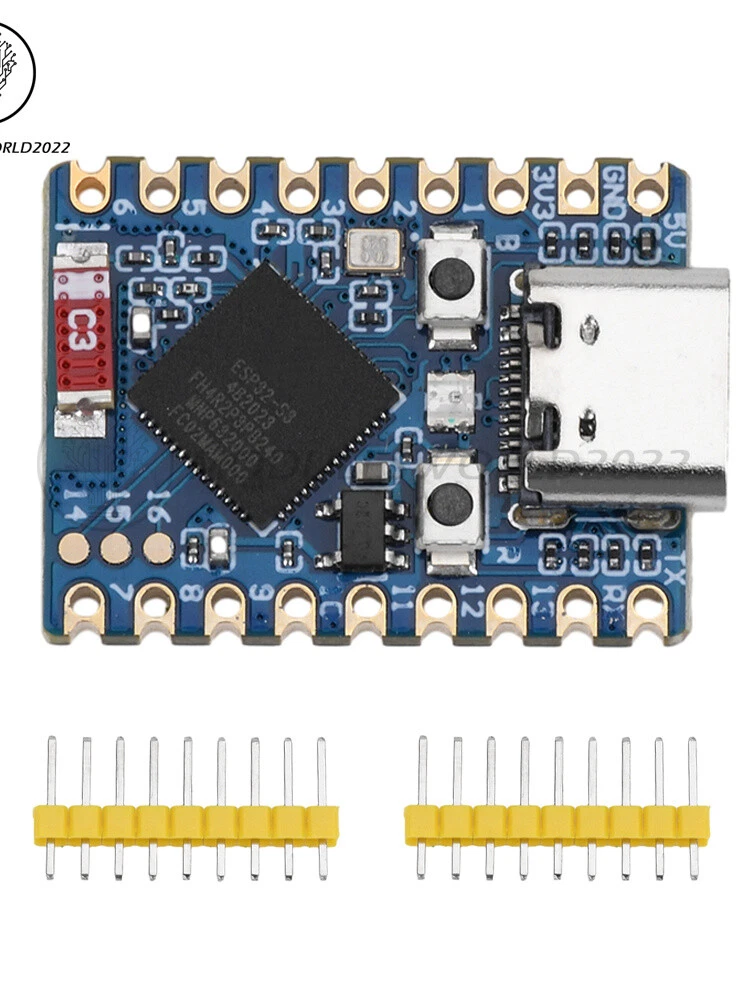

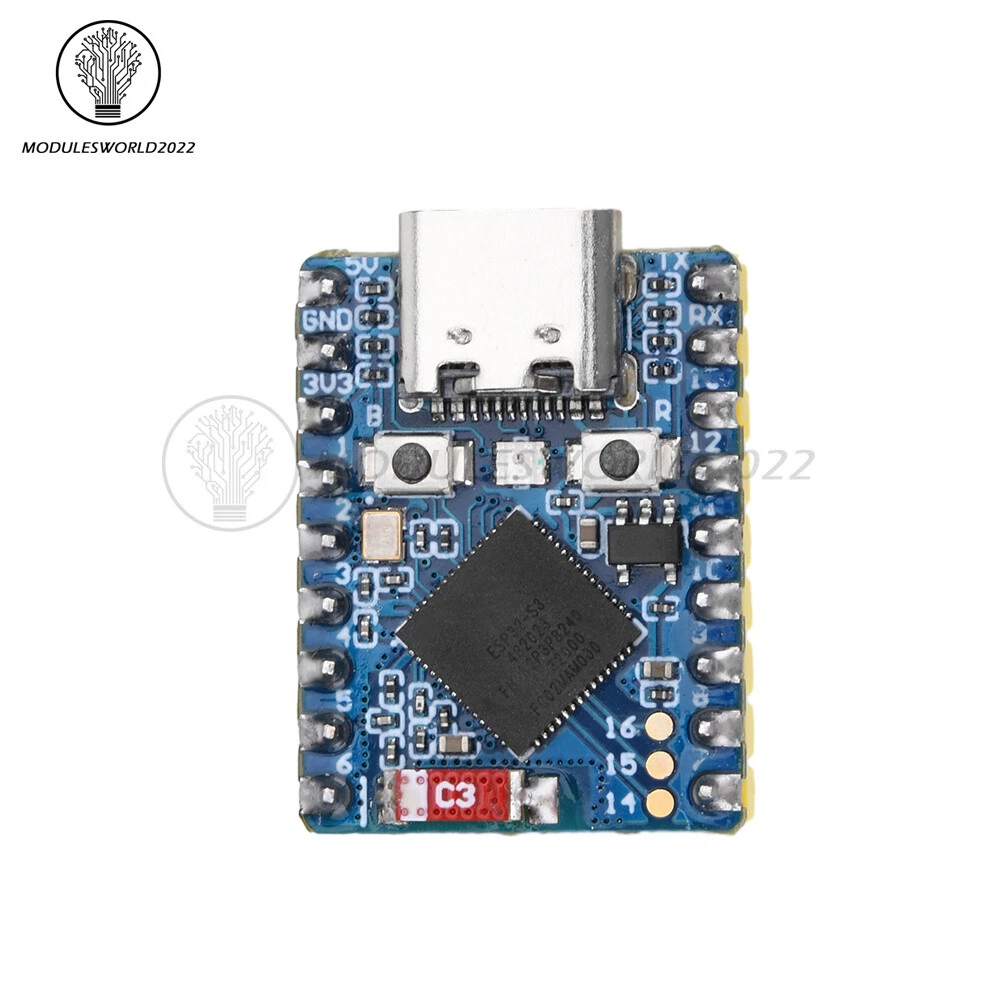

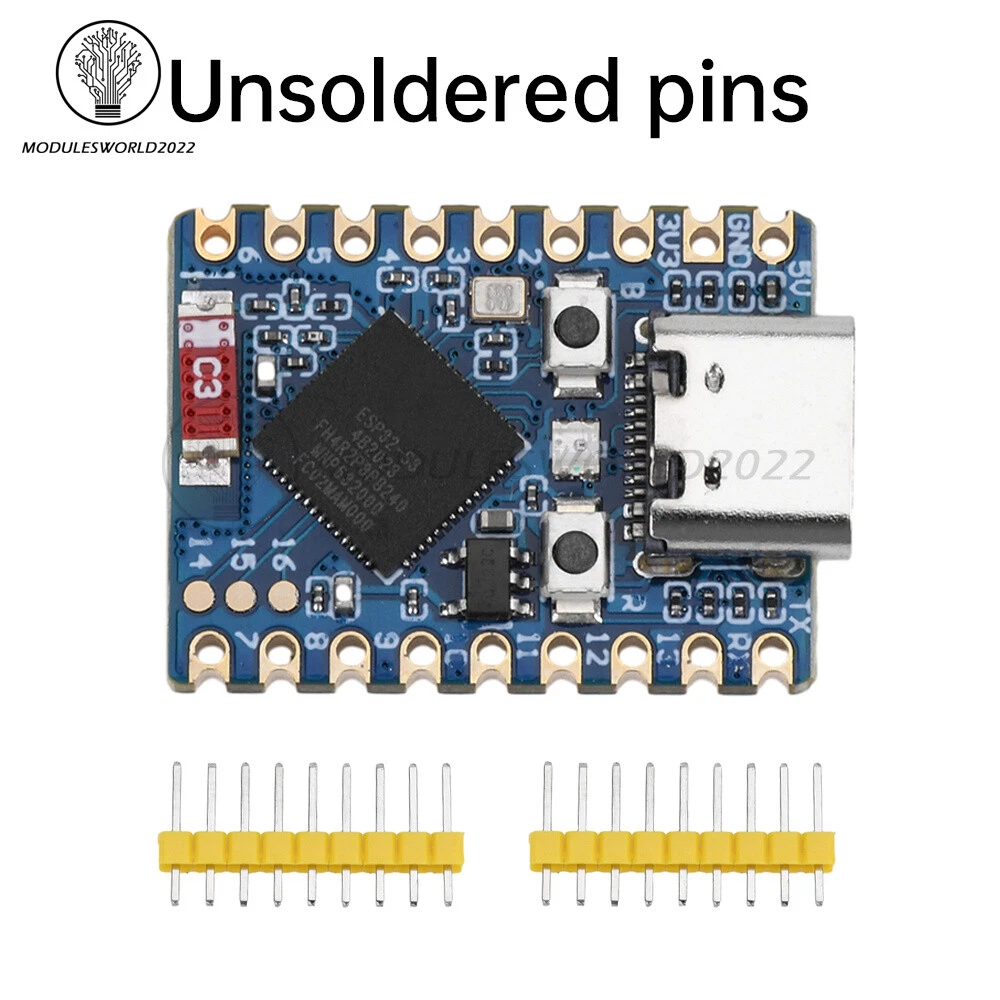

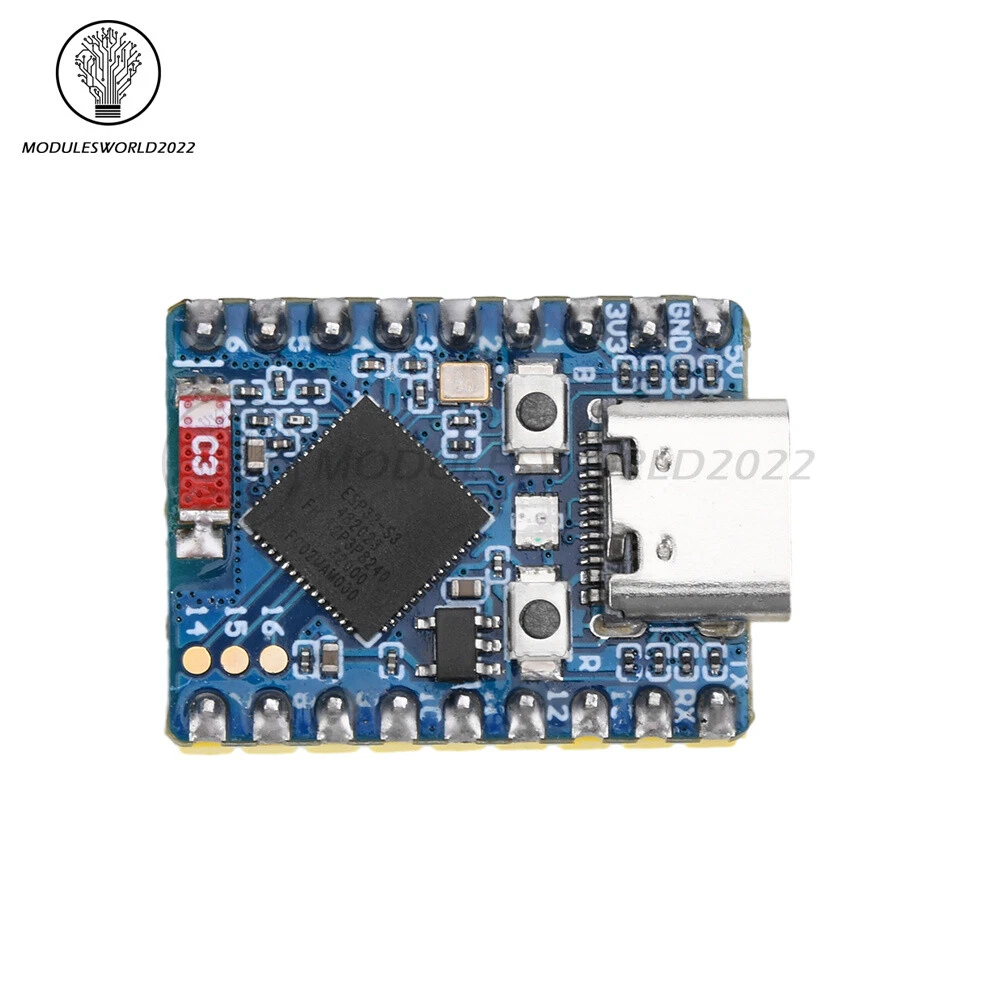

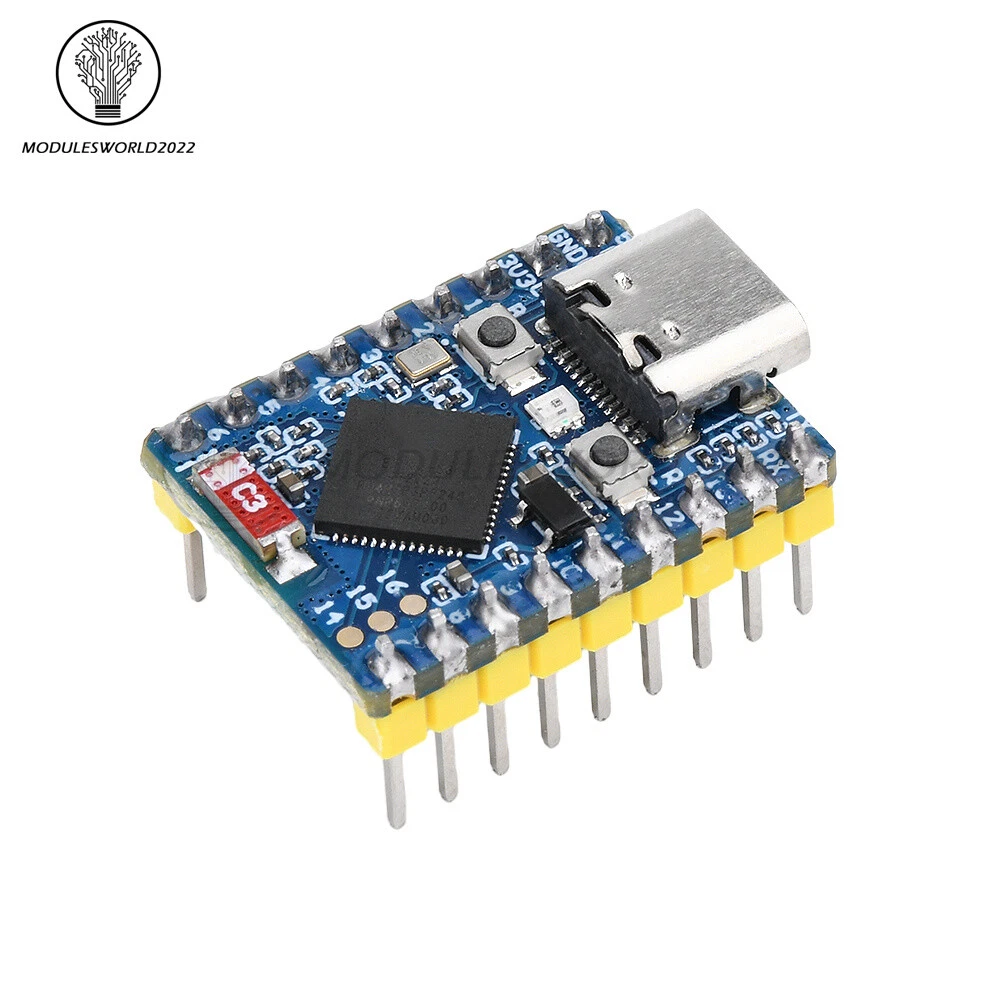

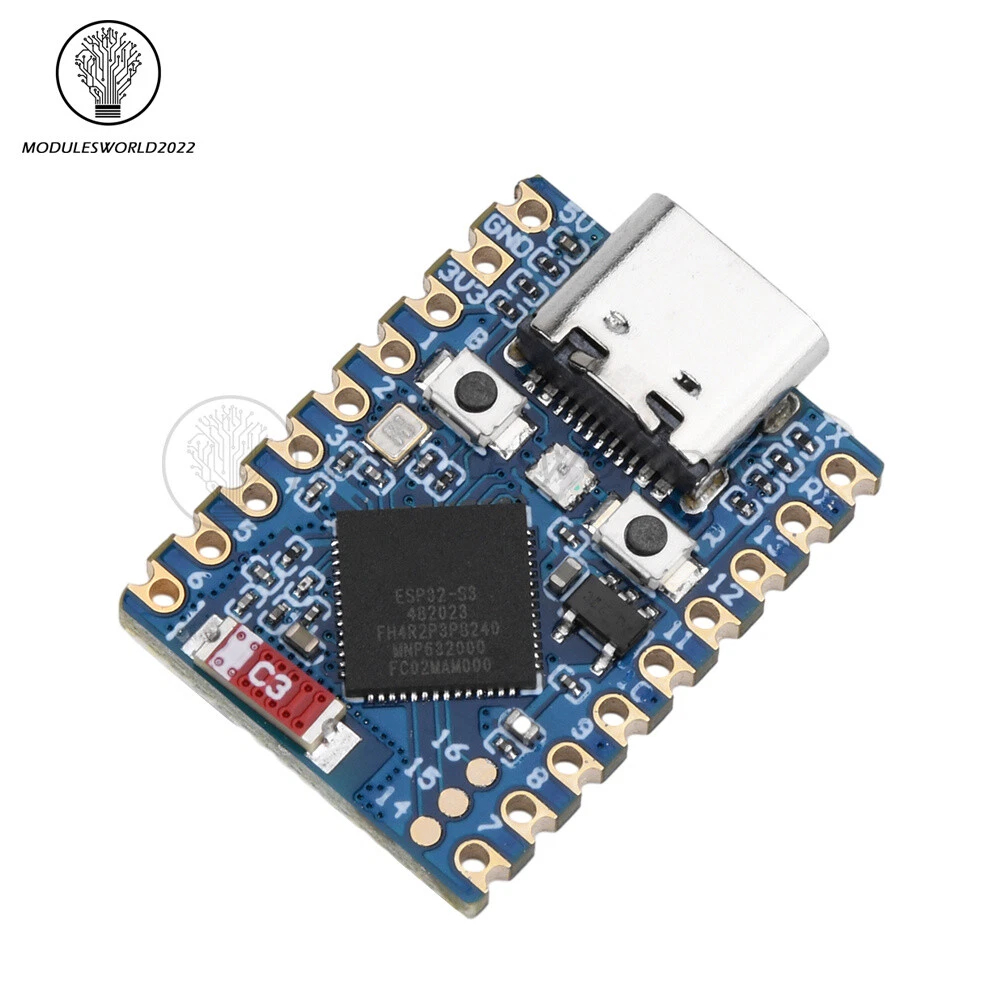

ESP32-S3 Mini WIFI Bluetooth Development Board Dual Core FH4R2 Module Type-C US
$ 5.28
Description

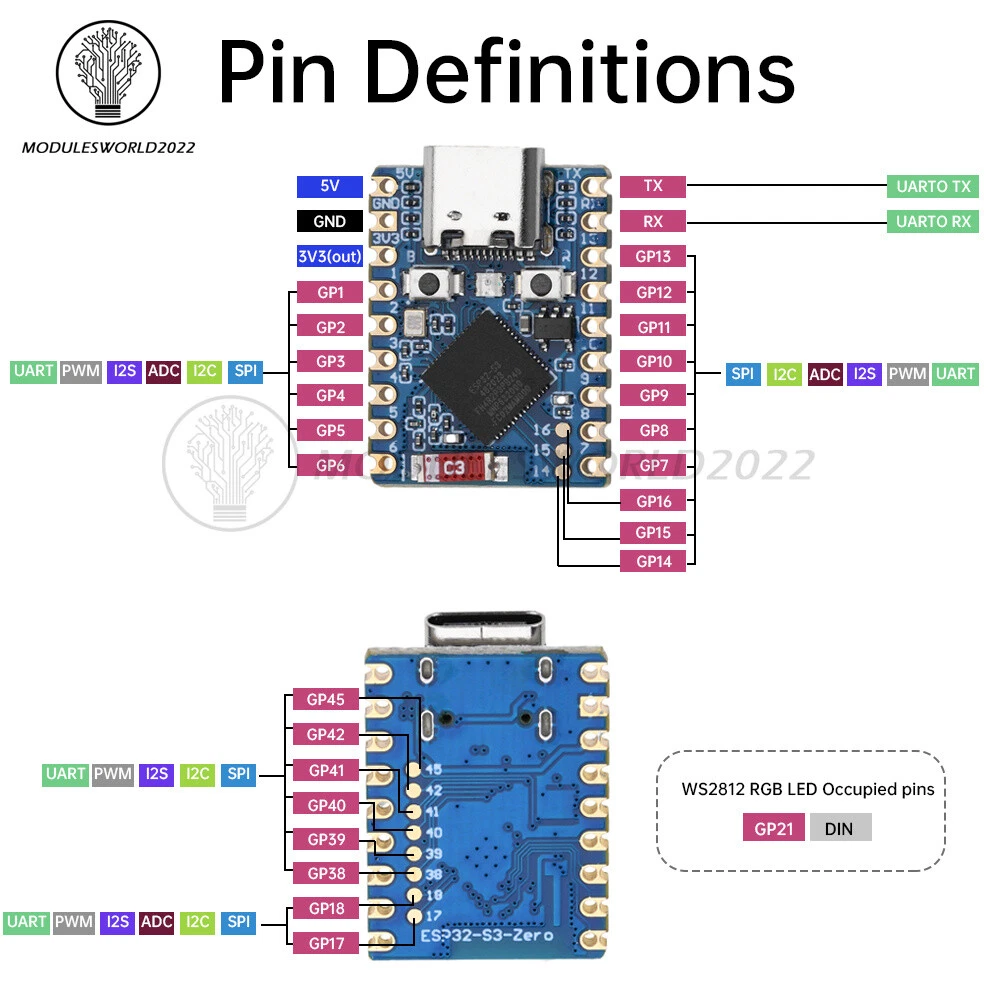

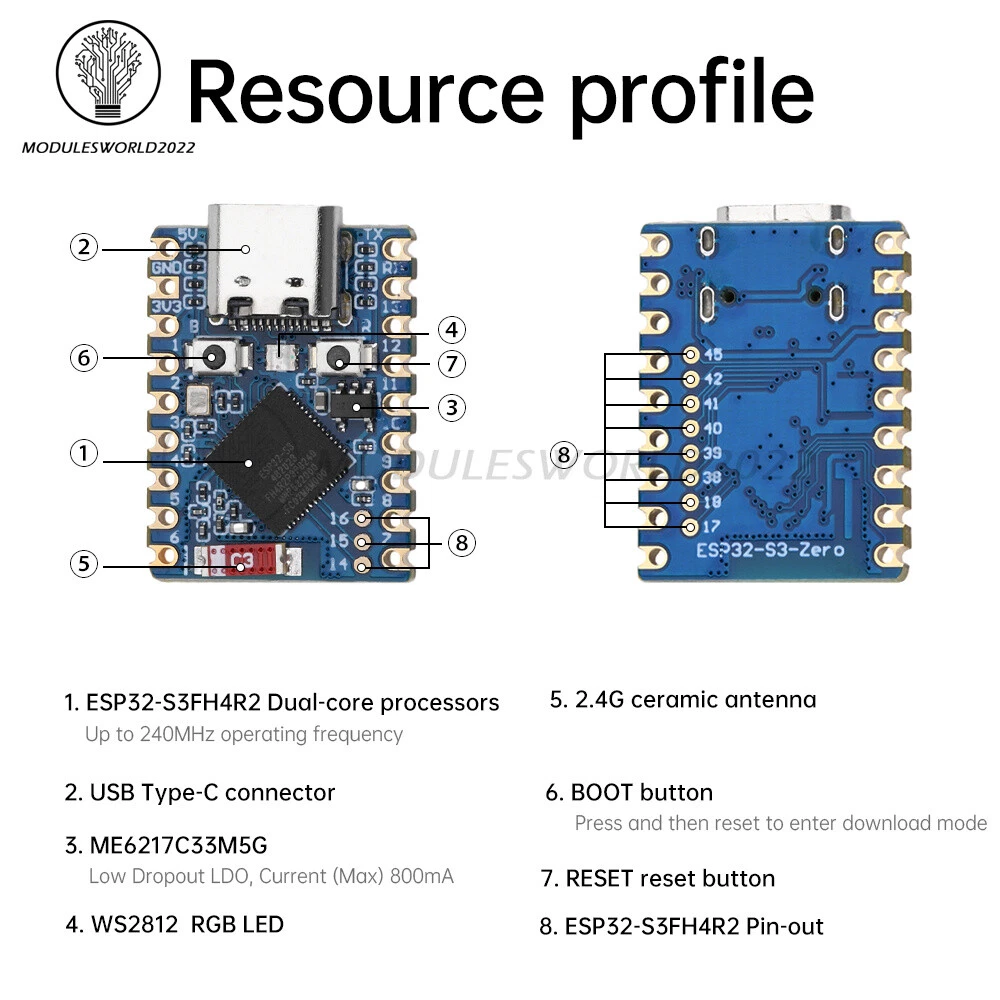

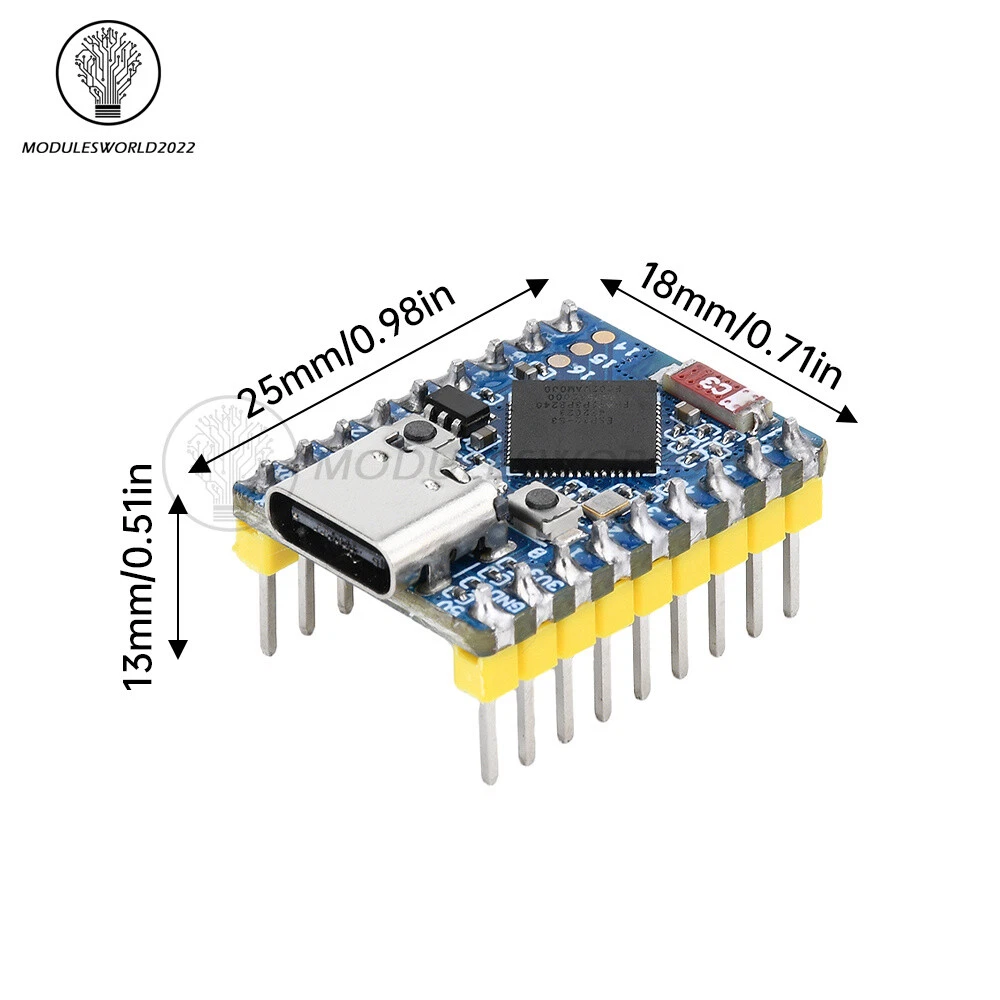

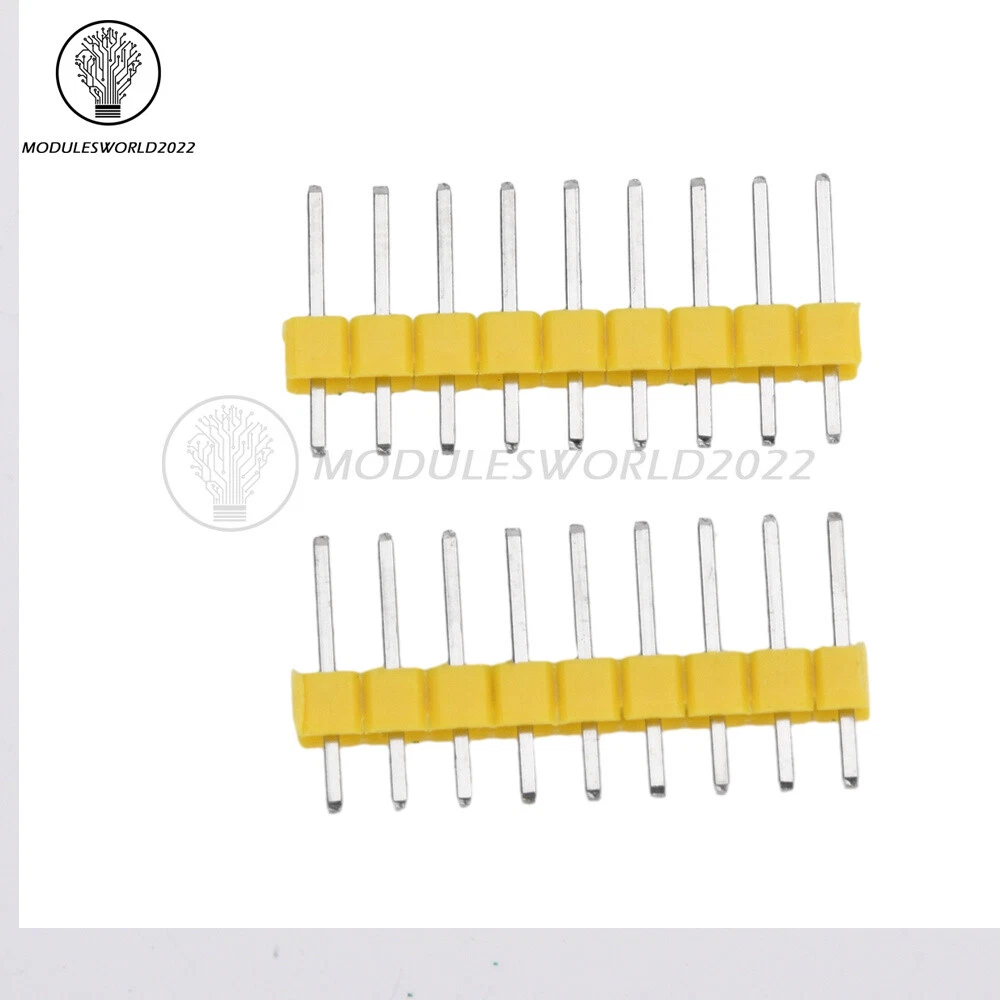

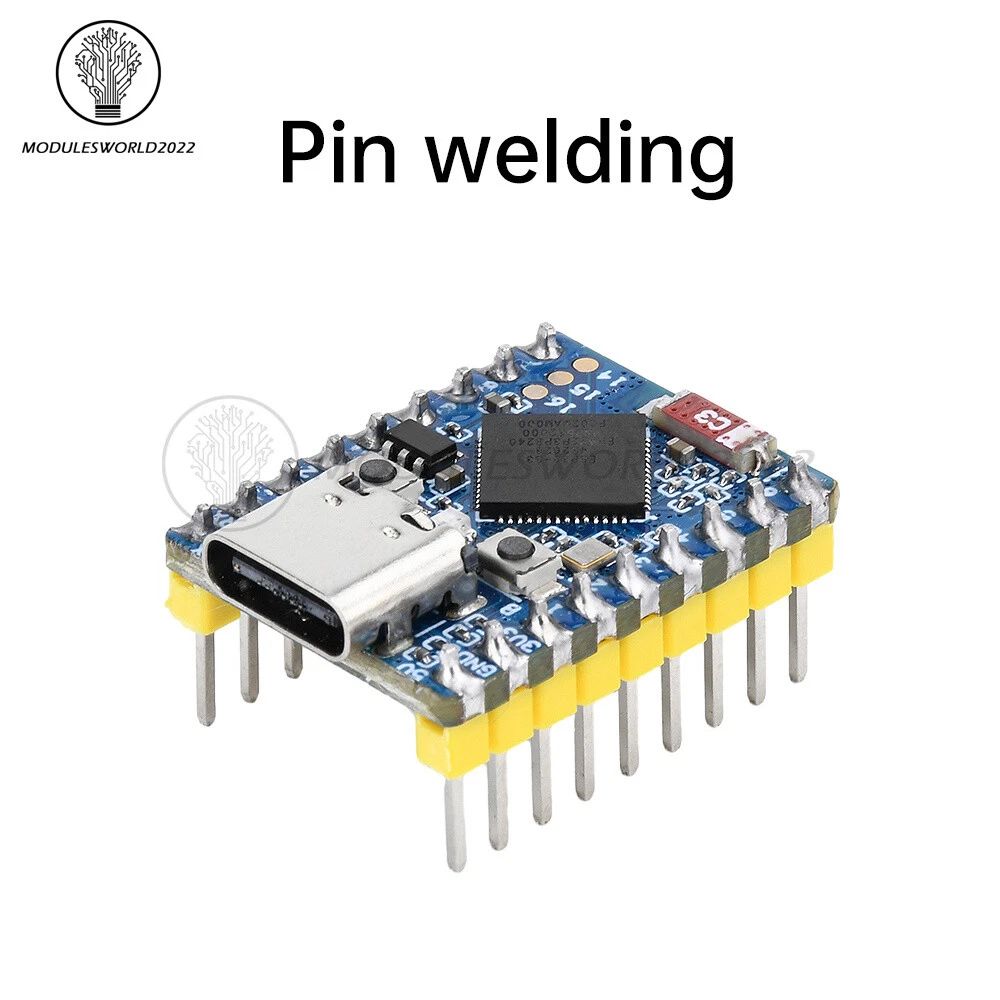

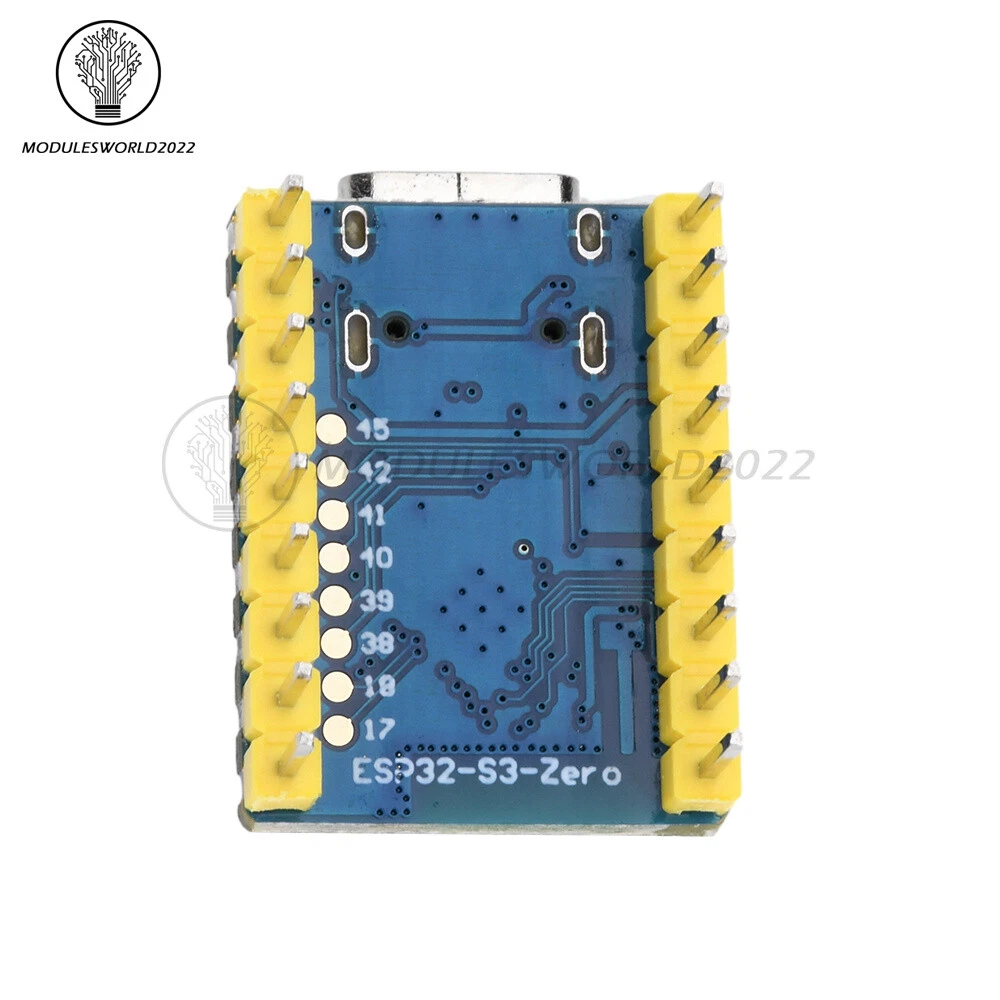

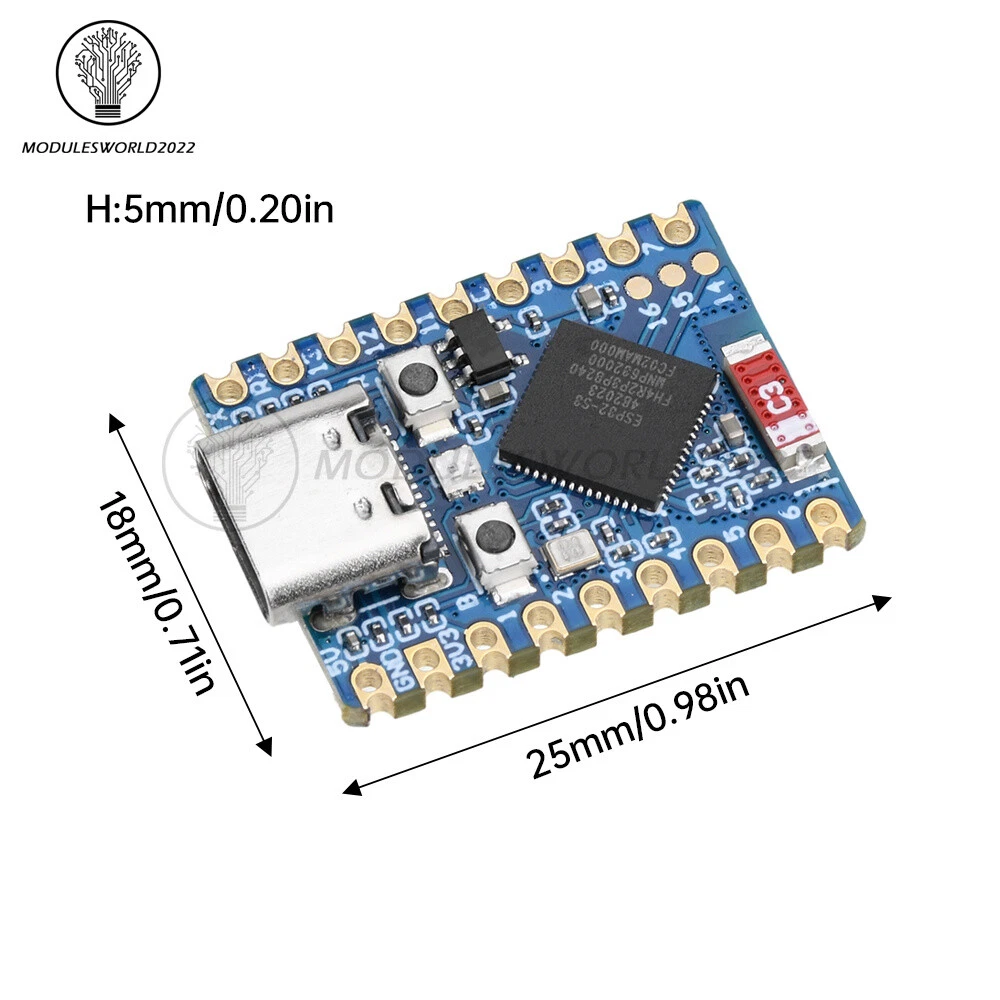

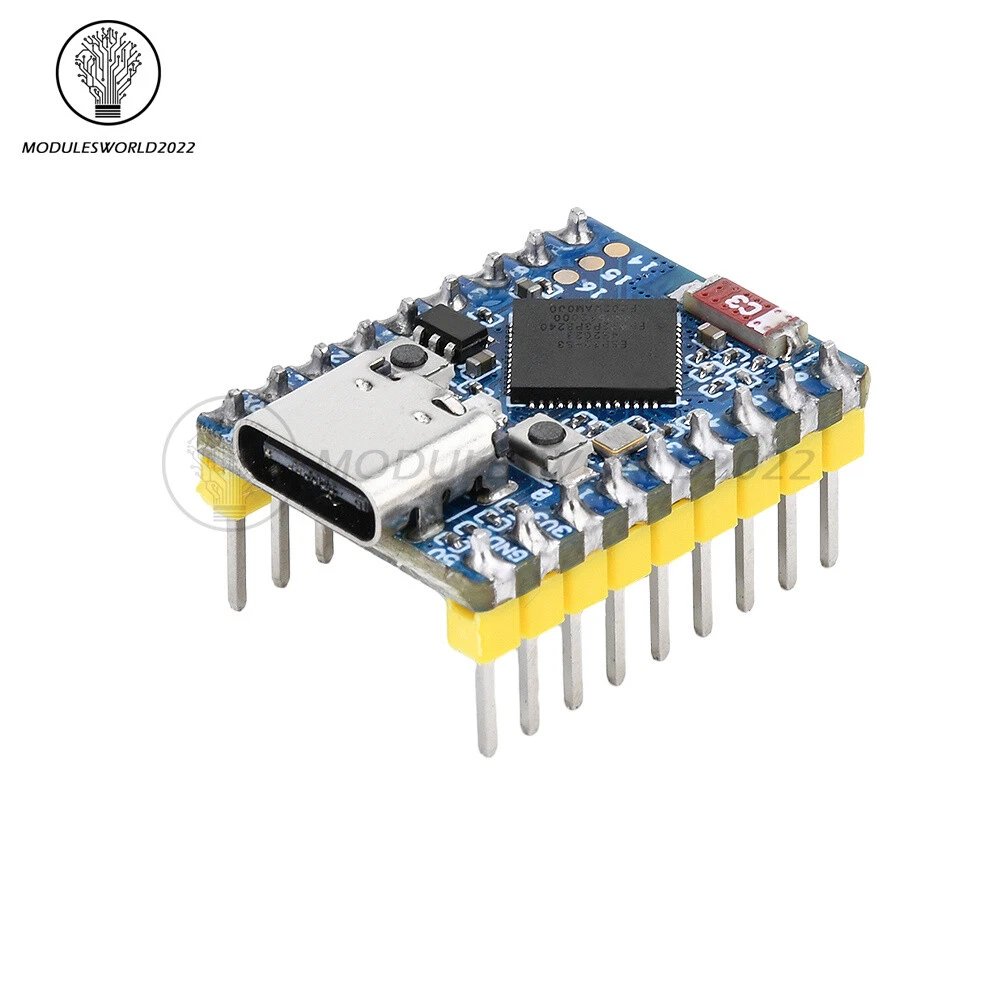

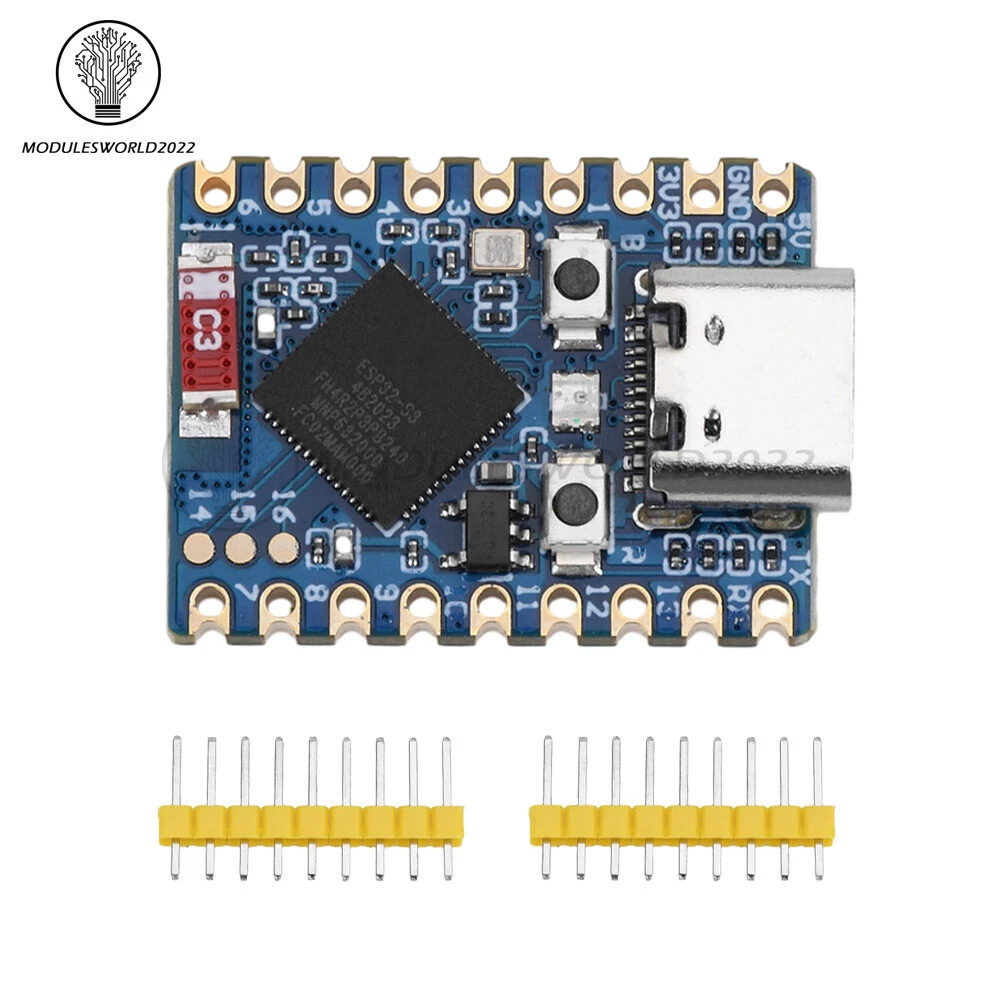

Store Categories Store Categories Other Product View Details Features 1. Equipped with high-performance Xtensa® 32-bit LX7 dual-core processor with 240MHz. 2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bt® 5 (LE). 3. Built-in 512KB SRAM and 384KB ROM, stacked with 4MB Flash and 2MB PSRAM. 4. Adopting stamp hole design and on-board ceramic antenna, easy to integrate into user-designed backplane. 5. Support flexible clock, module power supply separate settings and other controls, to achieve multi-scenario low-power mode. 6. Integrated USB serial port full-speed controller, leading to 34 GPIO can be flexibly configured peripheral functions. 7. With 4xSPI, 2xI2C, 3xUART, 2xI2S, 2xADC and other peripherals. 8. Based on ESP32-S3 FH4R2, pin out most of the pins under small board type, using half-hole process, can be soldered on customized board. Specification Processor: ESP32-S3 FH4R2 dual-core processor, up to 240MHz operating frequency Interface: USB Type-C interface Current: (Max) 800mA Antenna: 2.4G ceramic antenna Button: BOOT button, press and then press reset to enter download mode. RESET reset button LED:WS2812 Cool RGB LED Size: 23.5*18mm List 1 x Development Board 2 x Pin Header (Soldering or unsoldering optional) Shipping Policy Payment Method Returns Policy Shipping Policy Payment Method Returns Policy Home Payment Shipping About us Contact us Copyright©2018 datacaciques Home Payment Shipping About us Contact us Store Categories Store Categories Other Product View Details Features 1. Equipped with high-performance Xtensa® 32-bit LX7 dual-core processor with 240MHz. 2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bt® 5 (LE). 3. Built-in 512KB SRAM and 384KB ROM, stacked with 4MB Flash and 2MB PSRAM. 4. Adopting stamp hole design and on-board ceramic antenna, easy to integrate into user-designed backplane. 5. Support flexible clock, module power supply separate settings and other controls, to achieve multi-scenario low-power mode. 6. Integrated USB serial port full-speed controller, leading to 34 GPIO can be flexibly configured peripheral functions. 7. With 4xSPI, 2xI2C, 3xUART, 2xI2S, 2xADC and other peripherals. 8. Based on ESP32-S3 FH4R2, pin out most of the pins under small board type, using half-hole process, can be soldered on customized board. Specification Processor: ESP32-S3 FH4R2 dual-core processor, up to 240MHz operating frequency Interface: USB Type-C interface Current: (Max) 800mA Antenna: 2.4G ceramic antenna Button: BOOT button, press and then press reset to enter download mode. RESET reset button LED:WS2812 Cool RGB LED Size: 23.5*18mm List 1 x Development Board 2 x Pin Header (Soldering or unsoldering optional) Shipping Policy Payment Method Returns Policy Shipping Policy We will arrange shipping for you within 24 Hours after payment cleared except the holidays. -We ship items to Worldwide. Thank you! -we will ship out the order in 1-2 business days after payment cleared .Since it is international shipping ,delivery time is about 15--28 business days to arrive to most countries. Payment Method We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Returns Policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests.
