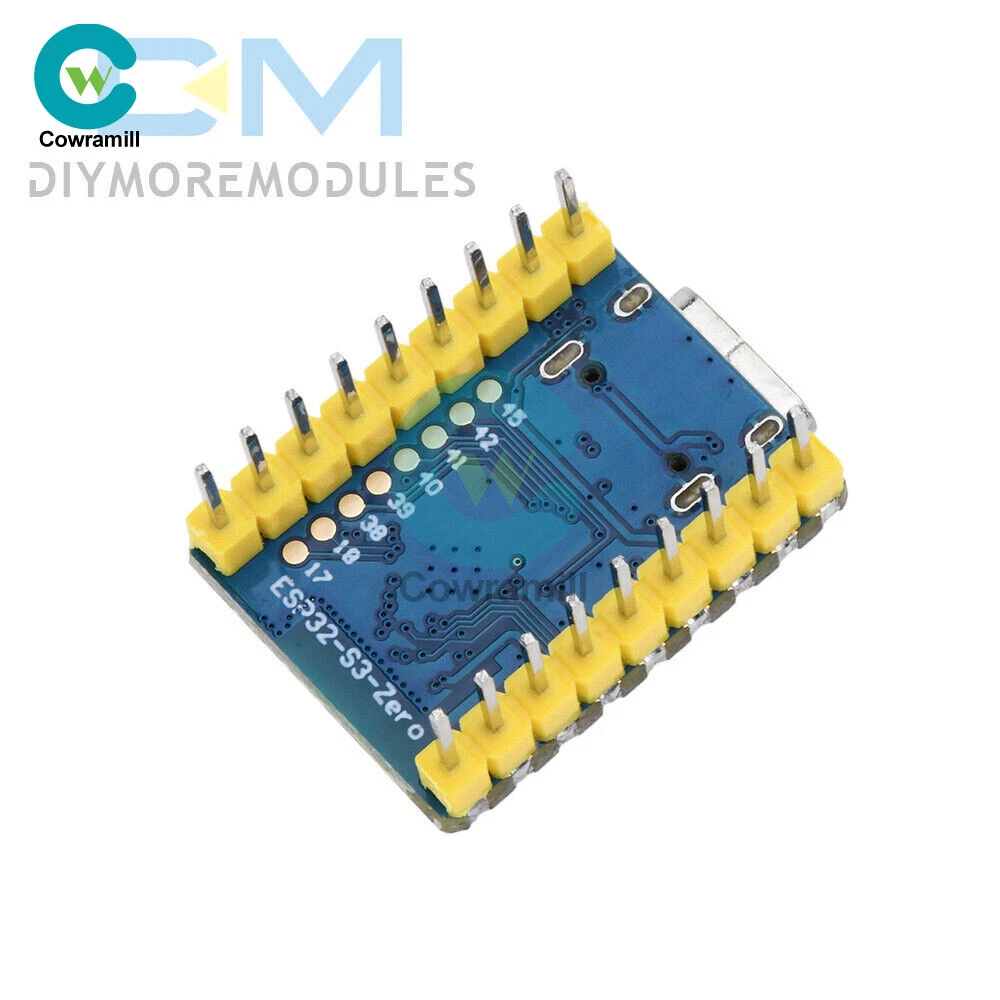

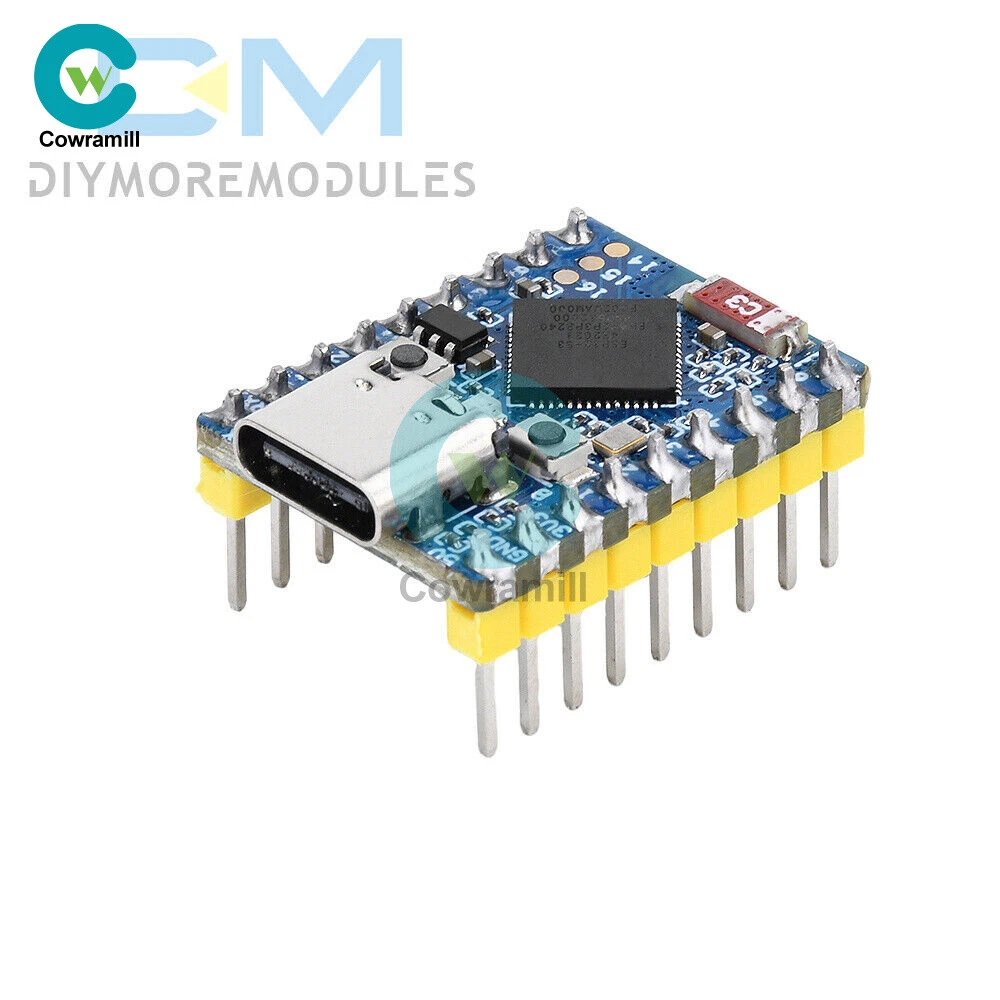

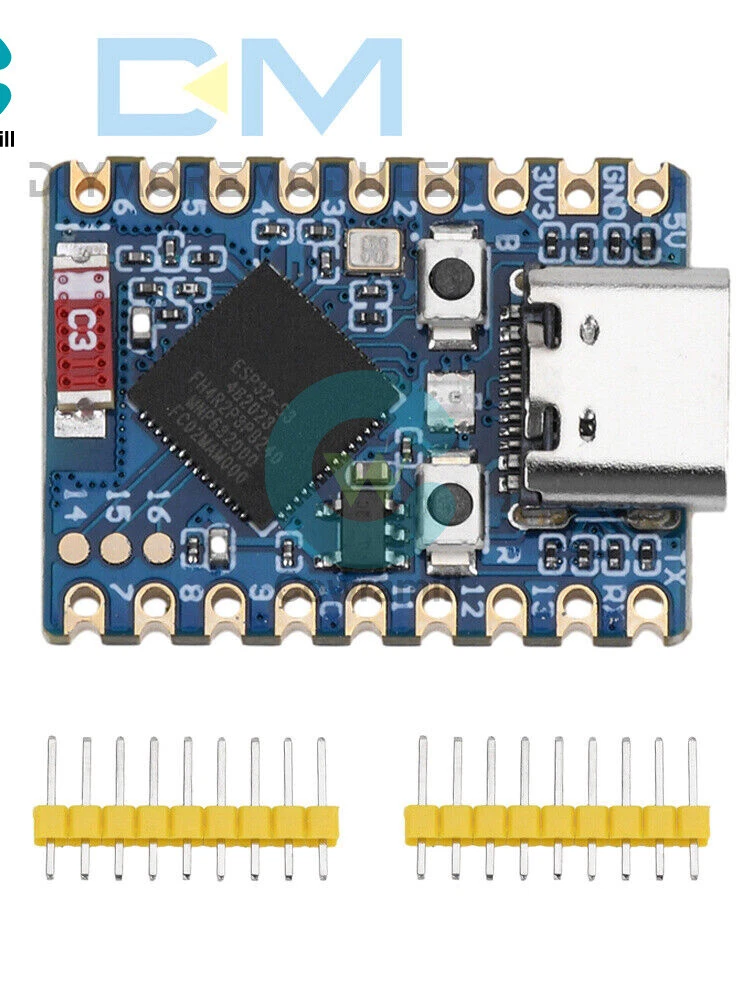

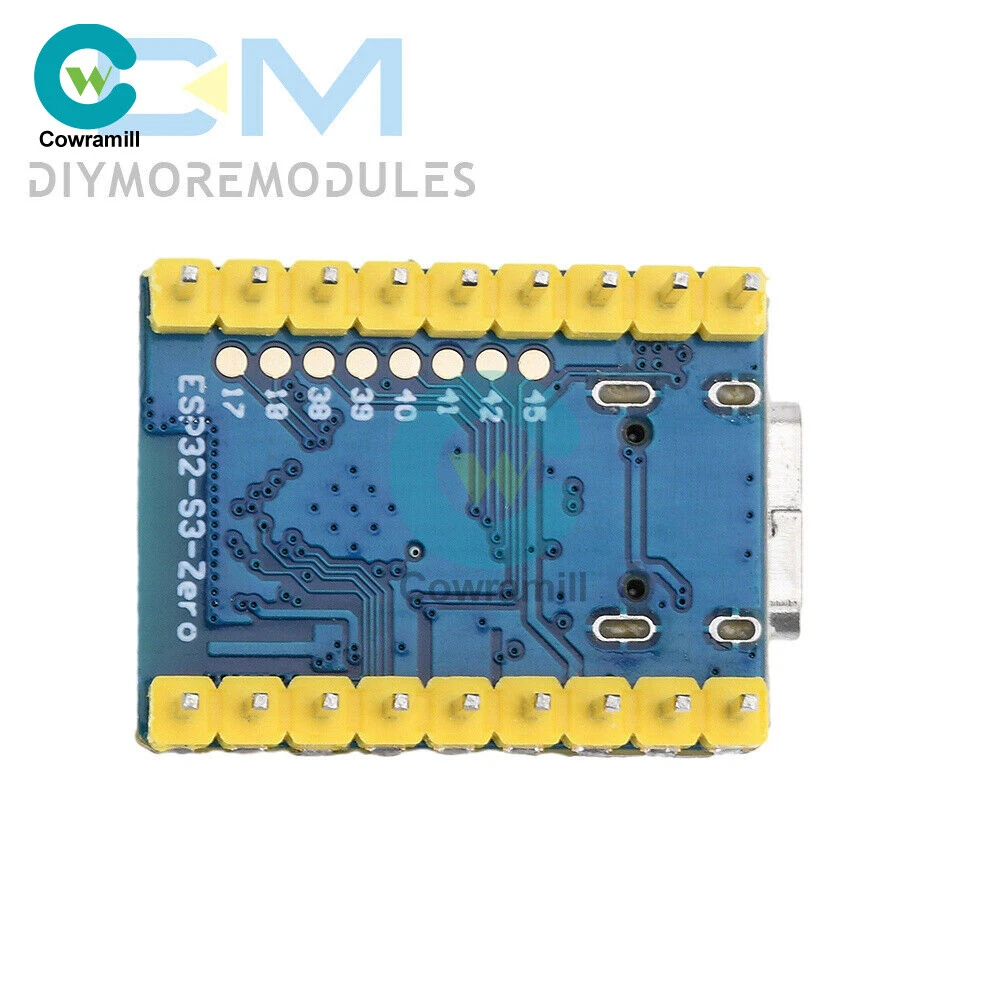

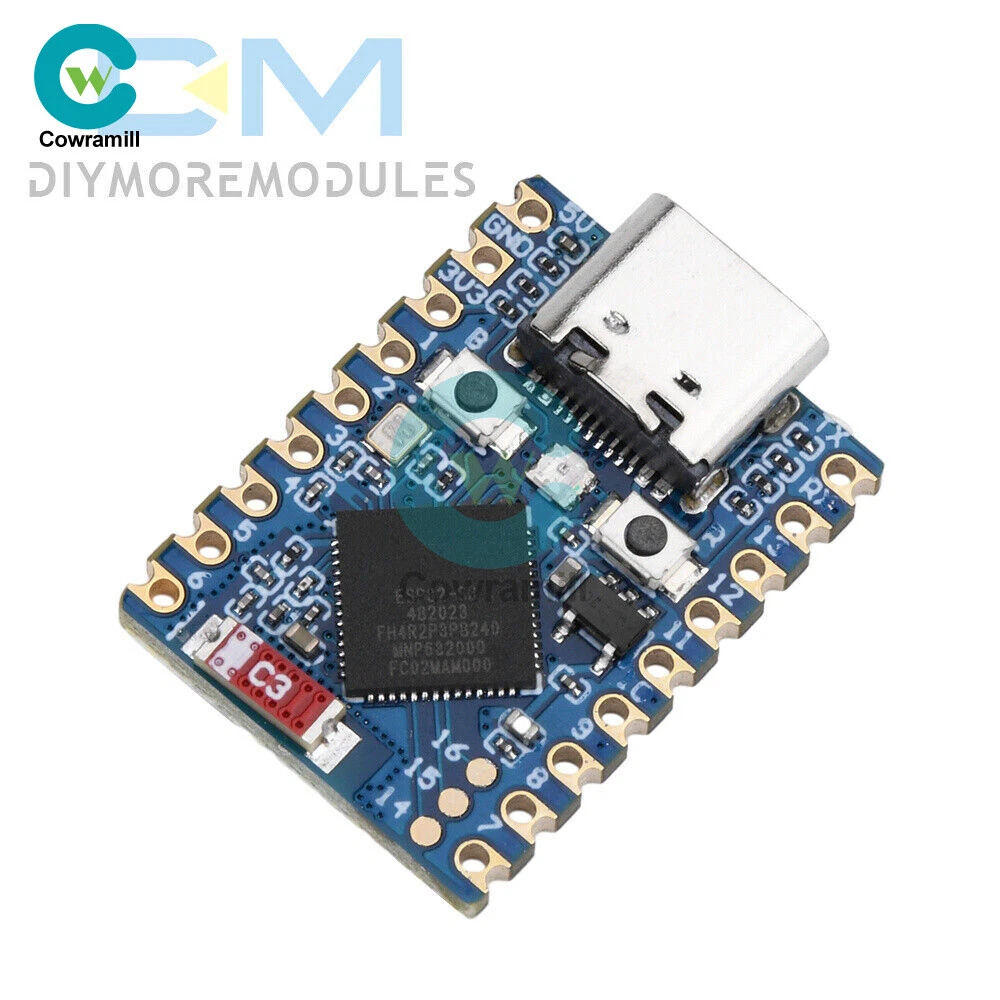

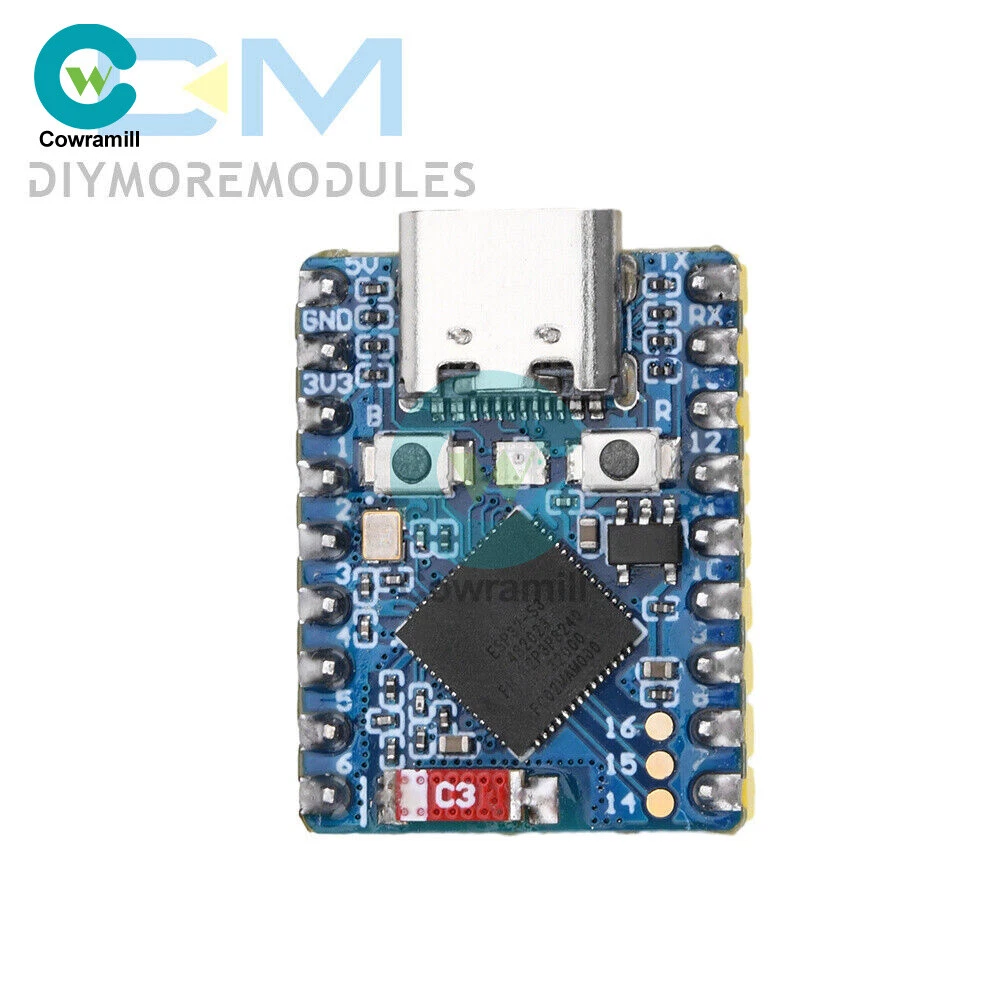

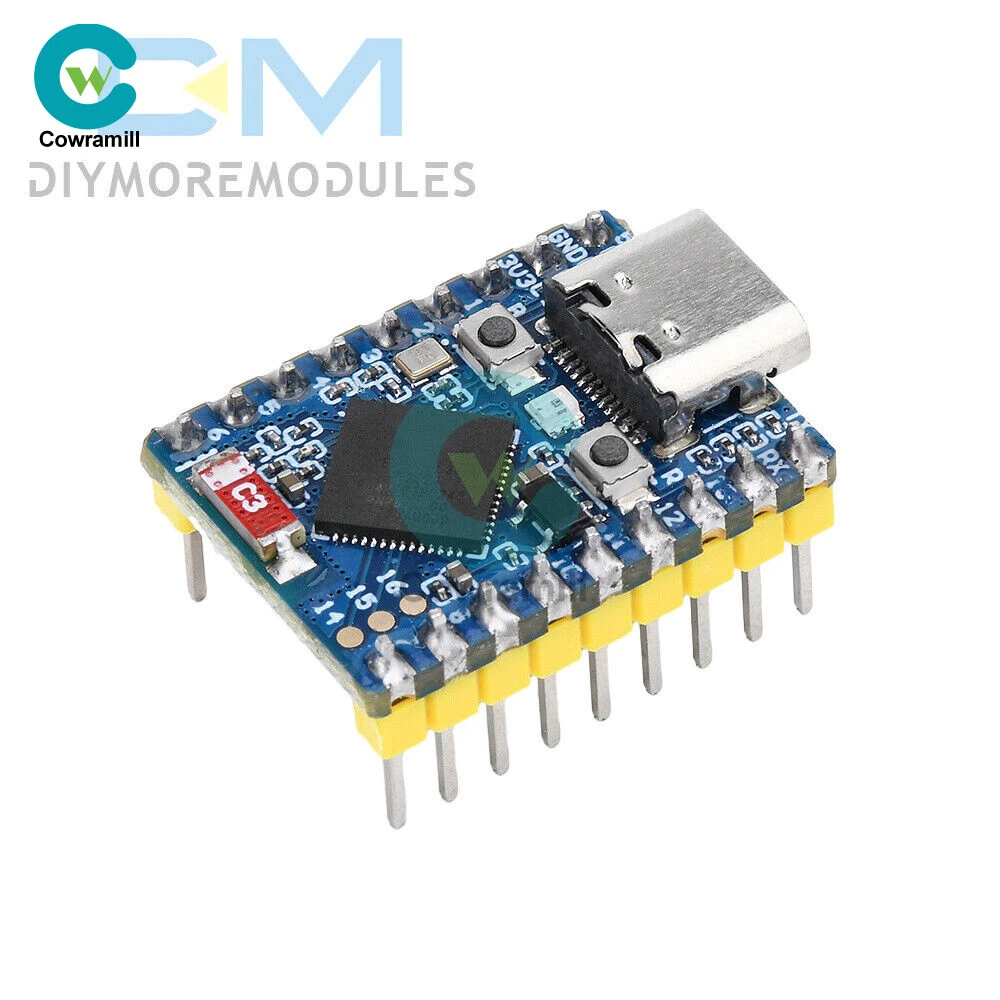

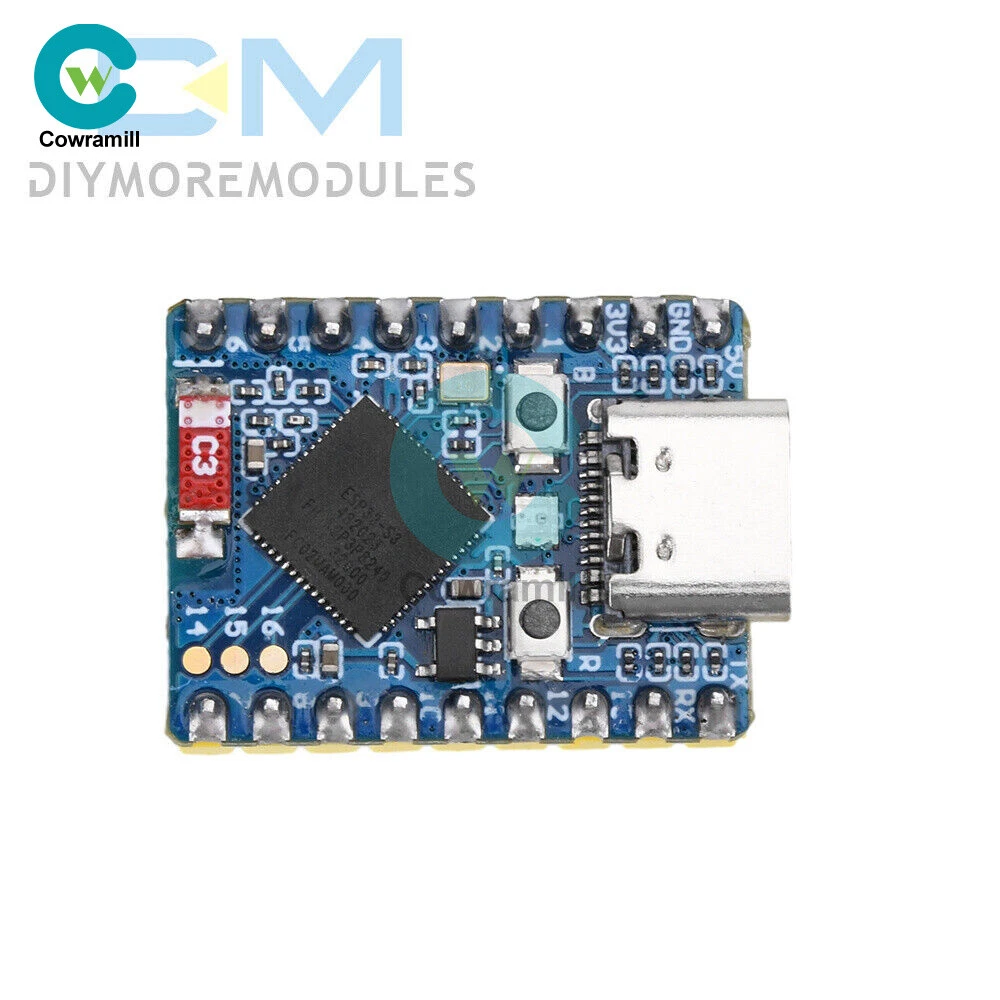

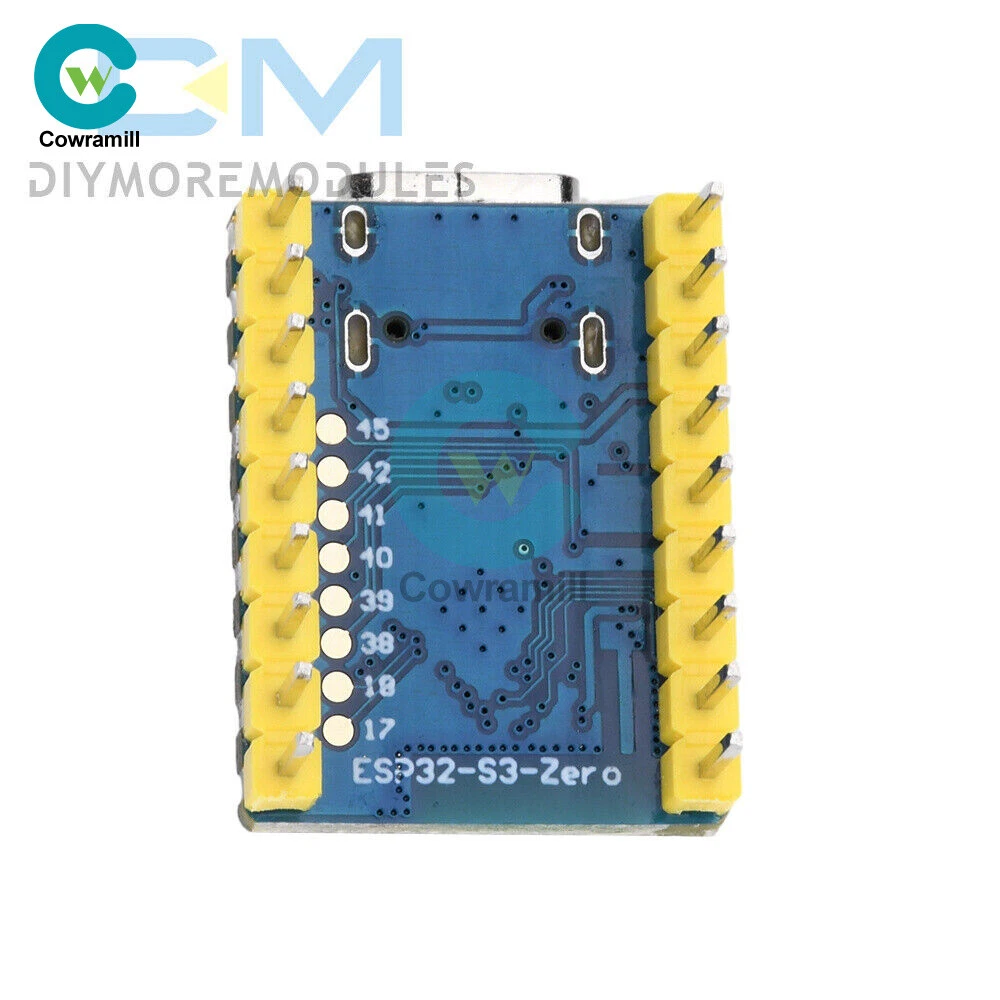

ESP32-S3 Mini WIFI Bluetooth Development Board Dual Core FH4R2 Module Type-C DIY
$ 2.81
Description

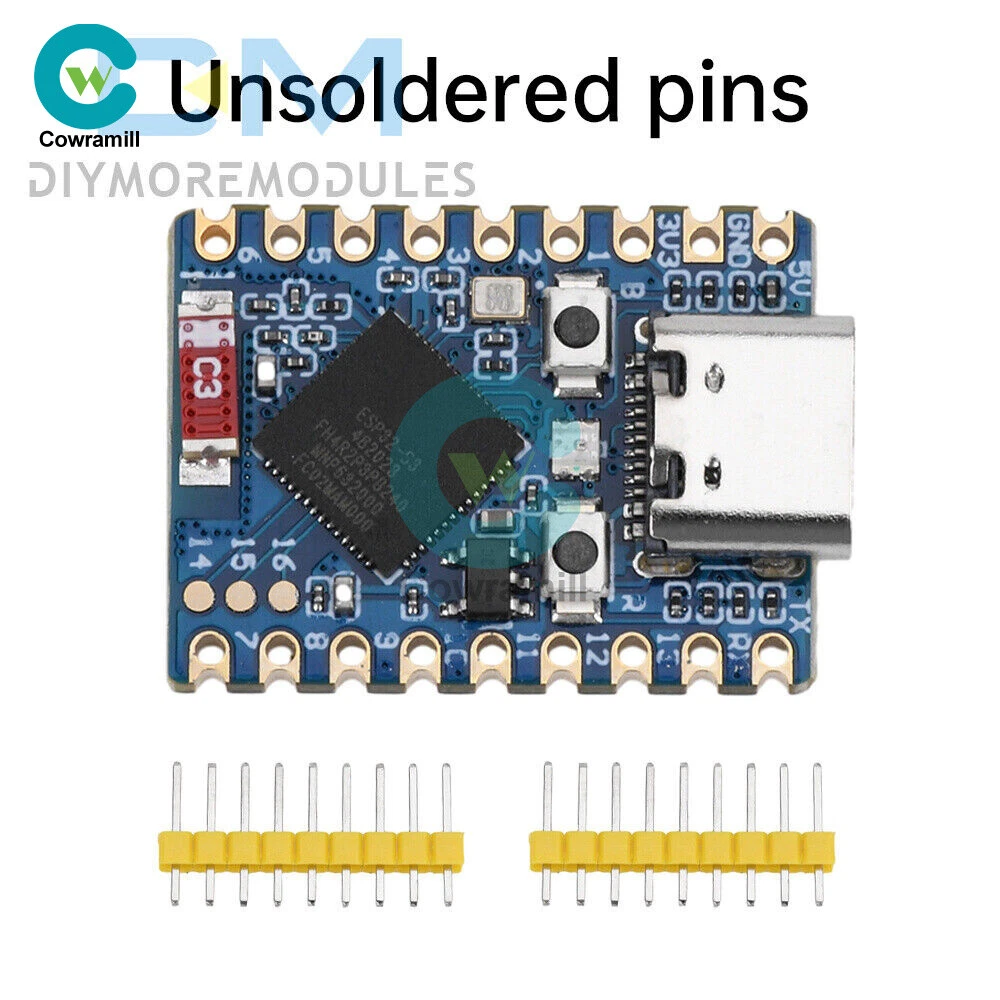

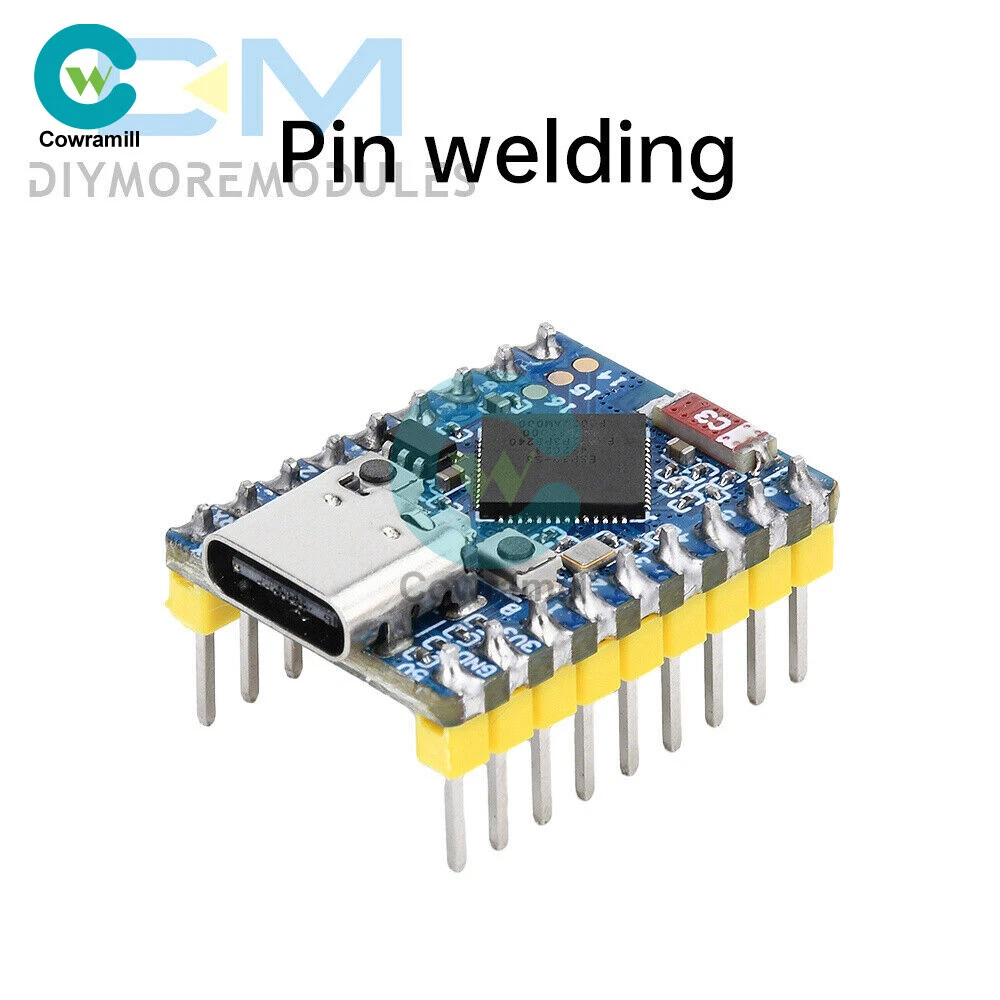

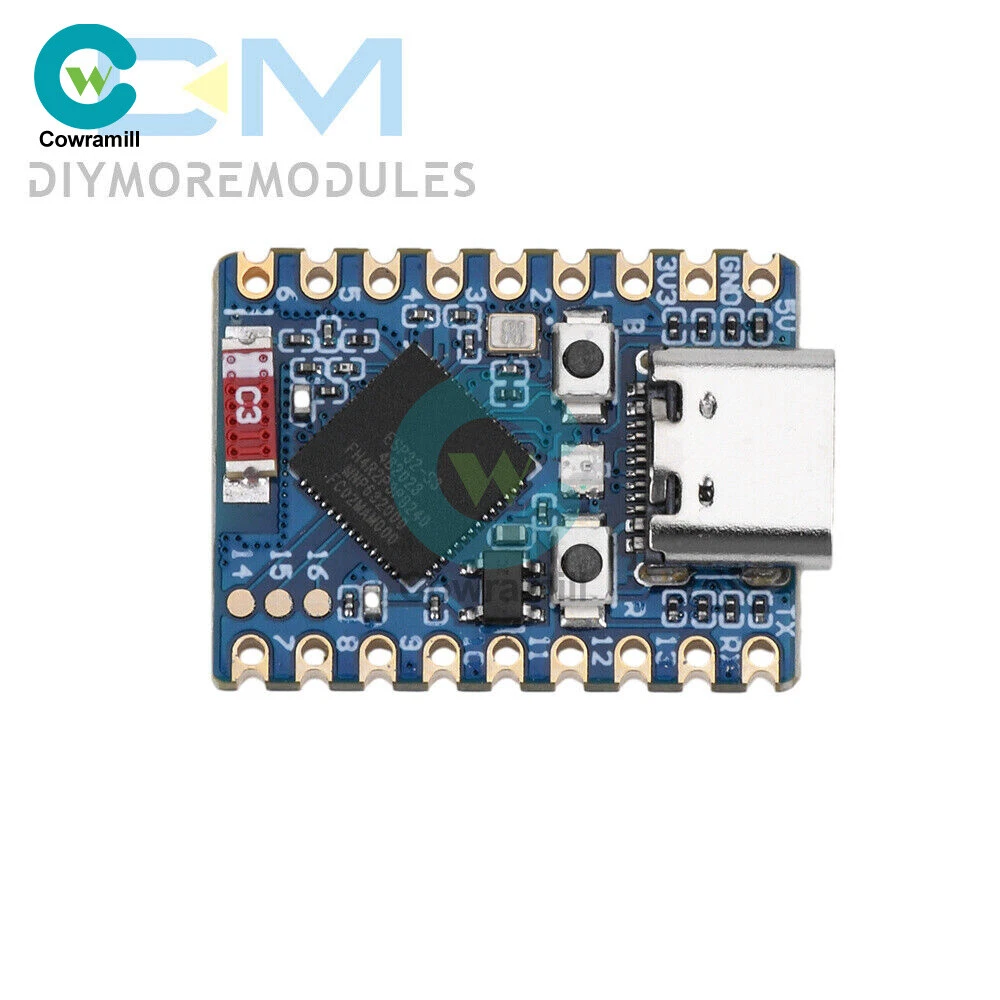

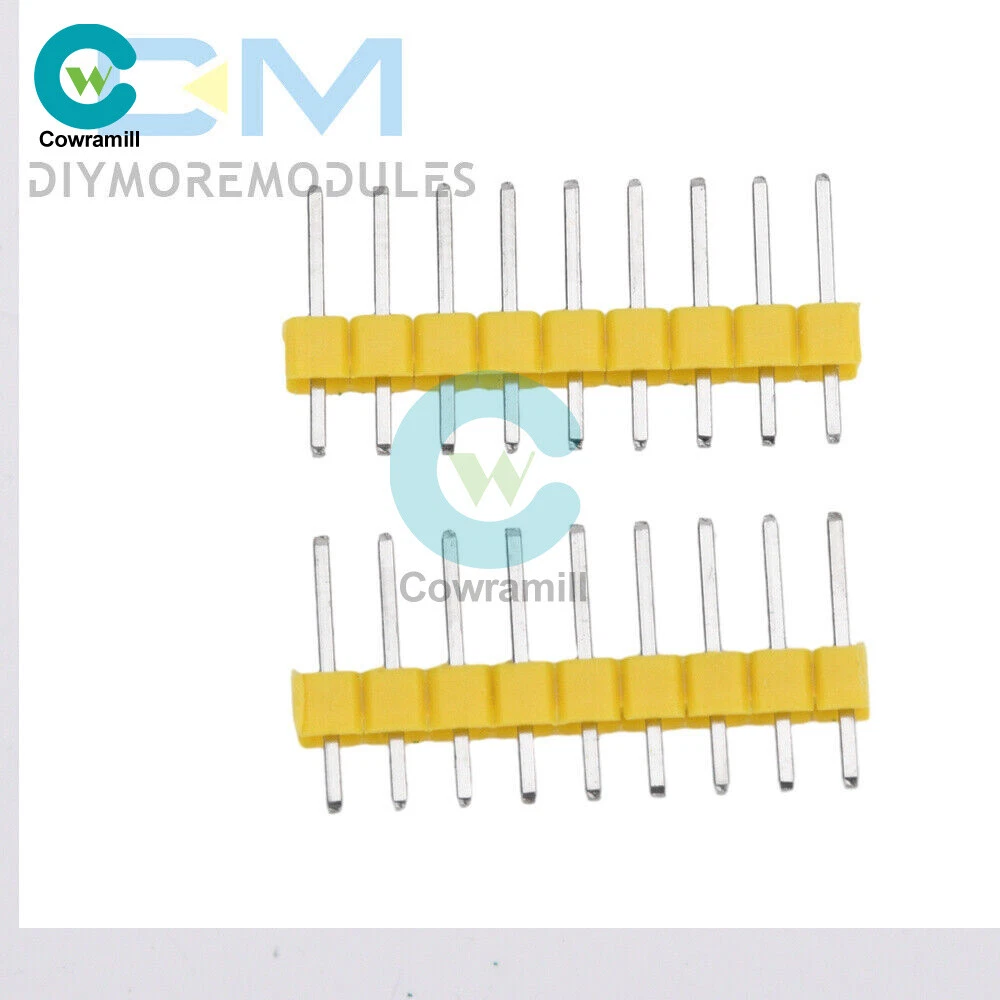

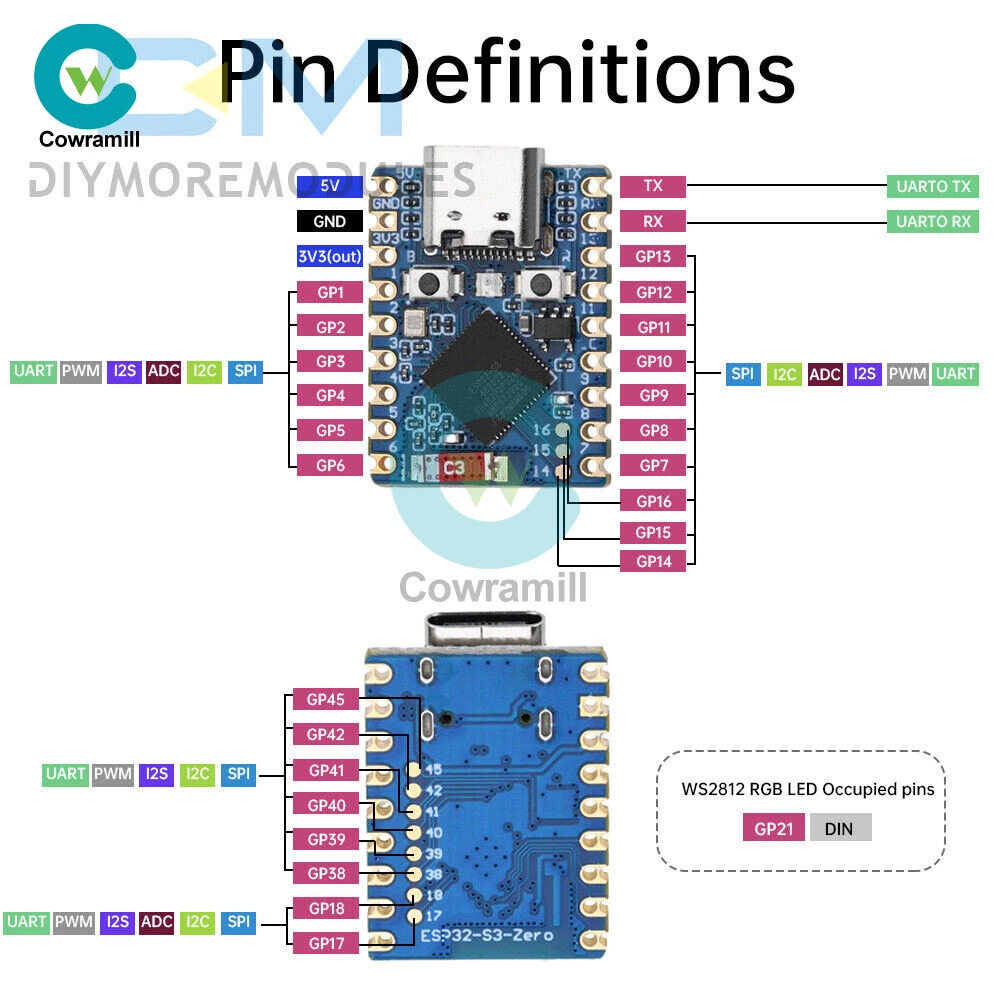

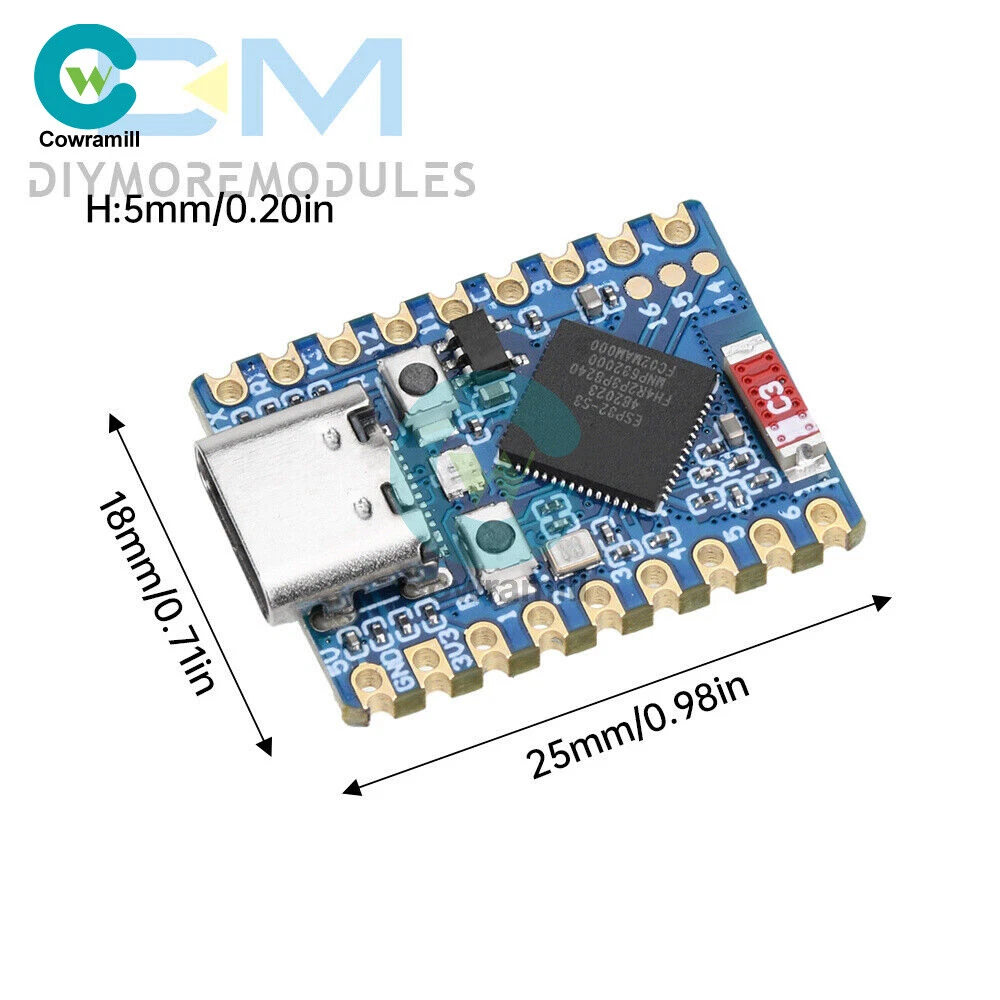

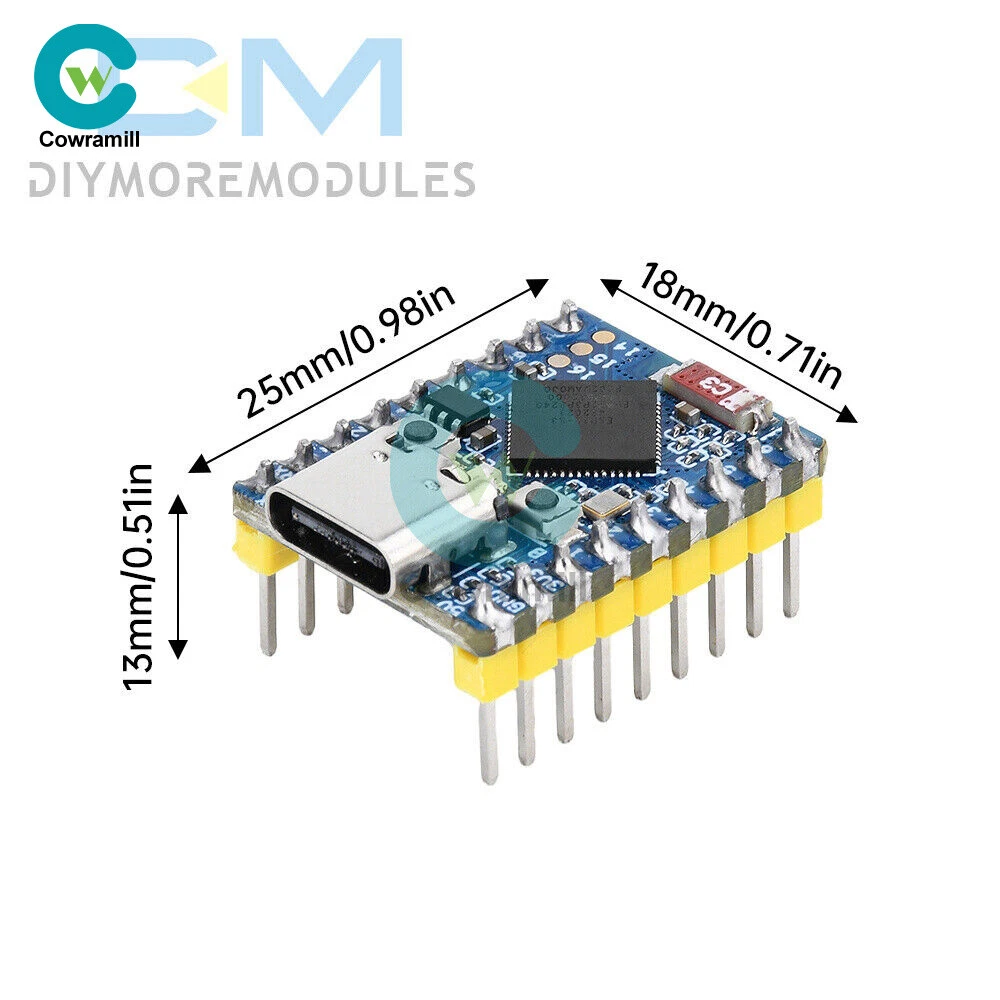

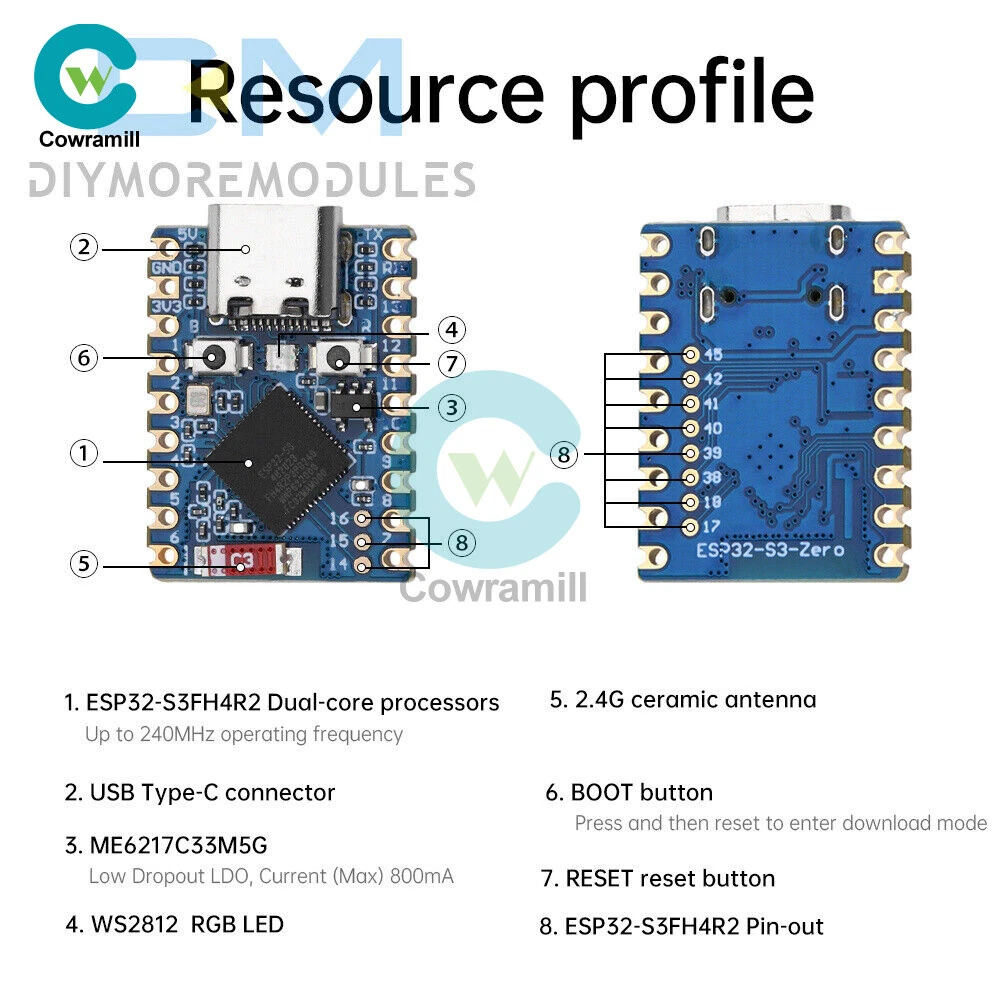

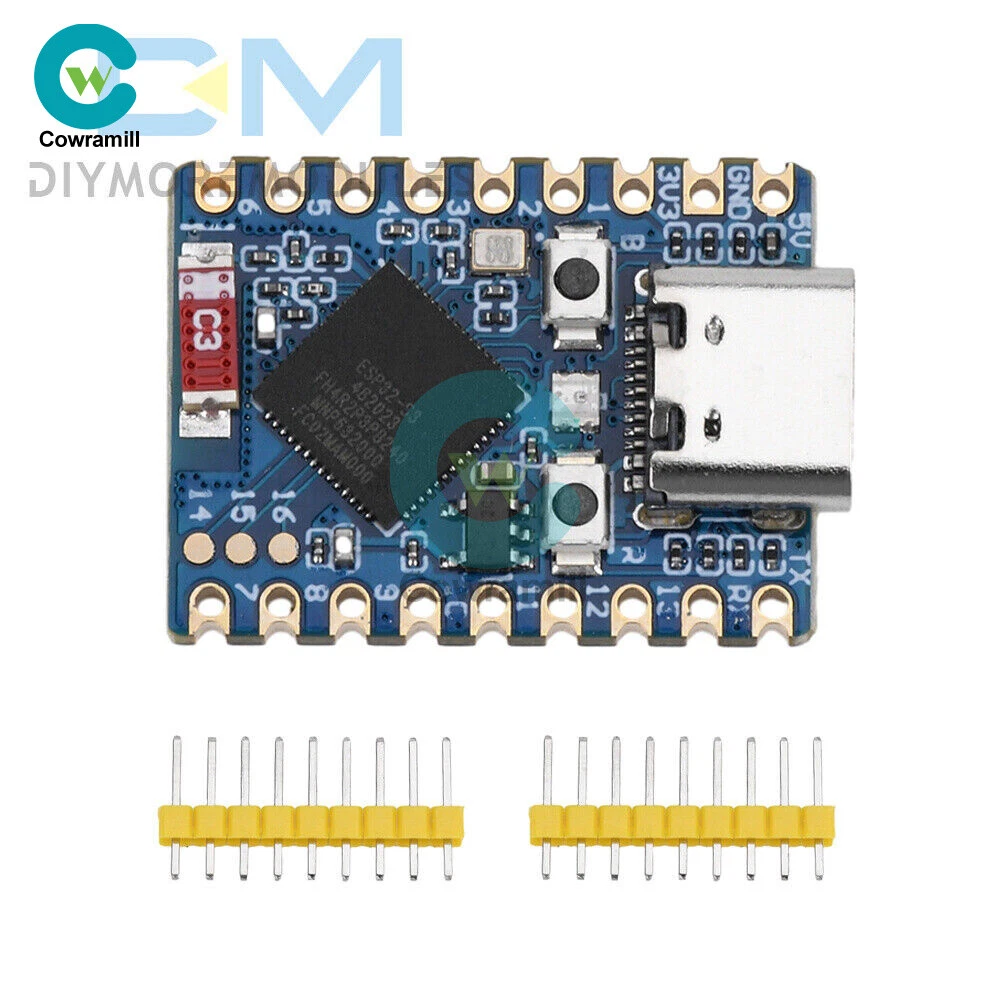

Home Arduino Module Sensor Chips About Us Item Description Features 1. Equipped with high-performance Xtensa® 32-bit LX7 dual-core processor with 240MHz. 2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bt® 5 (LE). 3. Built-in 512KB SRAM and 384KB ROM, stacked with 4MB Flash and 2MB PSRAM. 4. Adopting stamp hole design and on-board ceramic antenna, easy to integrate into user-designed backplane. 5. Support flexible clock, module power supply separate settings and other controls, to achieve multi-scenario low-power mode. 6. Integrated USB serial port full-speed controller, leading to 34 GPIO can be flexibly configured peripheral functions. 7. With 4xSPI, 2xI2C, 3xUART, 2xI2S, 2xADC and other peripherals. 8. Based on ESP32-S3 FH4R2, pin out most of the pins under small board type, using half-hole process, can be soldered on customized board. Specification Processor: ESP32-S3 FH4R2 dual-core processor, up to 240MHz operating frequency Interface: USB Type-C interface Current: (Max) 800mA Antenna: 2.4G ceramic antenna Button: BOOT button, press and then press reset to enter download mode. RESET reset button LED:WS2812 Cool RGB LED Size: 23.5*18mm List 1 x Development Board 2 x Pin Header (Soldering or unsoldering optional) Payment Shipping Refund Payment We accept PayPal only. But we only Accept your Ebay Address ,Please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Fill your shipping info Refund All package need to wait 30 days (US only need 7-10 days) , Please take care it.Less than 30 days,we can't take a refund . If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it. If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
