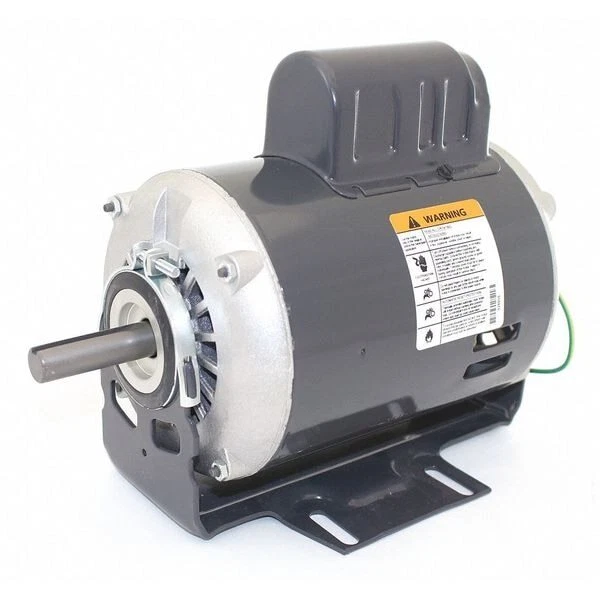

Dayton 6K857 Split-Phase Belt Drive Motor, 3/4 Hp, 56 Frame, 115V Ac Voltage,

$ 92.4

Number of Speeds: 1 Rated Load (HP): 3/4 Base RPM: 1725 Hz: 60 HP: 3/4 Rotation: CW/CCW Motor Application: HVAC/R Bearings: Ball Weight: 12.0000 Motor Service Factor: 1.25 Battery Capacity: N/A Model: 6K857 Motor Enclosure Design: Open Dripproof Current Type: AC Phase: 1 Color: N/A AC Phase: Single Phase Voltage: 115 V AC Frequency Rating: 60 Hz Insulation Class: F (Max 311°F) Type: Belt Drive Motor Number of Batteries: N/A Frame: 56 Depth: 8.250 RPM Range: 1701-1800 Motor Mounting Type: Cradle Base Width: 8.250 Shaft Diameter: 5/8 in Footnotes: 77 Brand: Dayton Length: 15.320 Shaft Type: Keyed Agency Compliance: UL Recognized (E47479), CSA Certified (244617) Battery Included: No Motor Type: Split-Phase gtin13: 0190735366585 Max. Ambient Temp.: 40 Degrees C Restricted States: [] Thermal Protection: Auto Actual Rated Input Voltage: 115 V Motor Bearings: Ball Mounting: Cradle Power Source: N/A Ins. Class: F Body Dia.: 5-5/8" Style: Belt Drive Motor NumberOfItems: 1 Motor Sub Application: Belt Dr Fan/Blower Nameplate RPM: 1725 Motor Design: Split-Phase Full Load Amps: 8.3 Features: The Dayton 6K857 Motor is a belt drive, split-phase, 3/4 HP motor Duty: Continuous Enclosure Type: ODP (Open Drip-Proof) UPC: 0190735366585 Item: Belt Drive Motor Shaft Dia. (In.): 5/8 Nominal Rated Input Voltage: 115 V MPN: 6K857 Battery Size: N/A Enclosure: Open Dripproof

Description

Powered by Frooition Home Feedback Contact Shop Categories Gloves & Safety Apparel Safety Equipment PVF & Plumbing Electrical & Lighting Material Handling & Storage Fans & HVAC Ladders & Platforms Tools Janitorial/Grounds Maintenance Abrasives & Welding Tapes & Adhesives Hydraulics & Pneumatics Auto & Truck Maintenance Shipping & Packing Machining, Bearings & V-Belts More Categories DAYTON 6K857 Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115V AC Voltage, DAYTON 6K857 Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115V AC Voltage, Item Description The Dayton 6K857 Motor is a belt drive, split-phase, 3/4 HP motor with a 1725 RPM speed. It is designed for use in HVAC/R applications, and can be used to drive belt-drive fans or blowers. This belt drive motor has a ball bearing design and is open drip-proof, allowing it to be used in many different environments. The motor has a keyed shaft and a cradled base, and it's designed for continuous duty. It has a split-phase design that allows the motor to run on both sides of the line simultaneously. It is designed to be used with a single phase 115 V power supply. Details About Us Details BRAND: DAYTON MPN: 6K857 SKU: G0321133 ITEM: Belt Drive Motor COLOR: MATERIAL: Shop By Brand More Items! View more great items! Shop By Category Refrigeration & HVAC Other Business & Industrial Cabinets & Bins Gearmotors General Purpose Motors Heating & Cooling Electrical Boxes and Enclosures Light Industrial Equipment & Tools Electrical Outlets & Recepticles Add to Favourite Sellers View Feedback Visit Seller's eBay Shop Sign up to Newsletter Contact Seller About Seller Page Powered by Frooition Frooition | No-js Template | eBay design, eBay store design, eBay shop design, eBay template design, eBay listing design (ver:froo_no_js) This listing is currently undergoing maintenance, we apologise for any inconvenience caused.
