DAYTON General Purpose Motor: Single Phase, 3 hp, 115/230V AC 5K675

$ 314.17

Brand: DAYTON MPN: 5K675BG Processor Model: 1.1

Description

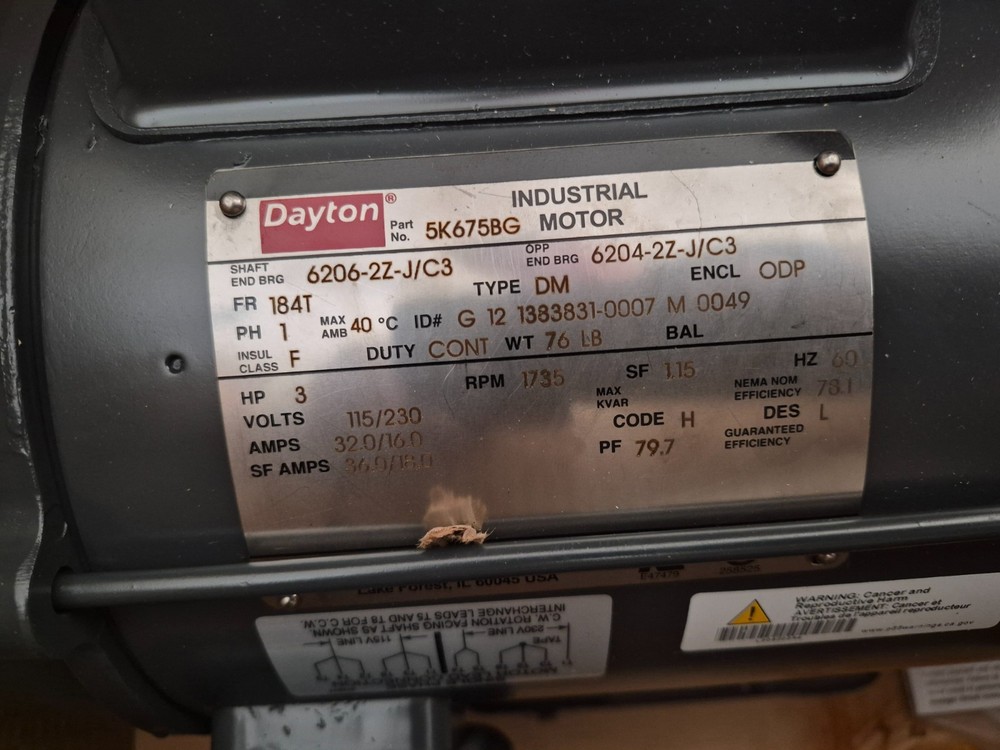

5K675BG DAYTON General Purpose Motor: Single Phase, 3 hp, 115/230V AC, 184T Frame Size, 1 1/8 in x 2 3/4 in Product Details Catalog Page 8 Brand DAYTON Manufacturer Part Number 5K675 Phase Single Horsepower @ 60 Hz 3 hp Nameplate Voltage @ 60 Hz 115/230V AC Nameplate RPM @ 60 Hz 1,735 RPM Nameplate Service Factor @ 60 Hz 1.15 Full Load Amps @ 60 Hz 32.0/16.0 A Frame Size 184T Frequency 60 Hz Insulation Class F Output Shaft (Dia x L) 1-1/8 in x 2-3/4 in Shaft Diameter 1-1/8 in Shaft Length 2-3/4 in Motor Design Capacitor-Start Mounting Type Rigid Base Motor Enclosure Type Open Drip Proof Motor Shaft Rotation CW/CCW Motor Thermal Protection None Nominal Efficiency 78.1 % Number of Speeds 1 Ambient Temperature - Maximum 40 °C Product Type General Purpose Motor Application General Purpose Bearing Type Ball Duty Cycle Continuous Frame Material Steel Length Less Shaft 11-3/8 in Mounting Position All Angle Overall Length 15-3/4 in Shaft Design Keyed Manufacturers Warranty 1 yr Standards CSA (225293); UL (E47479) UNSPSC 26101602 Country of Origin Varies (subject to change) Product Description Rigid base single-phase AC motors have a metal foot base welded to or cast as an integral part of the motor shell.
