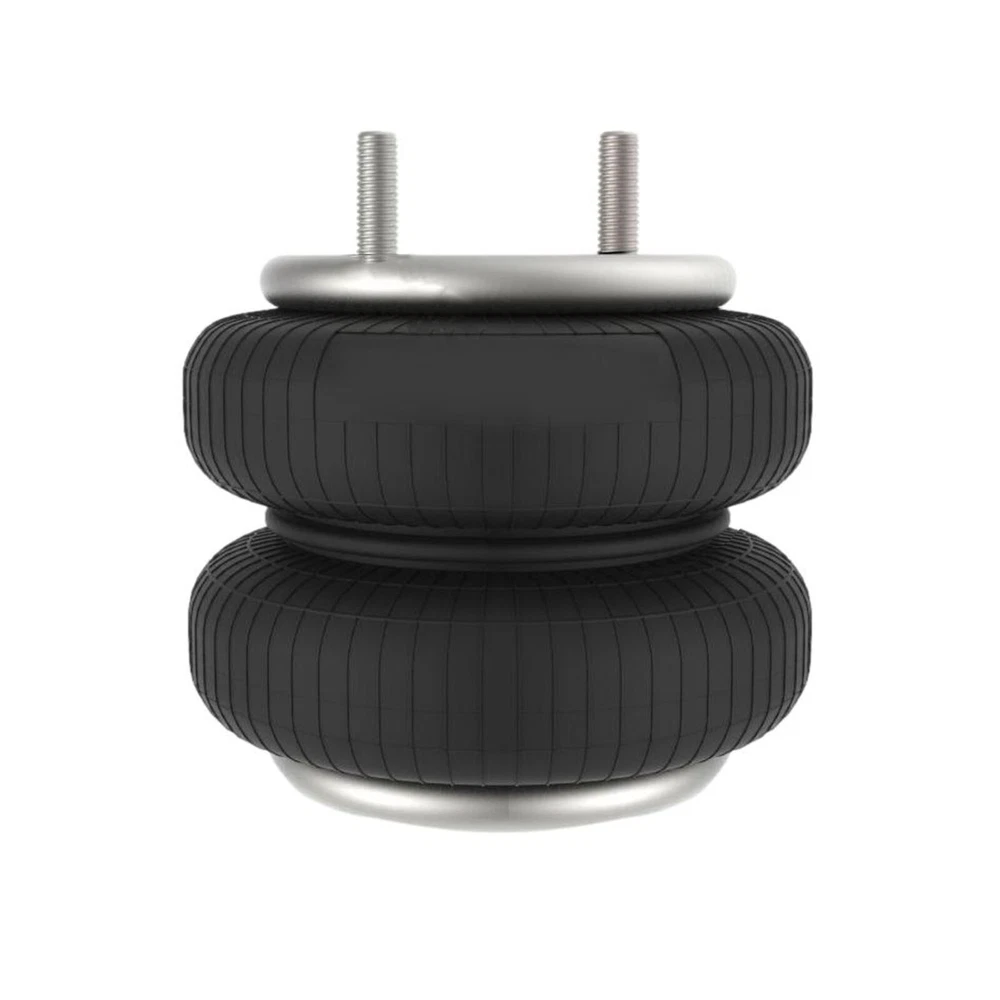

Continental Air Spring Double Convoluted AS7505
$ 63.36
Description
ATTENTION!! If you're not sure about the part number you need To better assist you in finding the correct part please provide 1. YEAR 2. MAKE 3. MODEL 4.Last 8 digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER If you're not sure about the part number you need To better assist you in finding the correct part please provide 1. YEAR 2. MAKE 3. MODEL 4.Last 8 digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER Specifications Attribute Value Type Double Convoluted Automann Bellows# 2B07RA Firestone Bellows# 26C Goodyear Bellows# - Contitech Bellows# FD 110-17A Triangle Bellows# 2300 Load (Lbs) @80 PSI 2900 Load (Lbs) @100 PSI 125 Natural Freq. (CPM) 5.00 Top Plate Hole/Stud Qty 3 Top Plate Dia. (A) 5.500 Top Plate C to C Dia. (B) 2.750 Bottom Plate Hole/Stud Qty 1 Bottom Plate Dia. (C) 5.500 Bottom Plate C to C Dia. (D) - Bottom Plate Alignment - Bumper No Bracket No Min. Height 2.200 Max. Height 9.900 Max. Dia. 8.000 Cross Reference Name Part Number Notes Contitech 67553 Air Spring Double Convoluted Contitech FD110-17A789 Air Spring Double Convoluted Firestone 7505 Air Spring Double Convoluted Firestone W013587505 Air Spring Double Convoluted Firestone W01-358-7505 Air Spring Double Convoluted Hendrickson Aux 001347 Air Spring Double Convoluted Hendrickson Aux R001347 Air Spring Double Convoluted Hendrickson Aux R-001347 Air Spring Double Convoluted ATTENTION!! If you're not sure about the part number you need, please just contact us and send the (VIN) Vehicle Identification Number/OR (ESN) ENGINE SERIAL NUMBER
