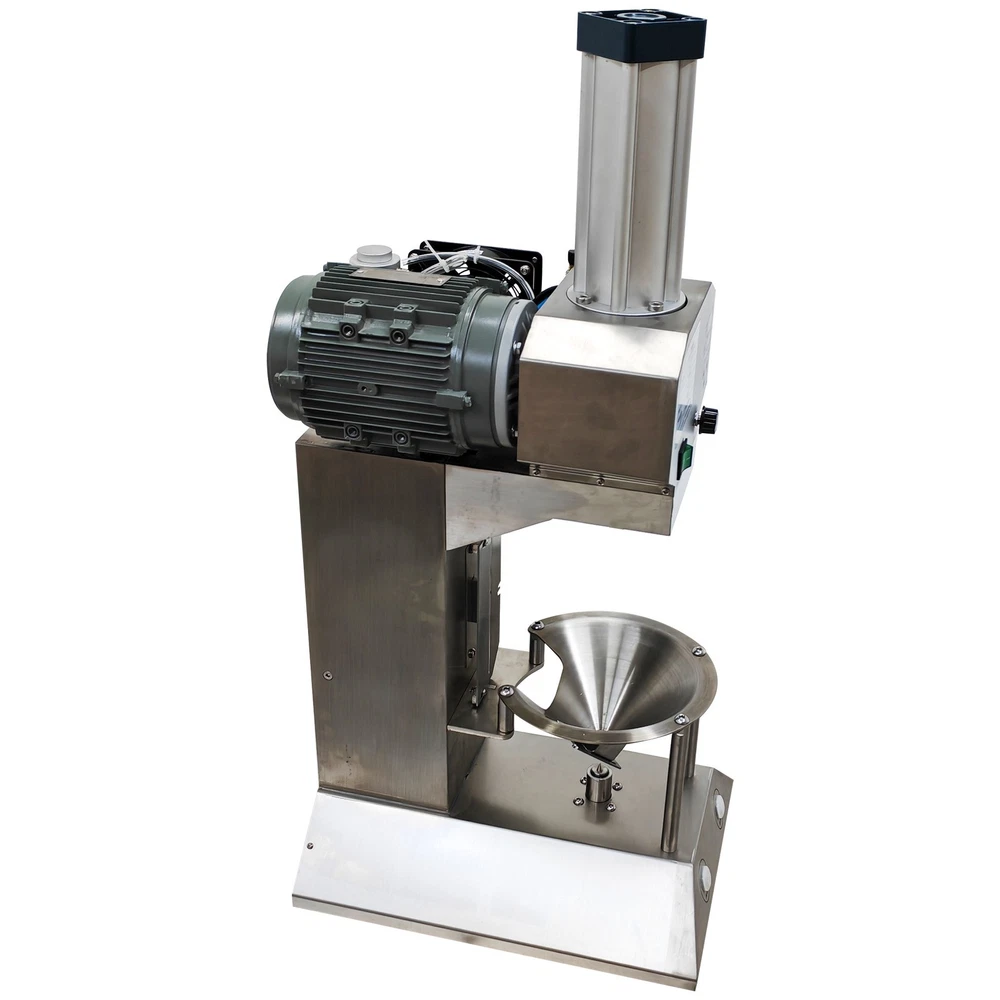

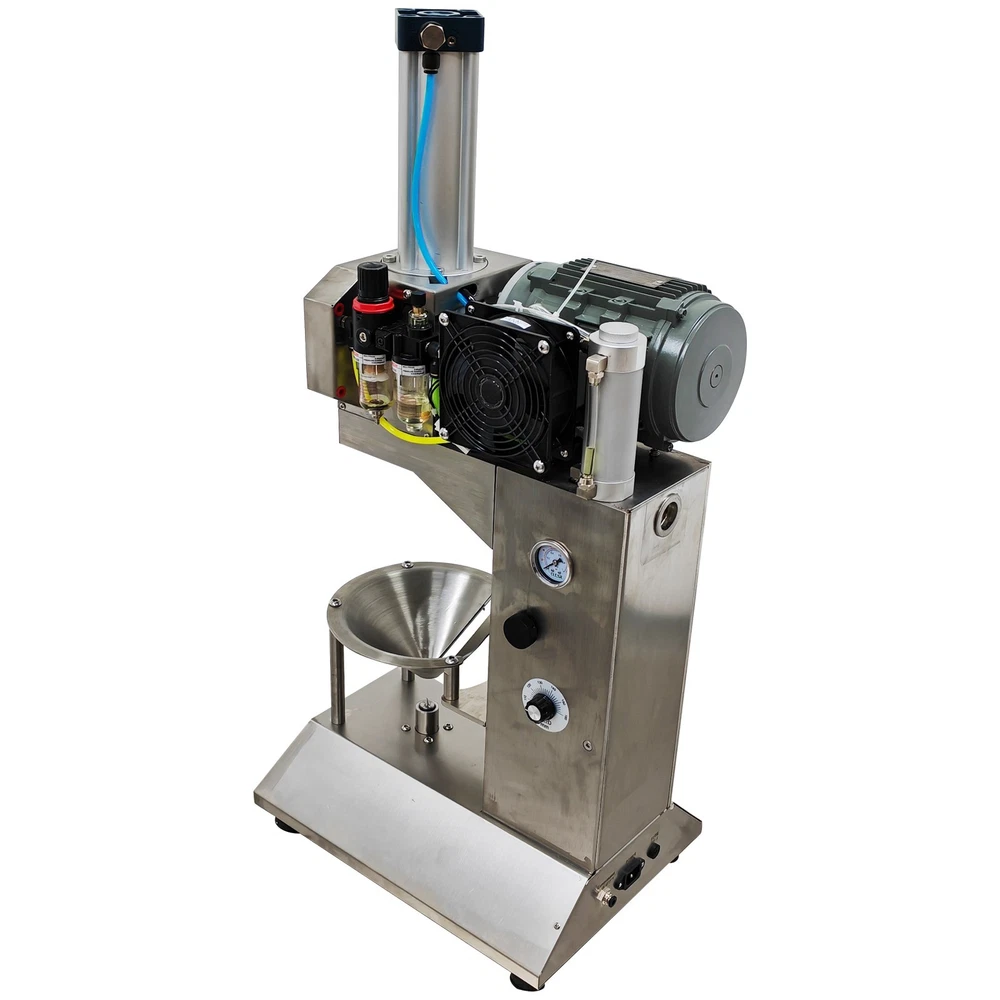

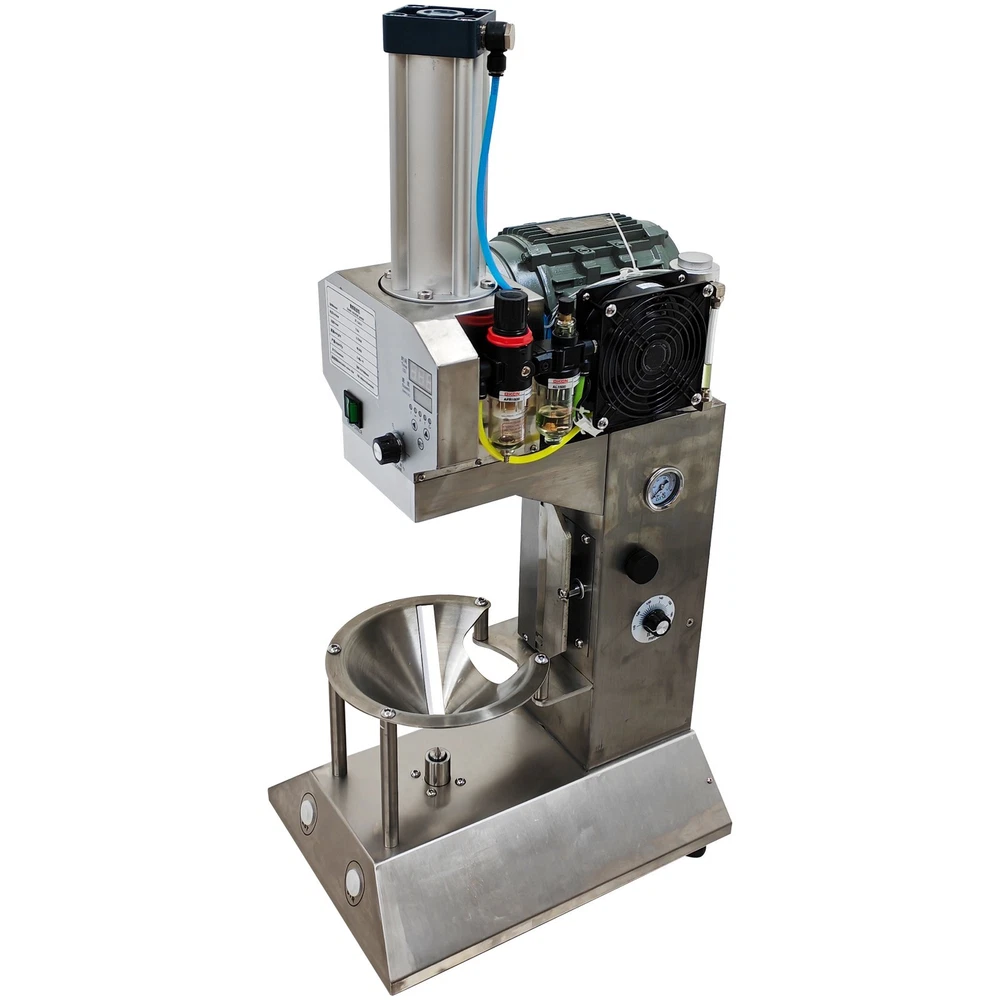

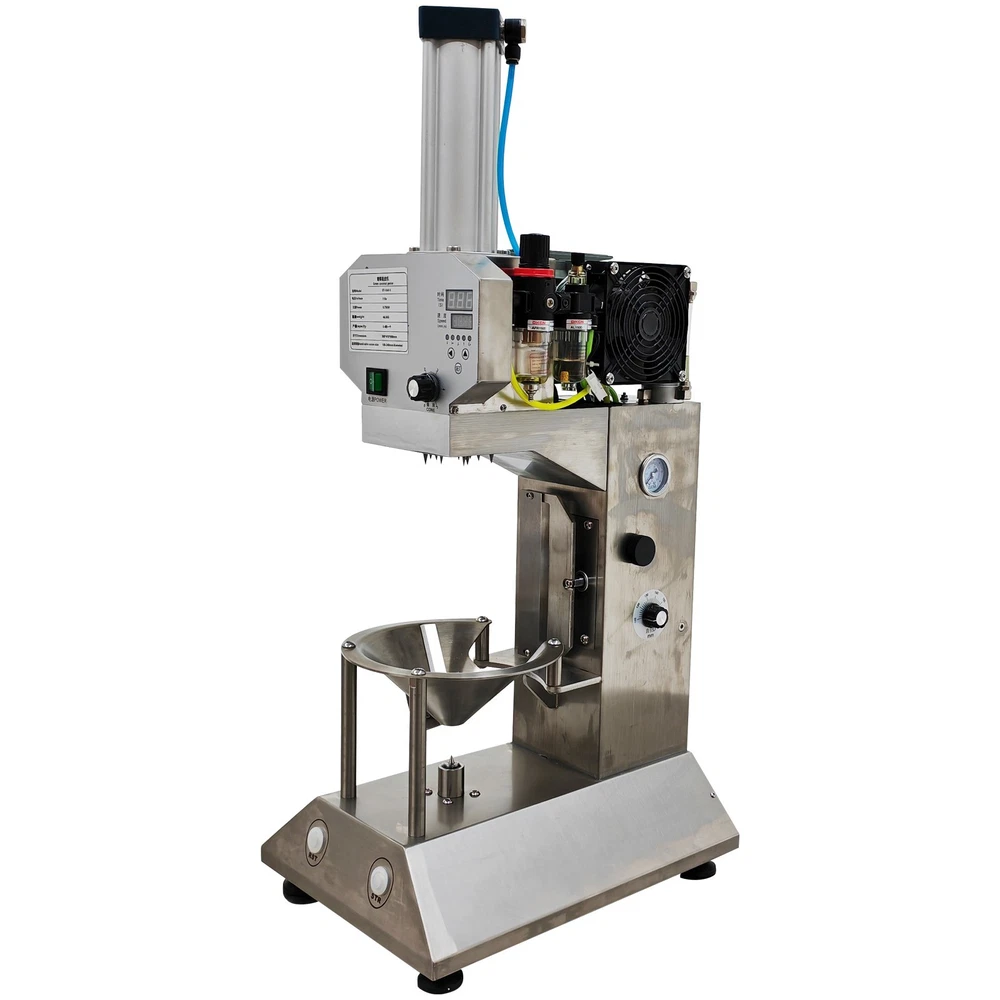

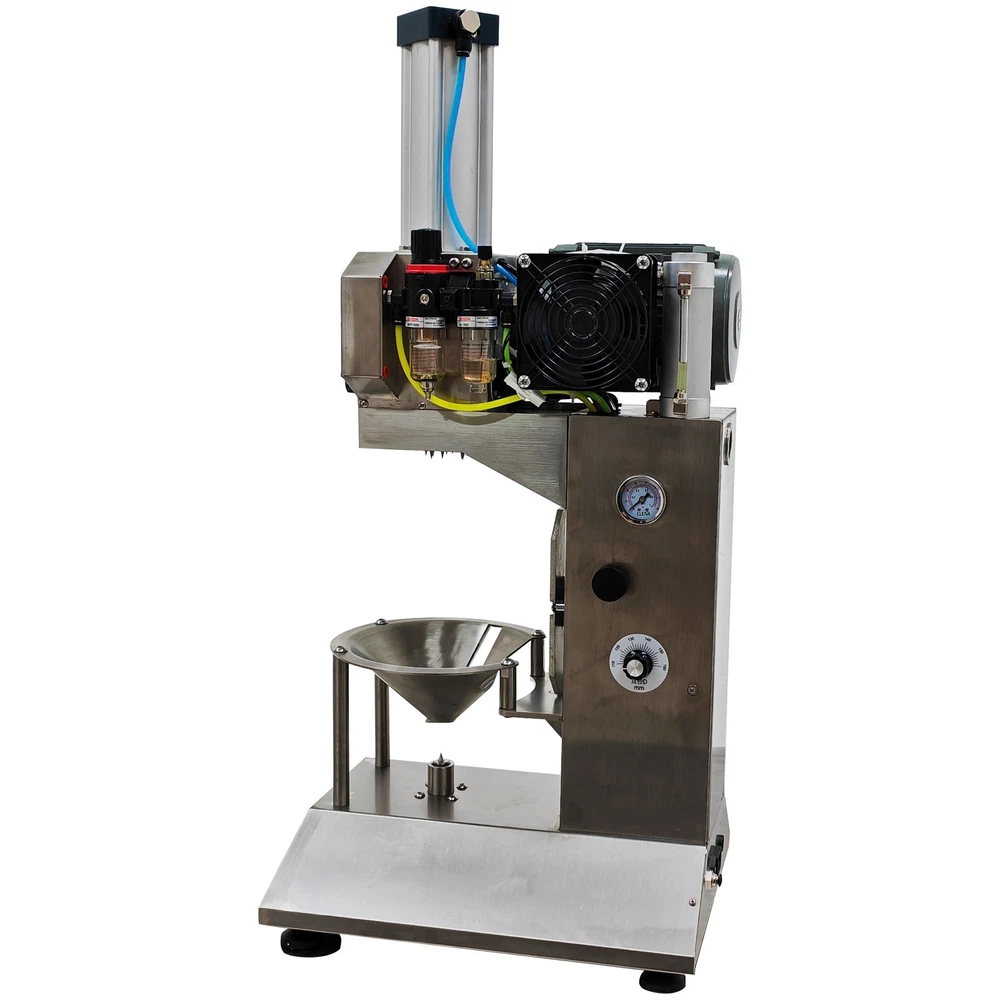

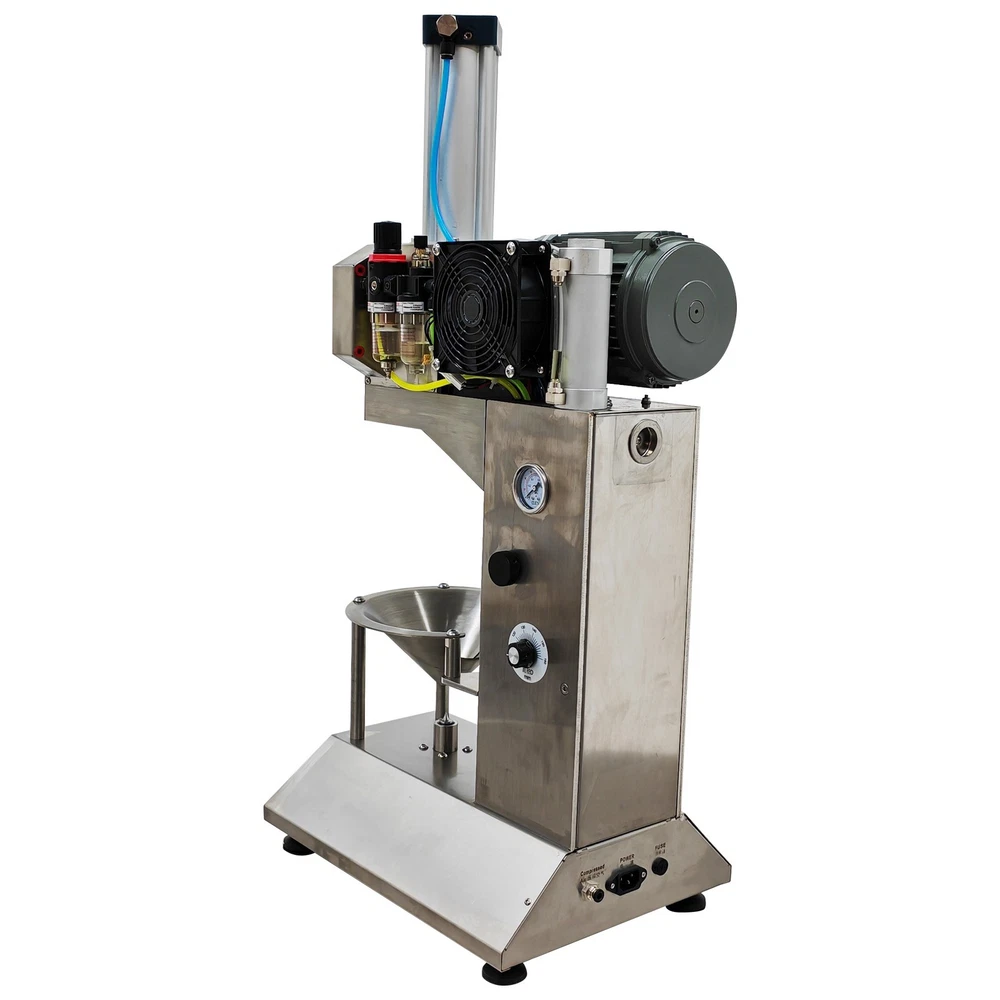

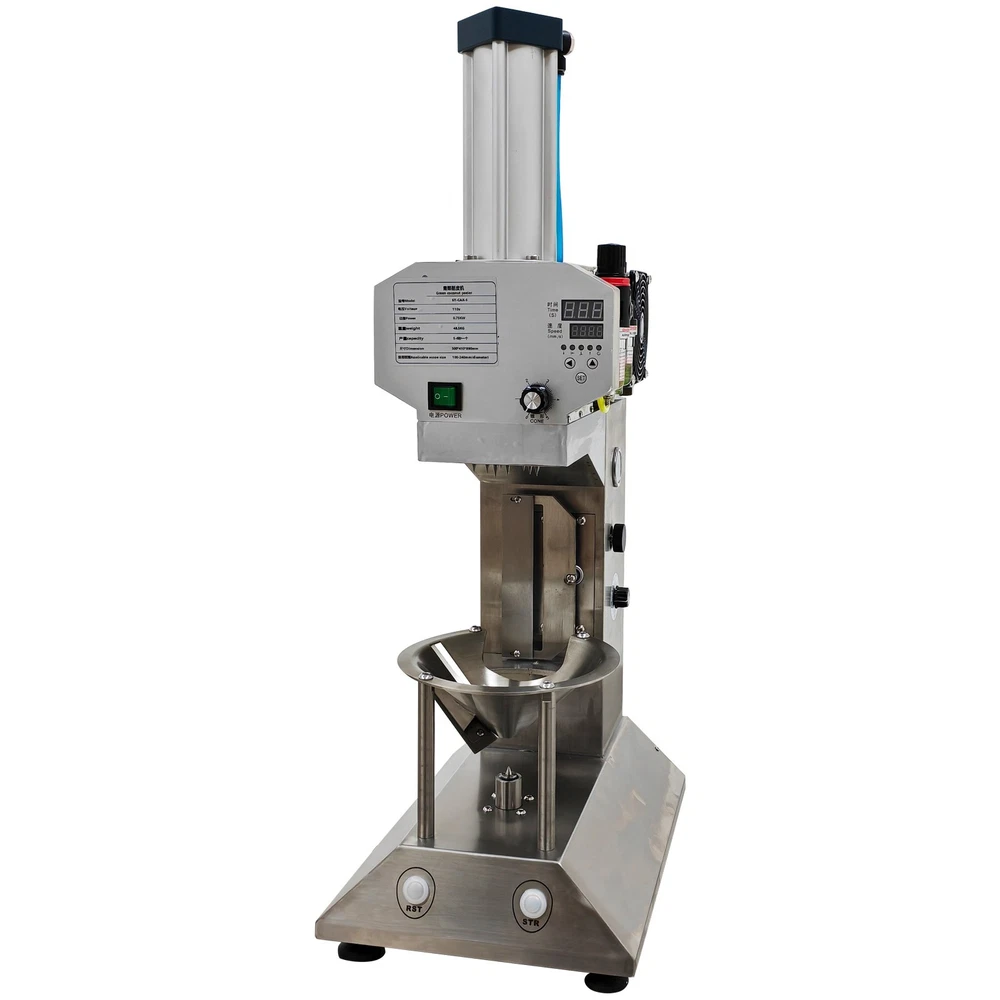

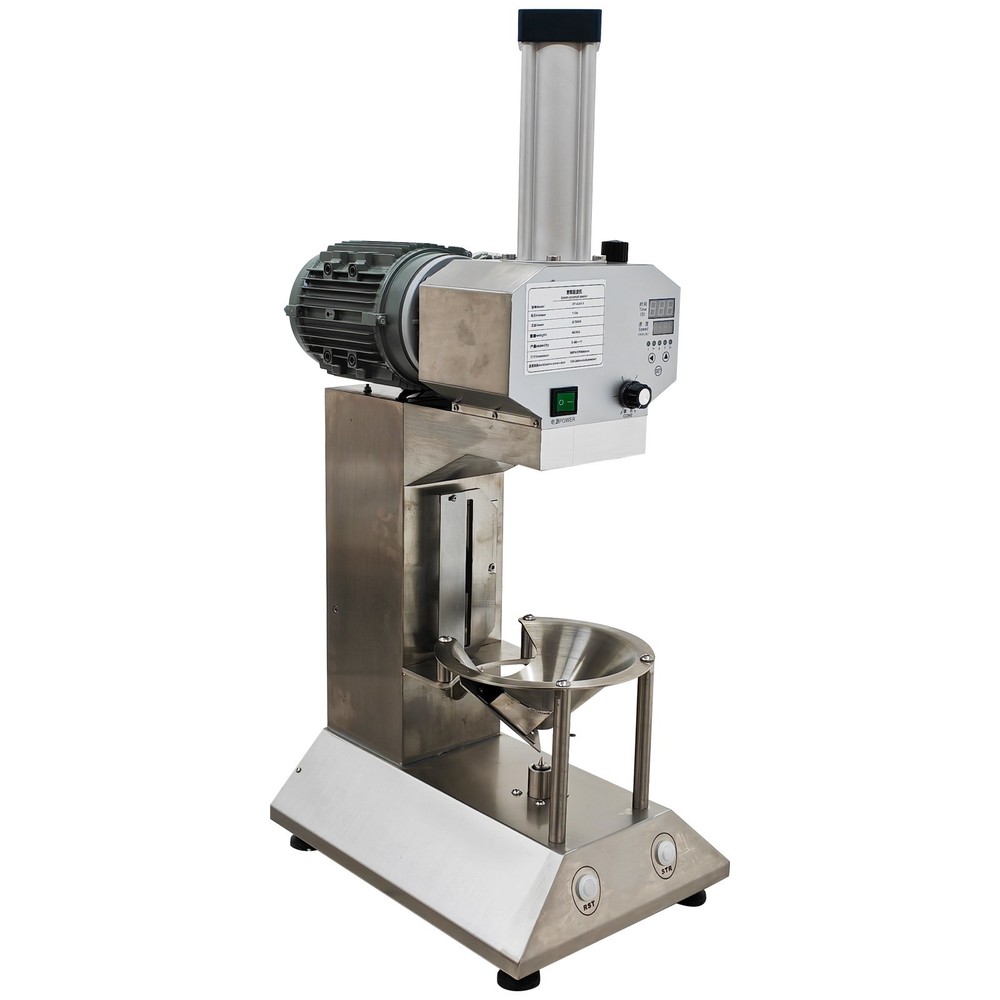

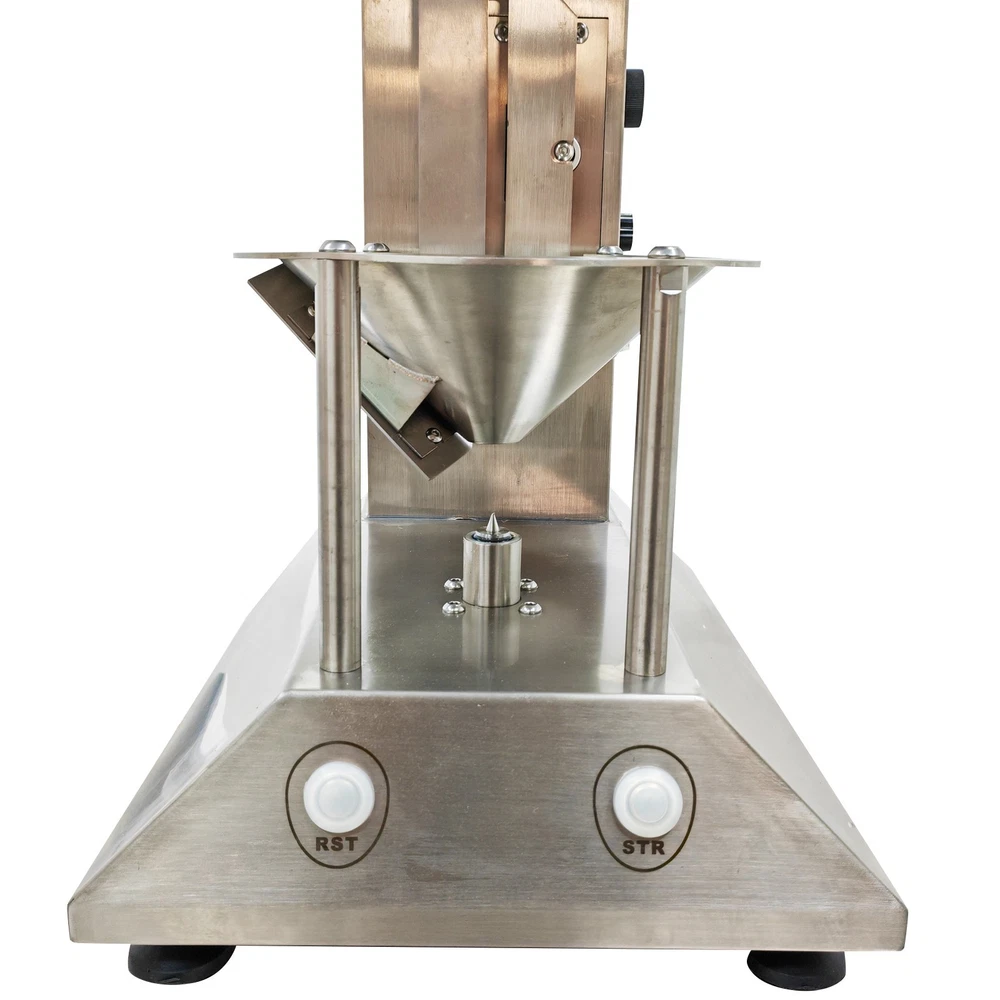

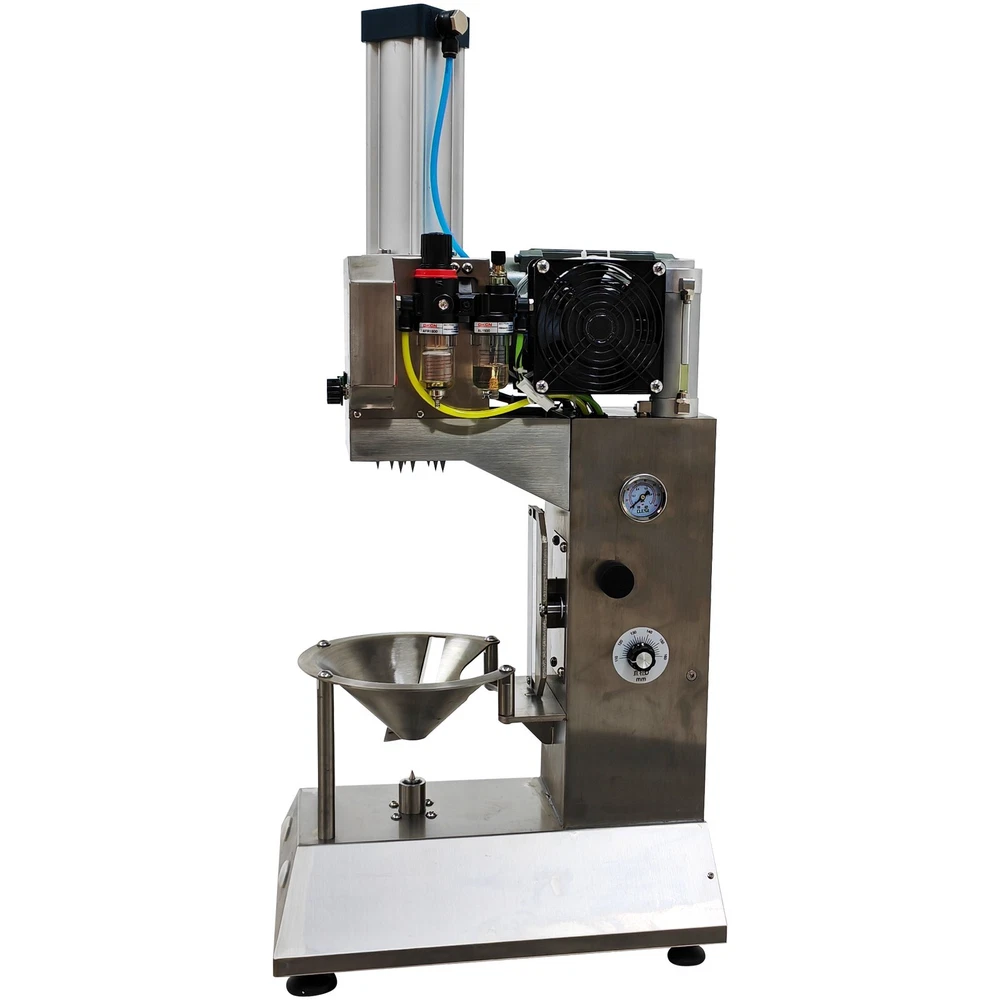

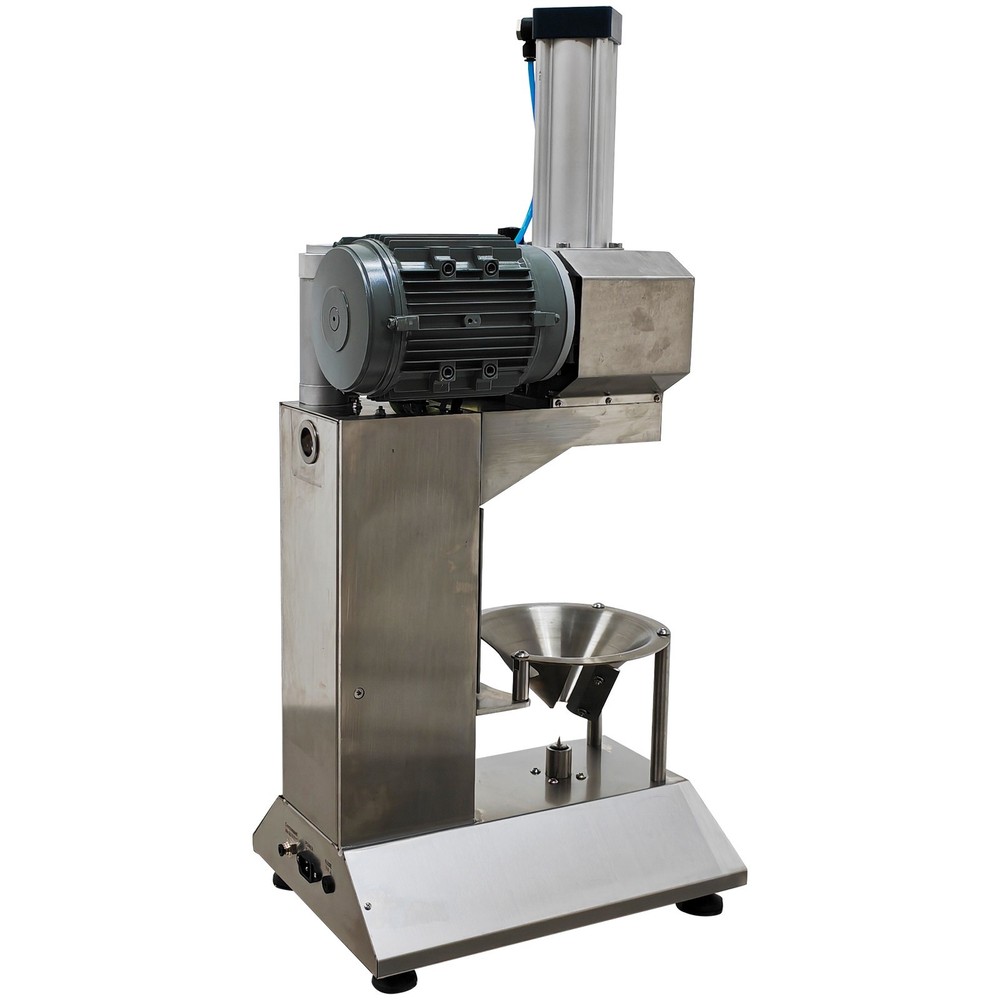

Auto Commercial Coconut Shelling Trimming Machine Coconut Peeling Machine 1HP

Description

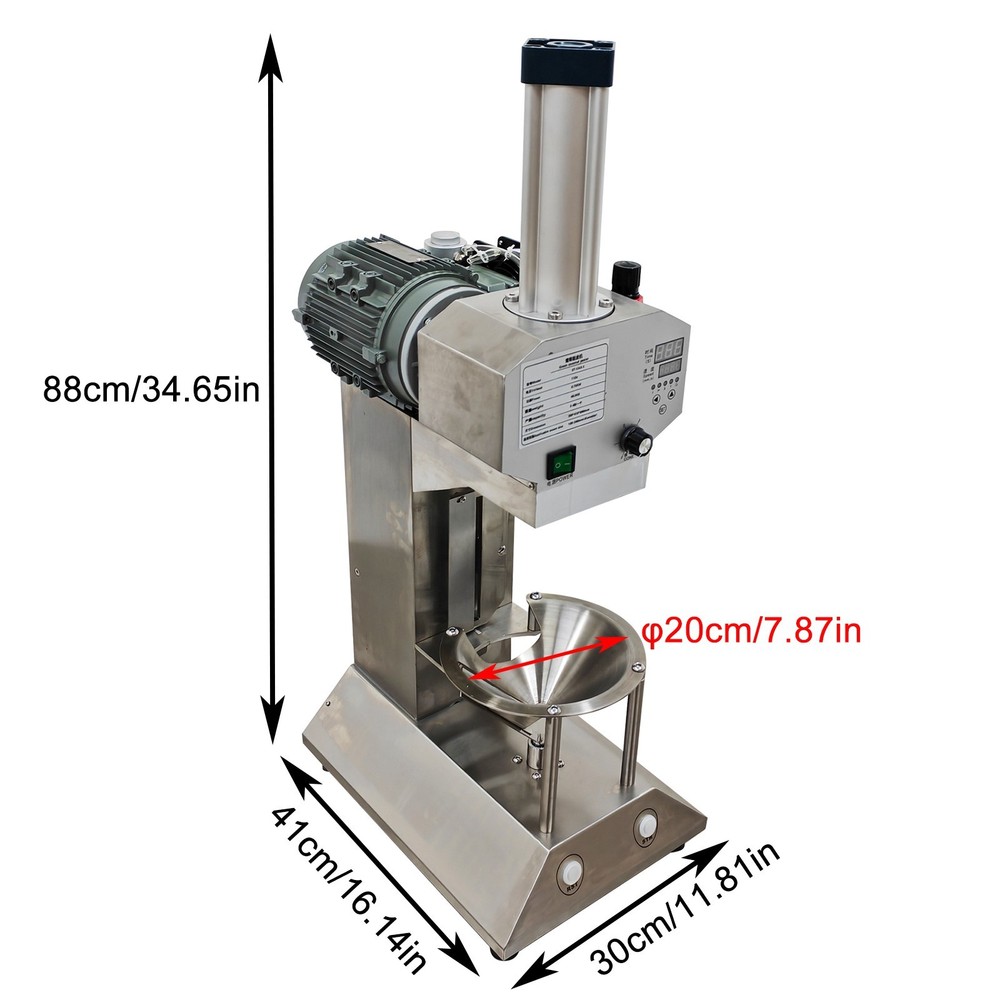

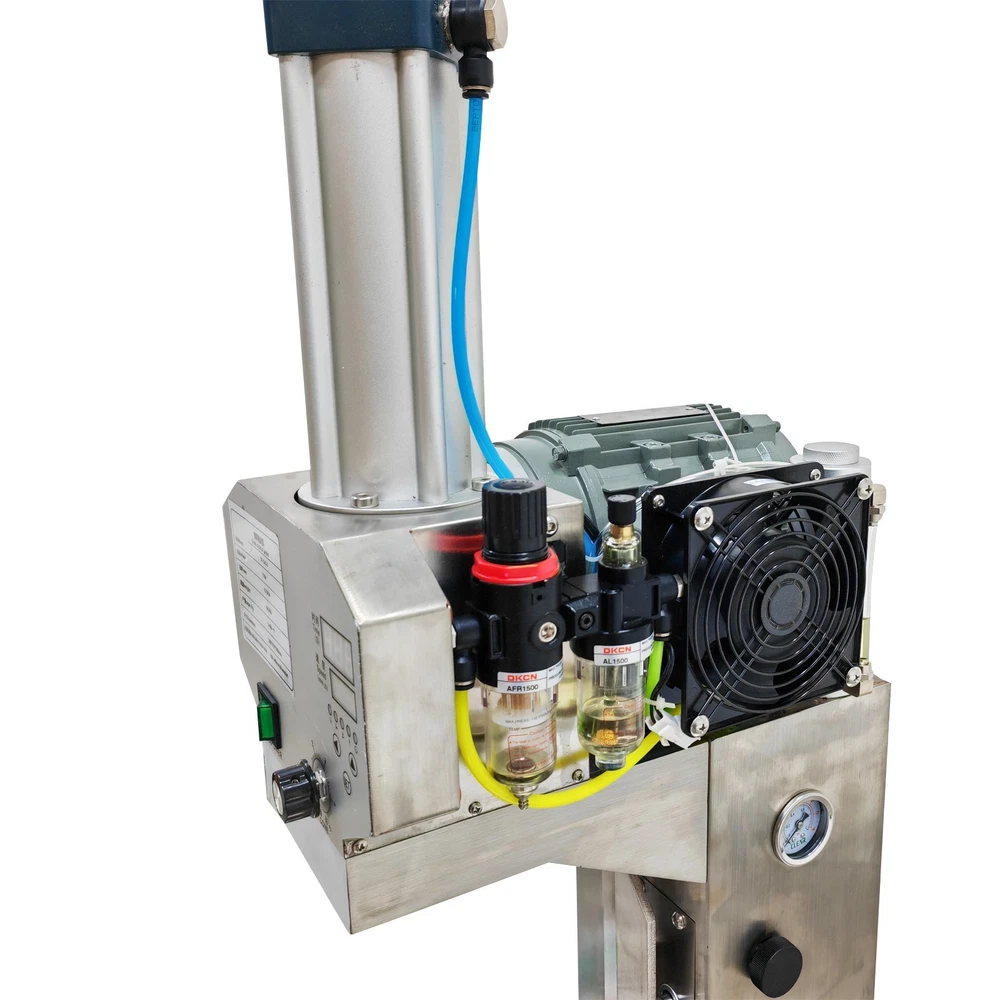

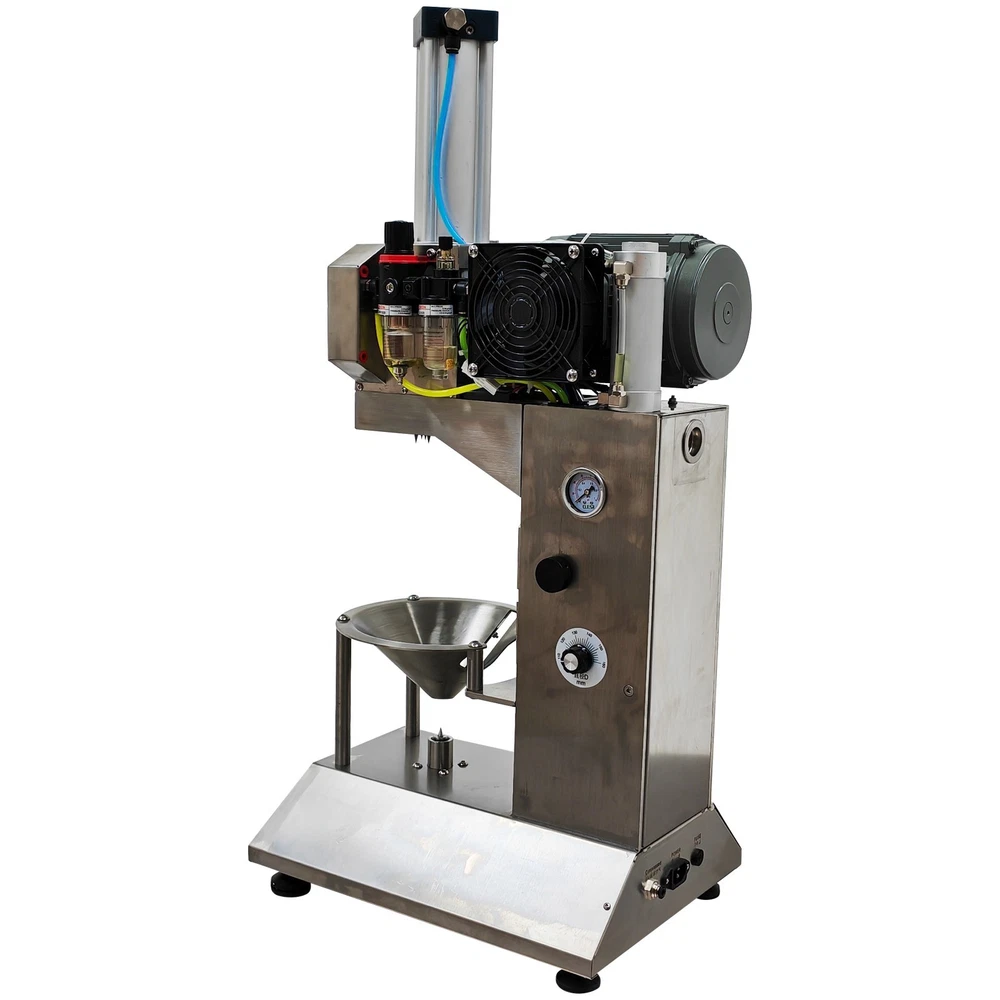

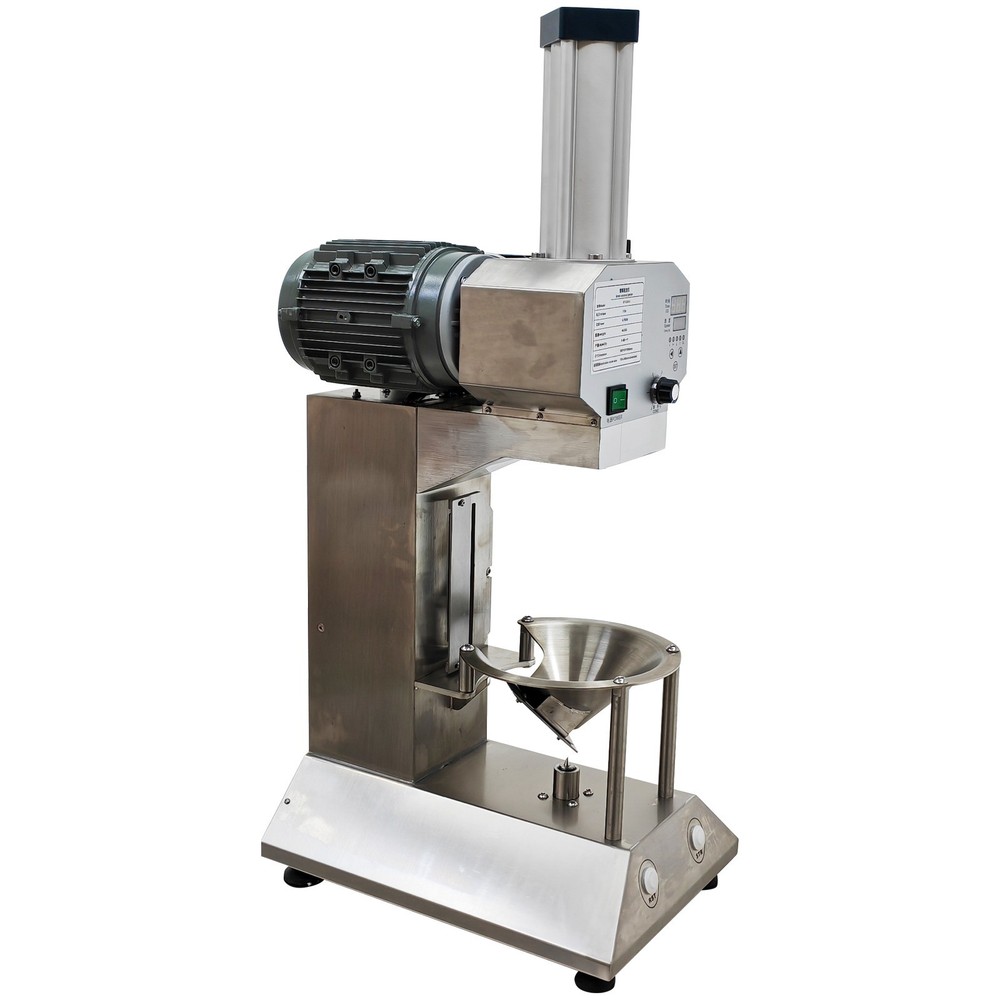

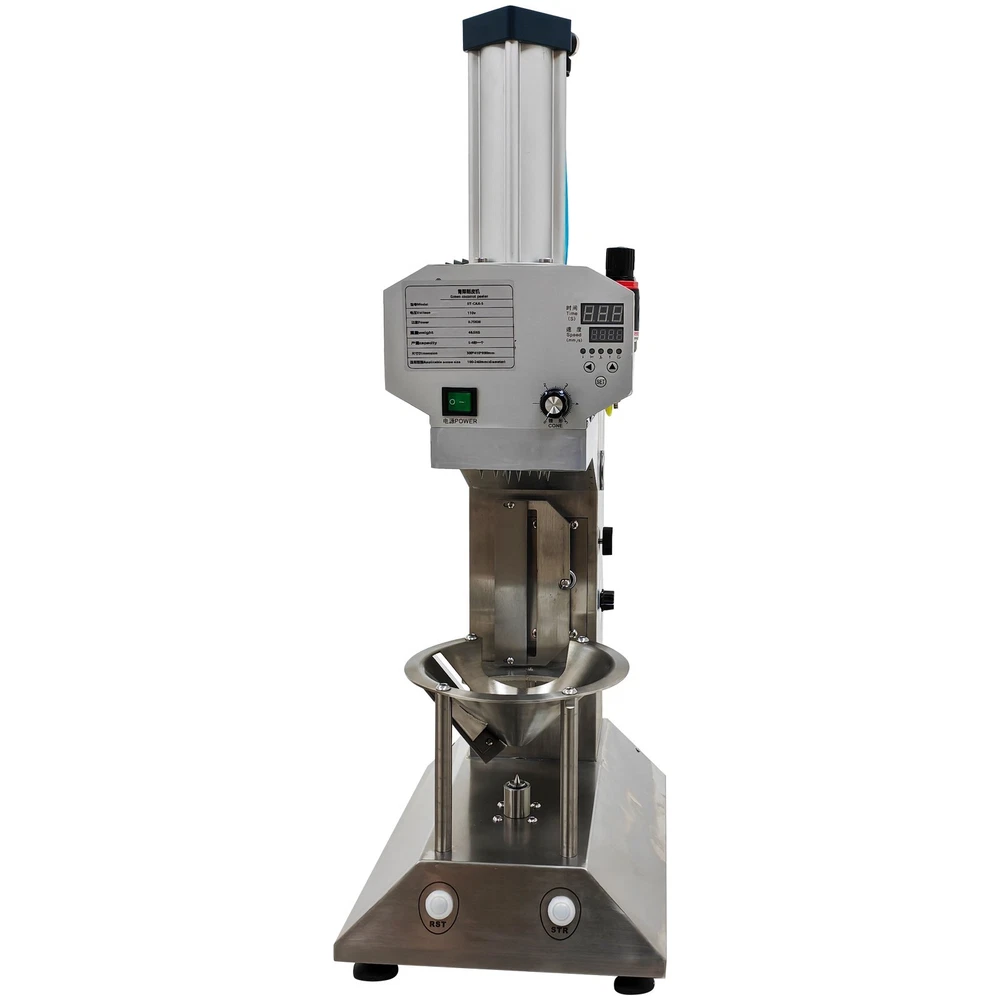

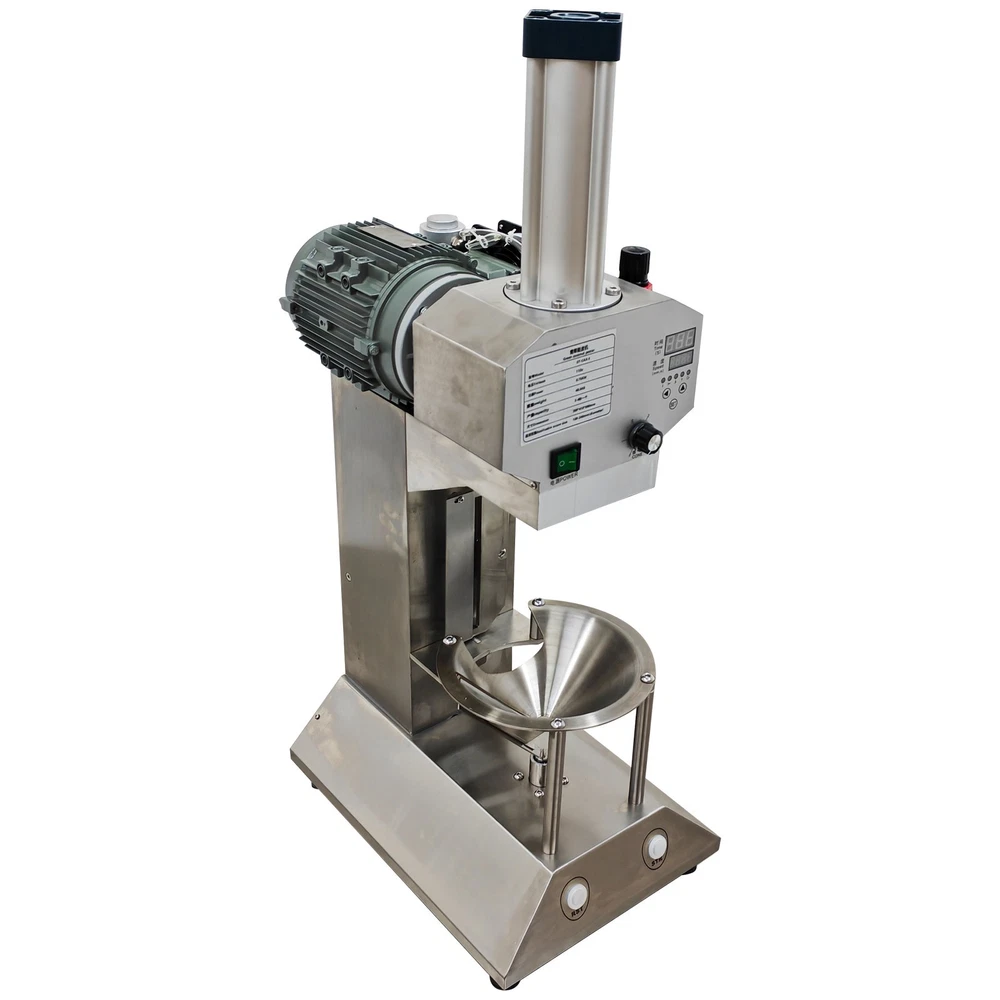

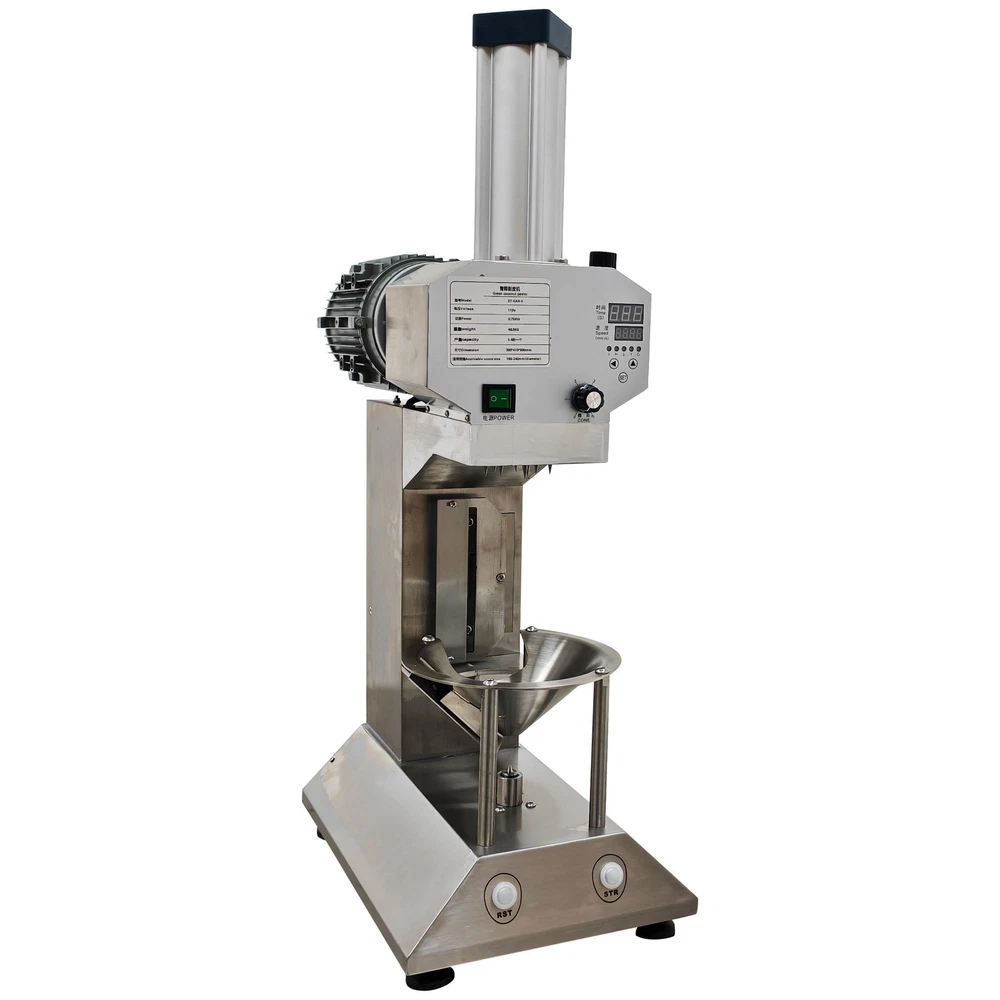

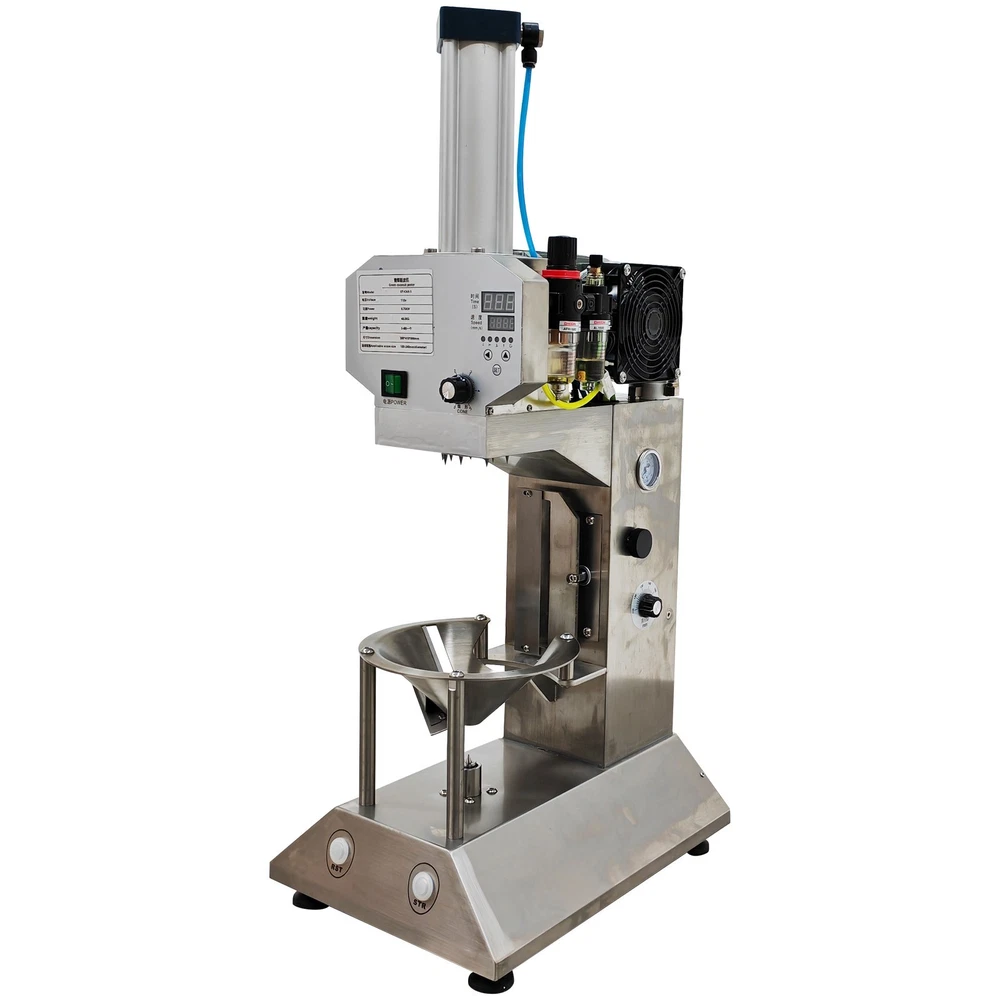

Auto Commercial Coconut Shelling Trimming Machine - Technical Documentation Auto Commercial Coconut Shelling Trimming Machine Coconut Peeling Machine 1HP The fully automatic coconut peeling machine is a precision fully automatic fruit peeler. The machine has the advantages of wide processing range, high efficiency, low noise, simple operation, beautiful appearance, light weight and small size. It is a preferred automatic device in the food processing industry. Product Parameters Parameter Specification Model ST-CAX-5 Voltage 110V 60Hz Power 0.75KW Range of application Ø120-230mm (4.72-9.06in) Size of finished product Ø100-160mm (3.94-6.3in), adjustable at will Peeling speed 5-6 seconds per piece Working medium Compressed air filtered through 40μm Working pressure 0.4-0.7MPa Air consumption About 50L/min Control mode Automatic program control, one-click completion Noise ≤50dB (A) Usage environment Ambient temperature: 5-40℃, Relative humidity RH≤85% Overall dimensions 30*41*88cm (11.81*16.14*34.65 inches) Net weight 49kg (108LB) Attention The power supply of the main machine must be grounded, otherwise it will interfere with internal sensors and other components. During the operation of the machine, it is strictly prohibited to place hands under the rotating parts. It is strictly prohibited to work when the machine is exposed to the rain. If any coconut is crushed, please clean the machine thoroughly and timely, otherwise it may cause a short circuit in the machine. The machine should be used in conjunction with the air compressor, and the customer should prepare the air compressor in advance. Product Features The machine features a wide processing range, high efficiency, low noise, easy operation, attractive appearance and compact structure. It can peel fresh young coconuts, with adjustable cone surface thickness, side cutter speed and peeling diameter. It is operated with mechanical buttons, making it easy to use, convenient to clean, safe and hygienic. It is suitable for coconut retail stores, coconut meat processing factories, snack food factories, beverage shops, tea restaurants, supermarket distribution centers, etc. Control Panel The machine is equipped with an independent control system with a time display, a speed display and multiple indicator lamps, achieving intelligent control and safe and convenient operation, saving time and labor and improving the peeling efficiency and quality. Driving Motor The copper core motor is reliable and durable, has high power and low power consumption, can run more stably and work continuously for a long time, is long in service life and low in fault rate and ensures the peeling operation is smoothly conducted. Cutting Blade The stainless steel cutting blade is steady and sharp, and can be pushed to peel the green coconut quickly and effectively. It can be disassembled and replaced effortlessly to ensure high peeling efficiency and quality. Supporting Hopper The supporting hopper is made of stainless steel materials, effectively improving the supporting stability and preventing the coconut from falling off during peeling. The hopper is safe and reliable, and convenient to clean. Operation Method Place the coconut in the conical dish, press the 'start' switch, and the machine will automatically peel it. After peeling, push the coconut outwards and prepare to peel the next one. If you want to cancel the operation in the running process or encounter an emergency situation, for example, the coconut is cut through, you can press the 'reset' switch, and the machine will immediately stop working. Item Number (021633): 1 x Automatic Coconut Shelling Trimming Machine 110V Shipping & Handling Details Default Shipping Cost or Free Shipping Information: Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us. Buyers from Guam, Puerto Rico, Virgin Islands, American Samoa, Alaska, Hawaii, PO Boxes, APO/FPO addresses or other countries/areas, there WILL be extra shipping costs, please contact us for more detailed information. Please make sure your address is valid for both UPS and USPS services. Any costs incurred because of incorrect or undeliverable address should be undertaken by buyer. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Sales tax / Customs duties: Any sales taxes or Customs duties are not included. If came out, they must be undertaken by the buyer. Damage In Shipping: Email or call us First! We will work with you to get the case resolved in the fastest method. Return / Refund If you are not 100% happy with your purchase, please contact Us. Please don't directly opened a request or case without informing us, or else, we will do some discounts on the warranty and other sales-services later on. Hope for your understanding. Returns & Exchanges All returns must be made within 30 days of delivery date. Items must be in new, unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition. Items returned under the buyer’s remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15% restocking fee of the items purchase price will be charged. Returns that are the result of our seller's error: Buyer will receive a full refund of the item as well as shipping charges. All returns require a RA (Return Authorization) number that will be given by our seller. Please contact with us at first for more details. Defective & Damaged Products If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding. Replacement or refund of defective or damaged products can only be returned in exchange for the exact same product, or else, the purchase price will be refunded back to your original payment method. If an item is received damaged, customer service must be contacted within 7 days of receiving your item. All returns require a RA (Return Authorization) number as above. Warranty & Feedback 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. Any warranty shipping cost to us is responsible by buyer. Any shipping cost to buyer is responsible by the seller. We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much. On Jan 22, 2026 at 21:02:22 PST, seller added the following information:
