Allen-Bradley 25B-D4P0N104 PowerFlex 525 1.5kW 2Hp 380-480VAC Drive NEW #A ^
$ 105.08
Description

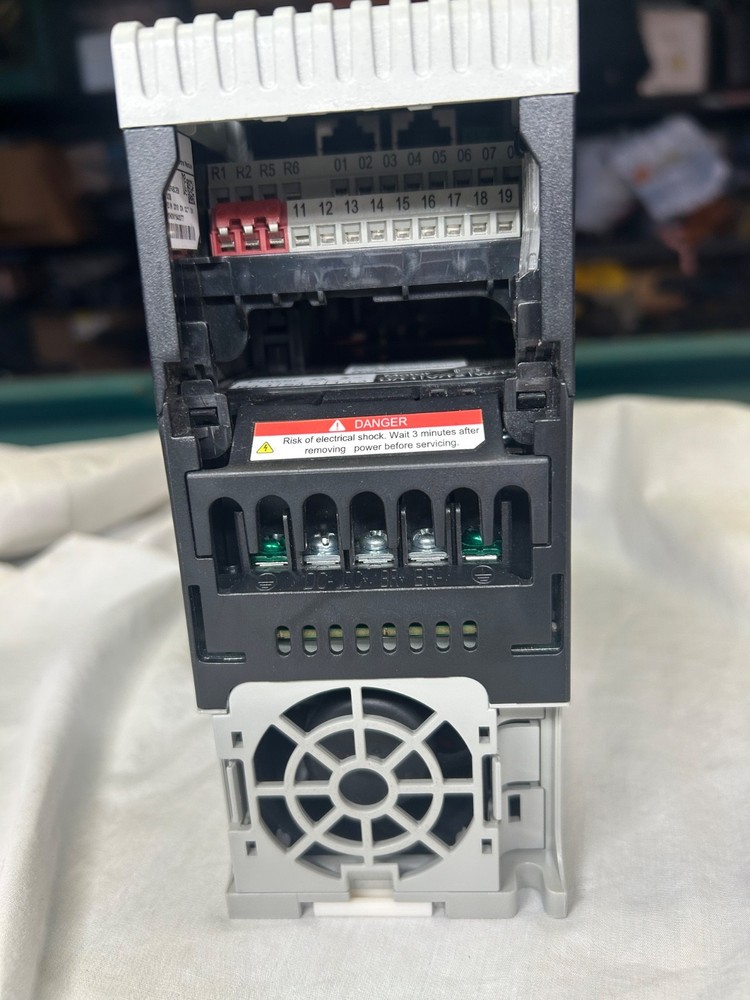

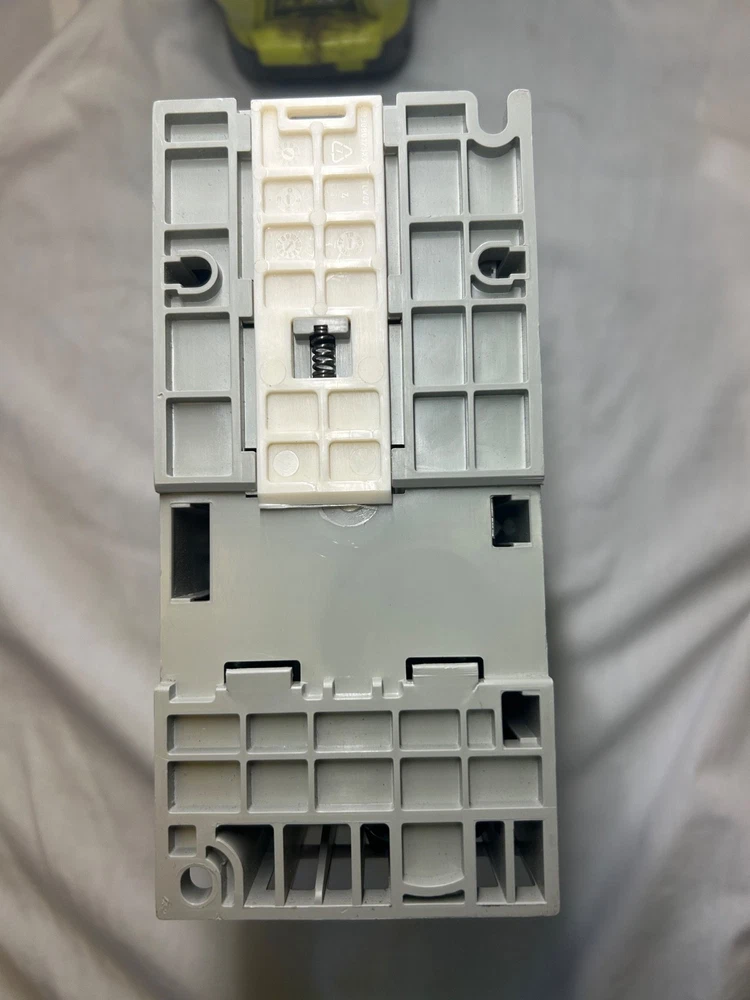

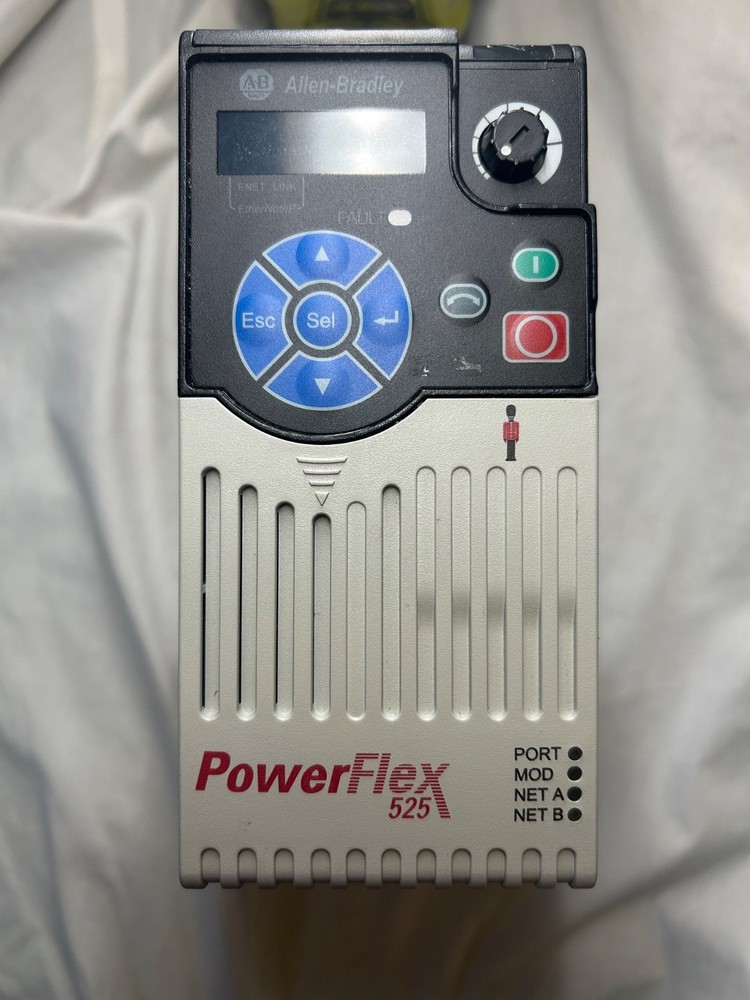

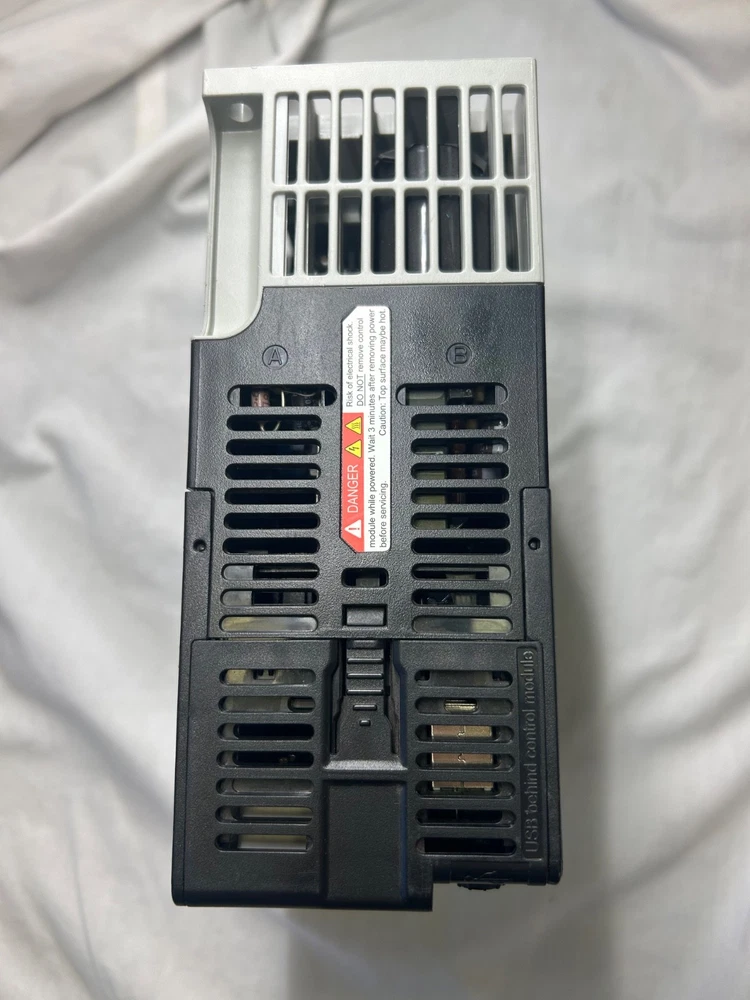

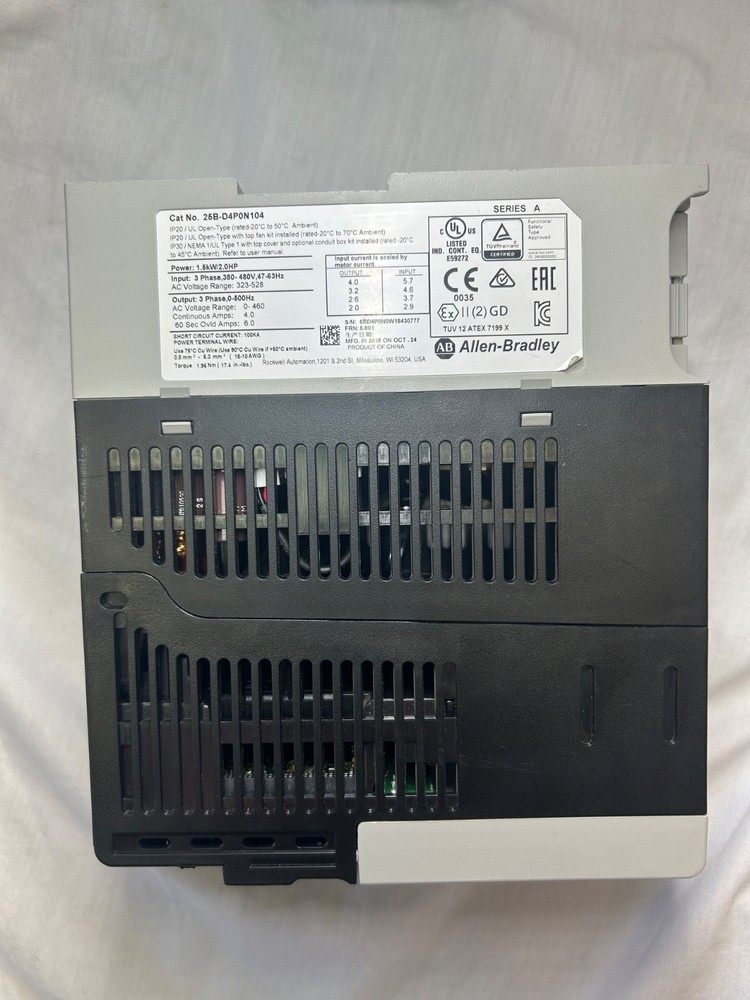

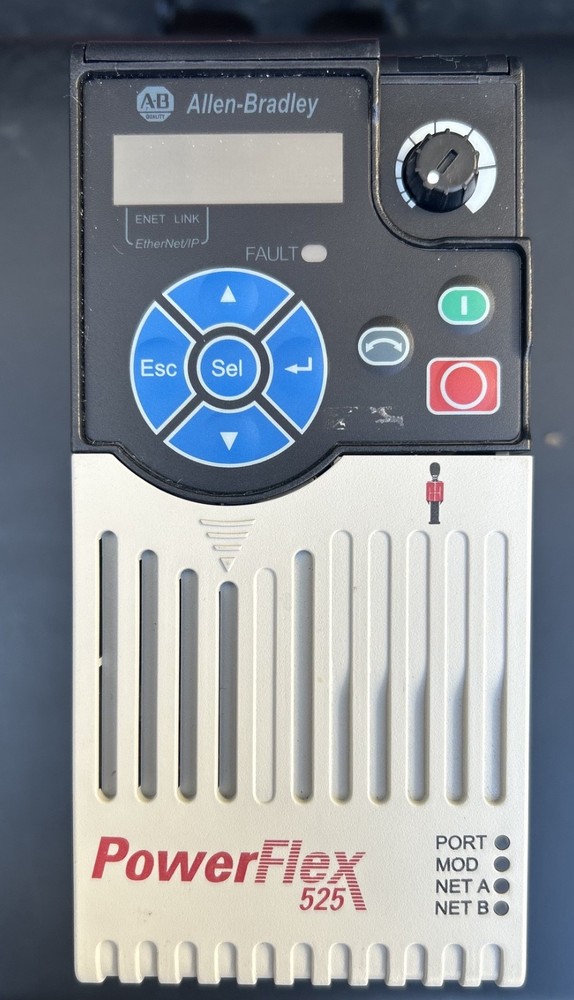

Allen-Bradley 25B-D4P0N104 PowerFlex 525 1.5kW 2Hp 380-480VAC Drive NEW Brand new in open box Item is shipped not in the original box. Never used. The Allen-Bradley 25B-D4P0N104 is a PowerFlex 525 Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 323-528VAC, 3-phase with applicable motor output 4.0 A and Power 1.5 kW (2.0 HP) for normal duty and Heavy duty operation. Output Current: 4.0 A Input Voltage: 323-528 VAC Input Phase: 3-Phase Input Current: 5.7 A Output Voltage: 0-460VAC Output Power: 1.5 kW (2.0 HP) I/O: Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA Installation: Panel Mount / DIN Rail Enclosure Rating: IP20 / NEMA UL Type Open Built-in communication port: Ethernet I/P Optional communication protocols: Dual Ethernet I/P; DeviceNet; ProfiBus DP Voltage: Three Phase, 480 VAC Enclosure Type: IP20 NEMA / Open Type Interface Module: Standard Frame Size: Frame A EMC Filtering Options: No Filter Communication: Ethernet and USB PowerFlex 525 AC Drive PowerFlex 525 AC drives feature an innovative, modular design offering fast and easy installation and configuration. These cost-effective compact drives come with embedded EtherNet/IP™ communications, safety, USB configuration and a high ambient operating temperature capability. PowerFlex 525 AC drives also provide a variety of motor control algorithms including volts per hertz, sensorless vector control and closed loop velocity vector control, making these drives ideal for a vast array of applications. Branch circuit protection supplied separately Isolation Transformers and Input Line Reactors are available, see page 56 . PowerFlex 525 AC Drive at a glance Ratings 100…120V: 200…240V: 380…480V: 525…600V:: 0.4…1.1 kW / 0.5…1.5 Hp / 2.5…6 A 0.4…15 kW / 0.5…20 Hp / 2.5…62.1 A 0.4…22 kW / 0.5…30 Hp / 1.4…43 A 0.4…22 kW / 0.5…30 Hp / 0.9…32 A Motor Control • V/Hz Control • Sensorless Vector Control • Closed Loop Velocity Vector Control • Permanent Magnet Motor Control External EMC Filter is optional Drive catalog numbers are available with an integral filter and without. Enclosures • IP20, NEMA/UL Type Open • IP30, NEMA/UL Type 1 (with optional kit) Multi-language Integral LCD Human Interface Module with scrolling text. Safety Safe Torque-Off PLd/SIL2 Cat 3 (meets ISO 13849-1) Additional Features Communications DIN Rail Mounting (Frames A…C) Embedded EtherNet/IP port Integral RS-485 with Modbus RTU/DSI See page 52 for other options Embedded I/O 7 Digital Inputs, 2 Digital Outputs, 2 Analog Inputs, 1 Analog Output, 2 Relay Outputs Internal Brake IGBT • Modular design eases installation • Operating temperatures from -20 °C (-4 °F) up to 50 °C (122 °F). Up to 70 °C (158 °F) with current derating and optional control module fan kit. • Embedded EtherNet/IP port • Option for dual port EtherNet/IP adapter which supports DLR functionality. DeviceNet and PROFIBUS DP adapters also available. • Embedded Safe Torque-Off PLd/SIL2 Cat 3 • LCD HIM with multi-language support • MainsFree™ Programming via USB • Configure using Connected Components Workbench Software • Add-on Profiles for Studio 5000™ Logix Designer Software • Automatic Device Configuration • Economizer motor control for energy savings • Application specific parameter groups • Simple positioning control with optional encoder card • Conformal coating to IEC 60721 3C2 standards Output Reactors, Terminators and Reflected Wave Devices are optional Certifications • ACS 156 • ATEX • C-Tick • c-UL, UL • CE • EPRI/SEMI F47 • GOST-R • KCC • Lloyd’s Register • RoHS • TÜV FS ISO/EN13849-1 (EN954-1)
