5x100 to 5x120 Wheel Adapters 25mm 6061-T6 1" 12x1.5 Studs 57.1 Hub

$ 24.27

Type: Wheel Adapter Other Part Number: Allow 5x100 (Hub) to Use 5x4.75 (Wheel) Manufacturer Part Number: VV248-25BU-RDX Placement on Vehicle: Front Axle, Rear Axle Brand: RDX Racing Installation Note: Direct Connect; Modifying Factory Studs Could Be Required Vehicle Bolt Pattern:: 5x100 Number in Pack: 2 Warranty: Twelve-Month Hub Bore: 57.1mm Interchange Part Number: Allow 5x100 (Hub) to Use 5x120 (Wheel) Bolt Pattern: 5x100 (Hub) to 5x120 (Wheel) Manufacturer: RDX Racing Items Included: Wheel Adapters & Nuts Wheel Bolt Pattern:: 5x120 Finish: Anodized Silver Wheel Bolt Pattern: 5x120 Spacer Thickness: 25mm (1.0") Spacer Type: Lug Centric Material: High Grade T6 Aluminum w/ Class 10.9 Carbon steel wheel studs Thread Size: M12x1.5 Performance Part: Yes

Description

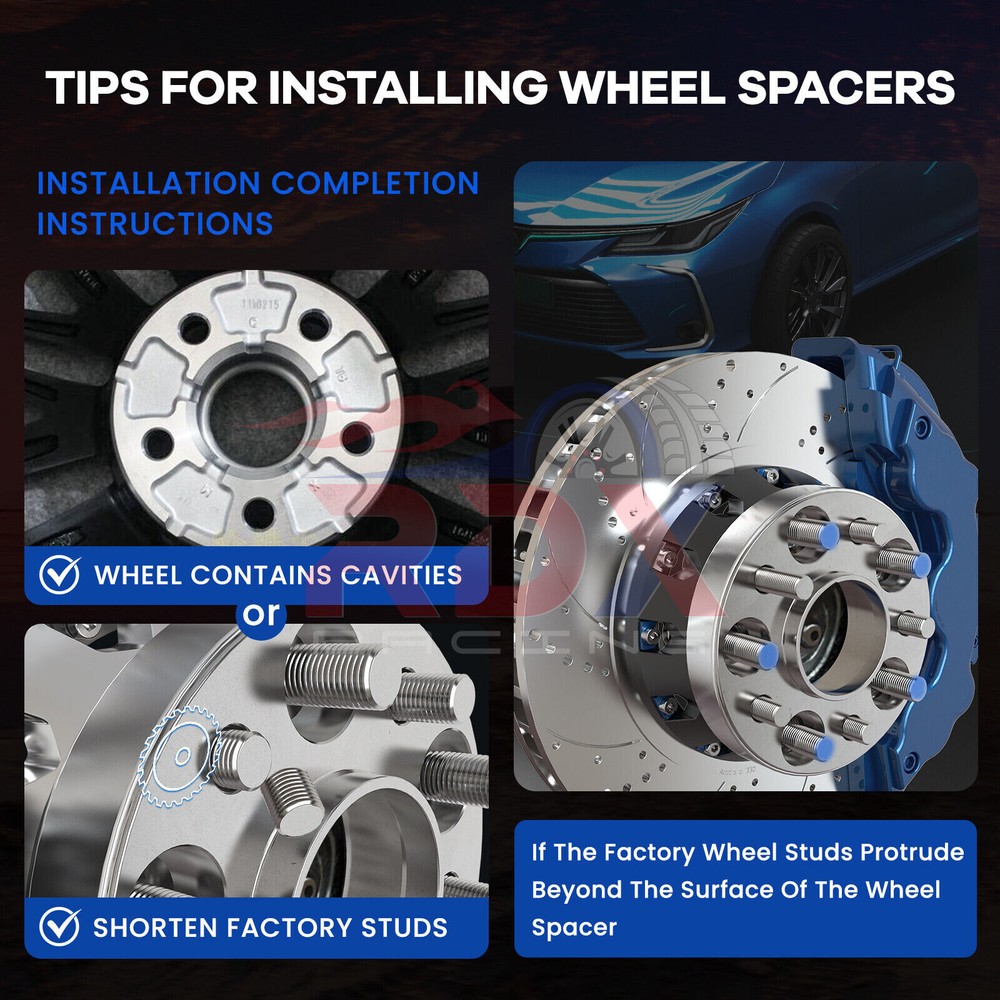

Adapter Thickness: 25mm (1 Inch) Each Side Quantity: 2 Pieces Bolt Pattern: 5x100 (Hub) to 5x120 (Wheel) Center Bore: 57.1 mm Thread Pitch: 12mm X 1.5 Anodized Silver Adapter Type: Bolt pattern conversion adapter (Lug centric) Pre-assembled With Pressed Grade 8 Studs This adapter set includes open end lug nuts to secure the adapters onto your factory hubs If Your Factory Lugs Are In 12x1.25 Thread, You Will Need To Purchase A Set of 12x1.25 Open End Lug Nuts (For Spacer Installation) & A Set of Wheel Lug Nuts in 12x1.5 to complete the installation Your Factory wheel studs may extend past the surface of the wheel adapters. In this case you will need to: 1. Adjust the factory studs to a shorter length. 2. Check that the wheels have open slots (cavities) between the fastener holes. 3. Replace the factory studs with a new set of shorter studs.
