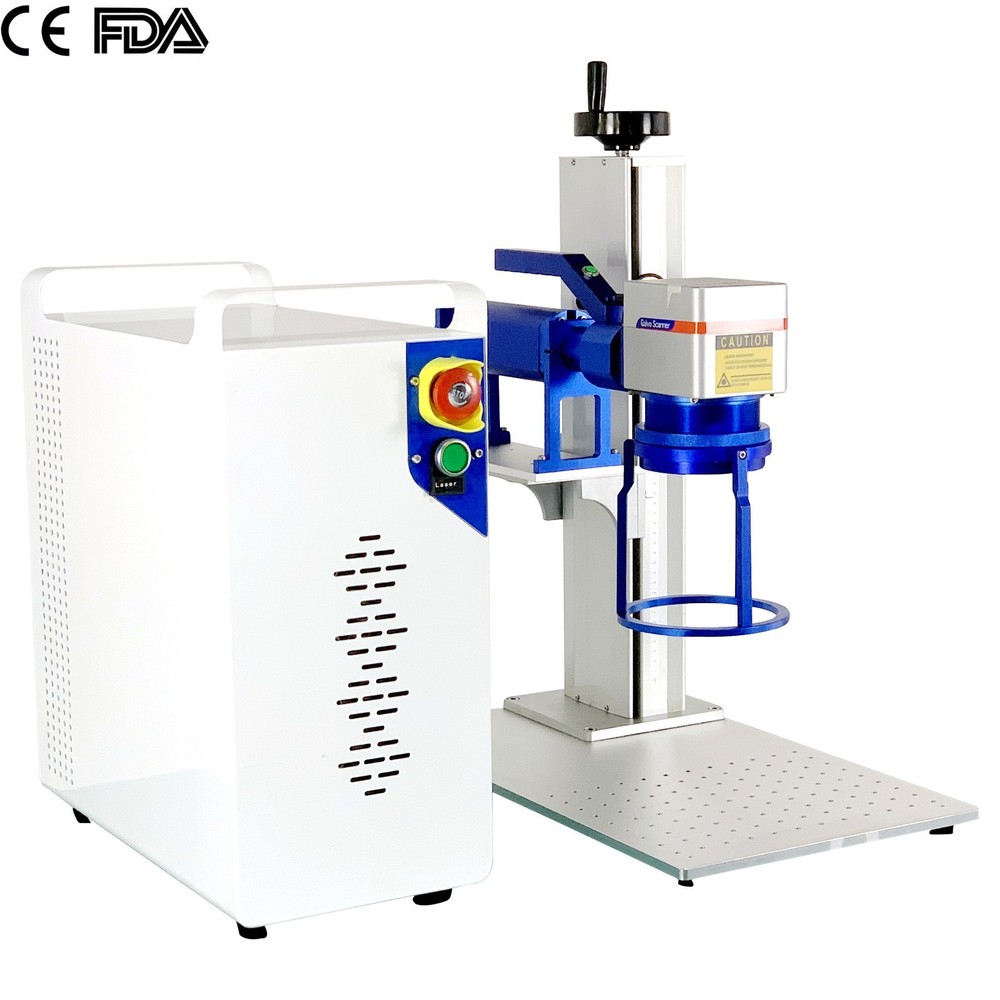

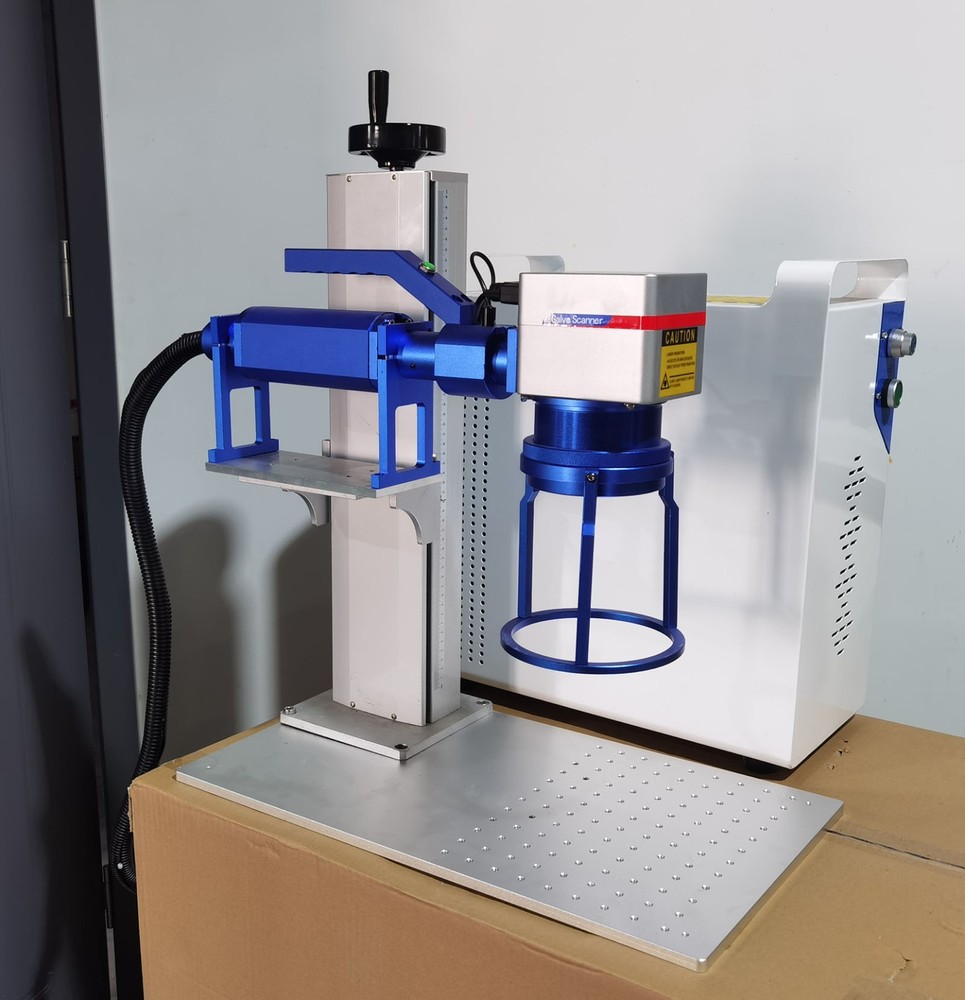

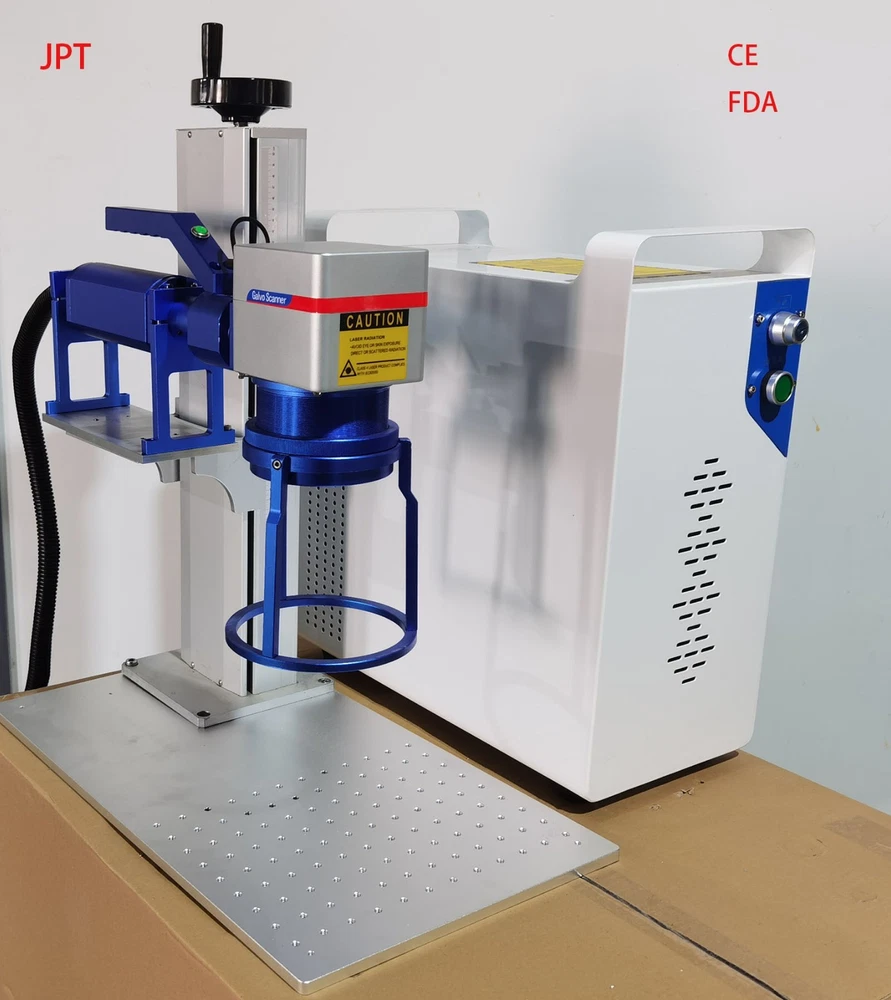

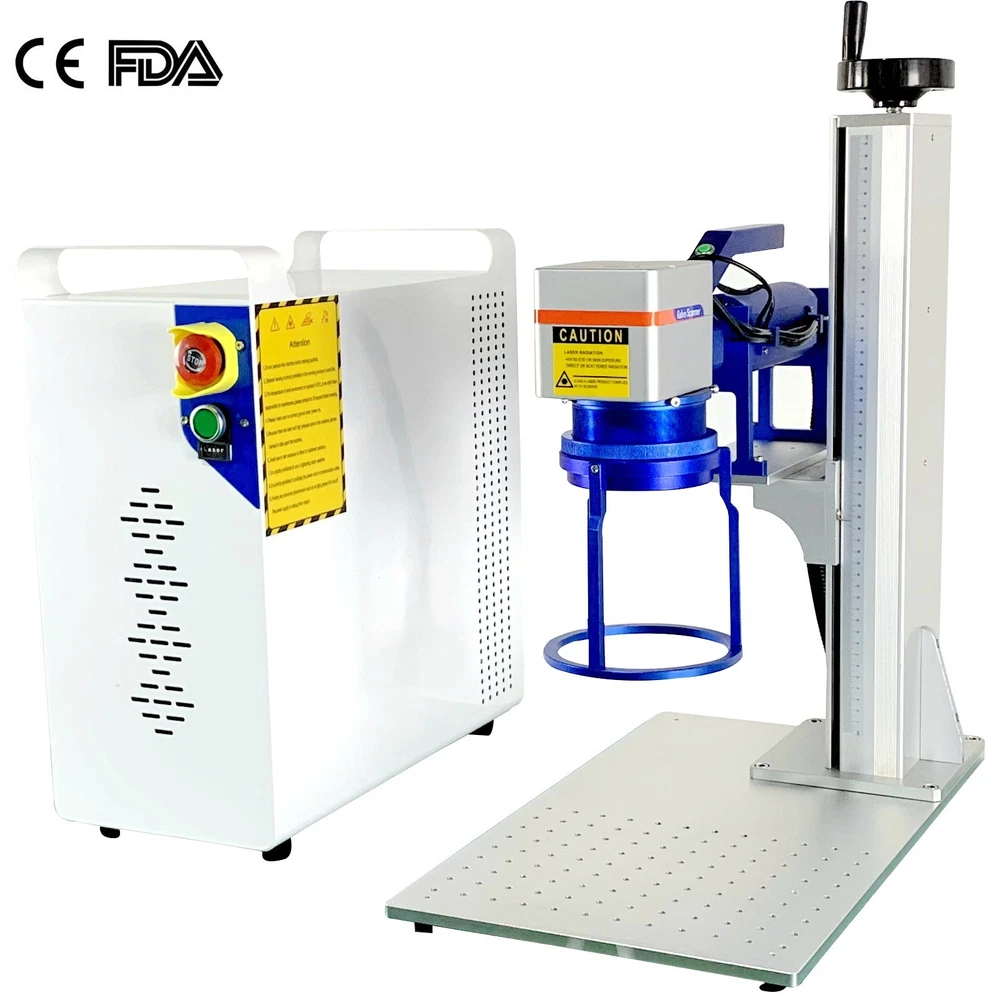

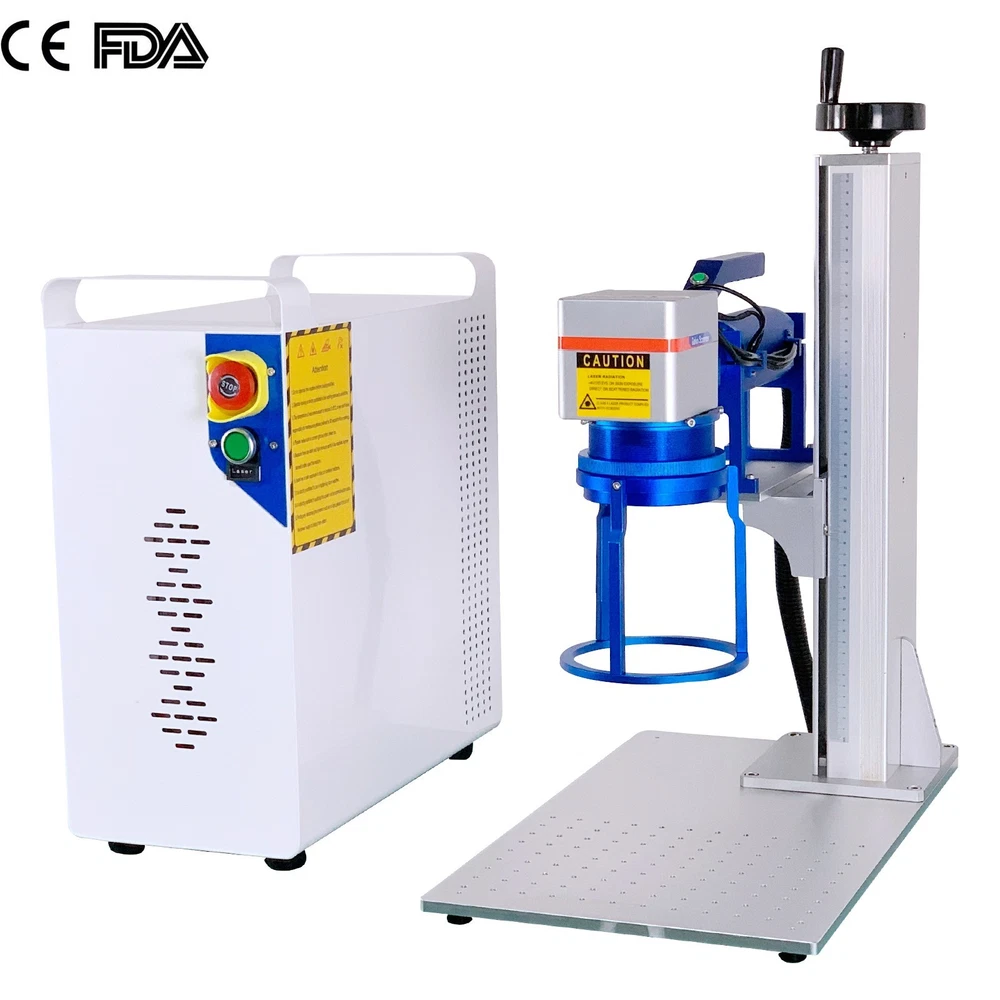

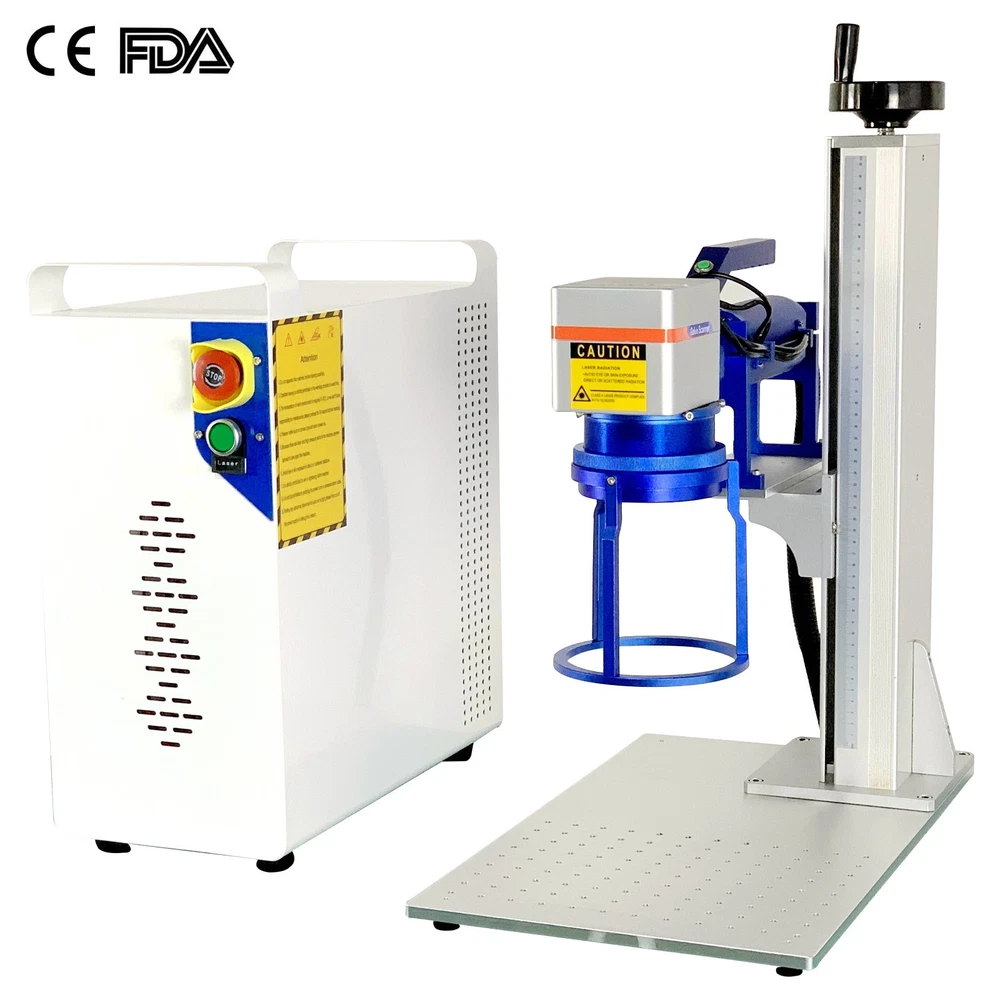

50W RAYCUS Fiber Laser Marker for Lightburn Software Mark Engraver FEDEX LOGO
$ 1441.44
Description
RAYCUS 50W fiber marking machine for metal cutting and marking not suitble for skin Machine with CE and FDA certificate safety and high quality 1.Split type wear-resistant aluminum case design. 2.Built-in high-speed marking laser motion control system. Service life is up to 10 0000 hours. 3.The fiber laser beam has good quality,high reliability and high precision. 4. Fast marking on metals and certain non-metal materials(such as certain hard plastics). 5. 5 years warranty. any parts was bad, we can send you a new one parts free. 6. We offer a reasonable return or replacement policy for defective items. Model SM-F50 Laser power RAYCUS 50W Working Area 110*110 mm ( 300*300mm optional) Cooling Mode Air Cooling Laser Wavelength 1064nm Response Time 0.5 ms Frequency of pulse 0-200 KHz Marking Depth 1 -3 mm Marking Speed 15000mm/s Laser source model RFL-P50QB Laser module life >100000hours Minimum Character 0.15 mm Repeatability Accuracy ±0.001 mm Resolution Ratio 0.01 mm Marking Content Text, pattern, date, bar code, etc Operation System Microsoft Windows 2000/7/8/10 Control Software EZCAD 2 Control Software Graphic Format Supported BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. Unit Power 1.2 KW Operation Temperature 5°C-40°C Beam diameter <30um Dimensions(L*W*H) 85 x 74 x 70 cm Power supply requirements 110 V/220 V Warranty 5 YEARS Red Dot Guidance Visible laser pointers help make focusing quick and easy. The built-in red laser locator calibrates with the laser's scanner to allow precision work on the Machine's workbed. Convenient Manual Focus Achieve consistent focus on various materials using the support column's helpful ruler. Rotate the focus-height wheel for quick focusing on every material. Emergency Stop Button Push the emergency stop button turn off all power if anything wrong happened. Separate emergency stop button is more convenient than twisting the key. Rotary Axis Compatible (Optional) Built-in standard rotary axies (not included) with 4-pin connectors. Enjoy plug and play engraving of rings, bracelets, cups, tubes, and other cylindrical 1. Fiber laser marking machine 1 sets 2. Hexagon wrench 1 sets 3. Laser protect glasses 4. USB cable 1 pc 5. Ruler 6. U-Disk manuals and software 1 pc 7. Power cable 1 pc 8. Foot switch 1 pc 9. Screwdriver 2 pc 1. 80mm rotary axis 300USD 2. 50mm rotary axis 500USD 3. 3D working table 500USD Free shipping by fedex, support door to door shipping, before order, please contact us first, thanks. 1. The machine warranty is five years, once the machine parts was bad, we will send you a new one free. 2. We support one year change a new one machine free. 3. If you have any problems, we will solve them promptly and fairly. 4. 24 hours technician online service Track Page Views With Auctiva's FREE Counter
