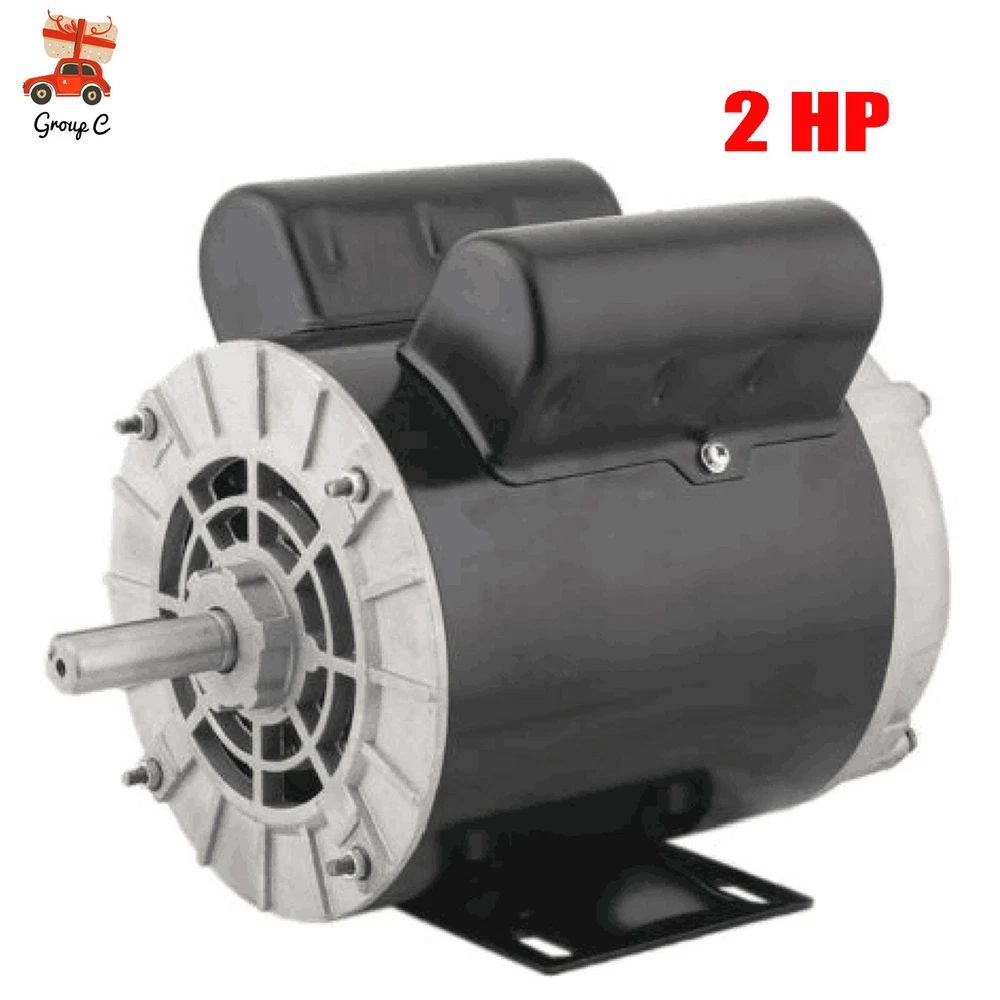

2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8
2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8
2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8
2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8
2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8
2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8

2 HP SPL Compressor Duty Electric Motor 3450 RPM 56 Frame 5/8" Shaft 115/230V US

$ 69.46

Nominal Rated Input Voltage: N/A MPN: Does Not Apply Rotation: CCW WHEN VIEWED FROM SHAFT END Reversible/Non-Reversible: Non-Reversible Shaft Diameter: 5/8" Keyed shaft Shaft Length: 1.88" Brand: Unbranded AC Phase: Single Phase NEMA Frame Suffix: N/A AC Frequency Rating: 60 Hz Overload: Yes / Manual reset button Suitable For: Air Compressor Applications UPC: Does not apply Current Type: AC 1.Feature: High-quality Color: Black Special Motor Construction: N/A Rated Load (HP): 2 Part Type:: 2 Hp Air Compressor INS.CL: F Shipping Note: Cannot ship to Puerto Rico & Hawaii Service Factor: 1.0 Phase: One / Single Phase Shaft Type: Keyed RPM: 3450 Feature 2: High Quality with Warranty Model: Suitable For: Air Compressor Applications gtin13: Does not apply Country/Region of Manufacture: Unknown Surface Finish 1: Made of high quality material IEC Frame Size: N/A Duty: Cont. Compressor AC Motor Type: N/A Full Load Amps: 15/7.5 Voltage: 115/230V (NOT SUITED FOR 208V INCOMING) Enclosure Type: ODP (Open Drip-Proof) Frame: 56 Amperage: (7.5 FLA @ 240V) (15 FLA AT 115V) Horsepower: 2HP

Description

Air Compressor Electric Motor 2 HP 56 Frame Single Phase 120/240 Volt 3450 RPM Product Function Description: Specifications: • Open Drip Proof (ODP) Enclosure • Single Phase • 2 HP • 3450 RPM • 60hz • 120/240 Volts • AMB 40 °C • Frame: 56 • Duty: Cont. Compressor • Service Factor: 1.0 • Full Load Amps: 15/7.5 • INS.CL: F • Non-Reversible, CCW Rotation Facing Shaft • Thermally Protected • Overall Height: 8.5" • Overall Width: 6.35" • Shaft Diameter: 5/8" • Shaft Length: 1.88" • Standard Size Keyway: 3/16" • Features Manual Reset Overload Protection Key Features: • Here we offer you our brand new Air Compressor Duty Electric Motor • High quality Material Steel • High Starting Torque • Rigid Base • Lubricated with Low Temperature grease • Able to withstand harsh industrial applications. • Powerful Ac Motor • Totally Enclosed Fan • Manual Overload Protection • Mounting Bracket Included • 2 HP SPL 3450 RPM, 56 Frame , 120/240V, 15/7.5Amp 5/8" Shaft, Single Phase Air Compressor Electric Motor • Open dripproof Single phase Full Load amps: 15/7.5Amp, 120/240V 2 HP SPL 3450 RPM 5/8 Shaft • Reduced starting amperage design to ensure the reduced voltage starting at rated load. • Equipped with UL approved Manual thermal overload, capacitors and high quality ball bearings to ensure the lifetime. • Open drip-proof is better used in environment that are relatively clean and dry environments. Special design for Air Compressor duty. CCW only. • Special design for Air Compressor duty. • Motor is Non-Reversible CCW (Counter Clockwise) ONLY. • Default settings are default low-voltage current. If the need to use high-voltage current, please replace the use of high voltage wiring. Package includes: 1*2 HP SPL Compressor Duty Electric Motor
