110V 250W AC Gear Reduction Motor Electric+Variable Speed Control Reversible New

Description

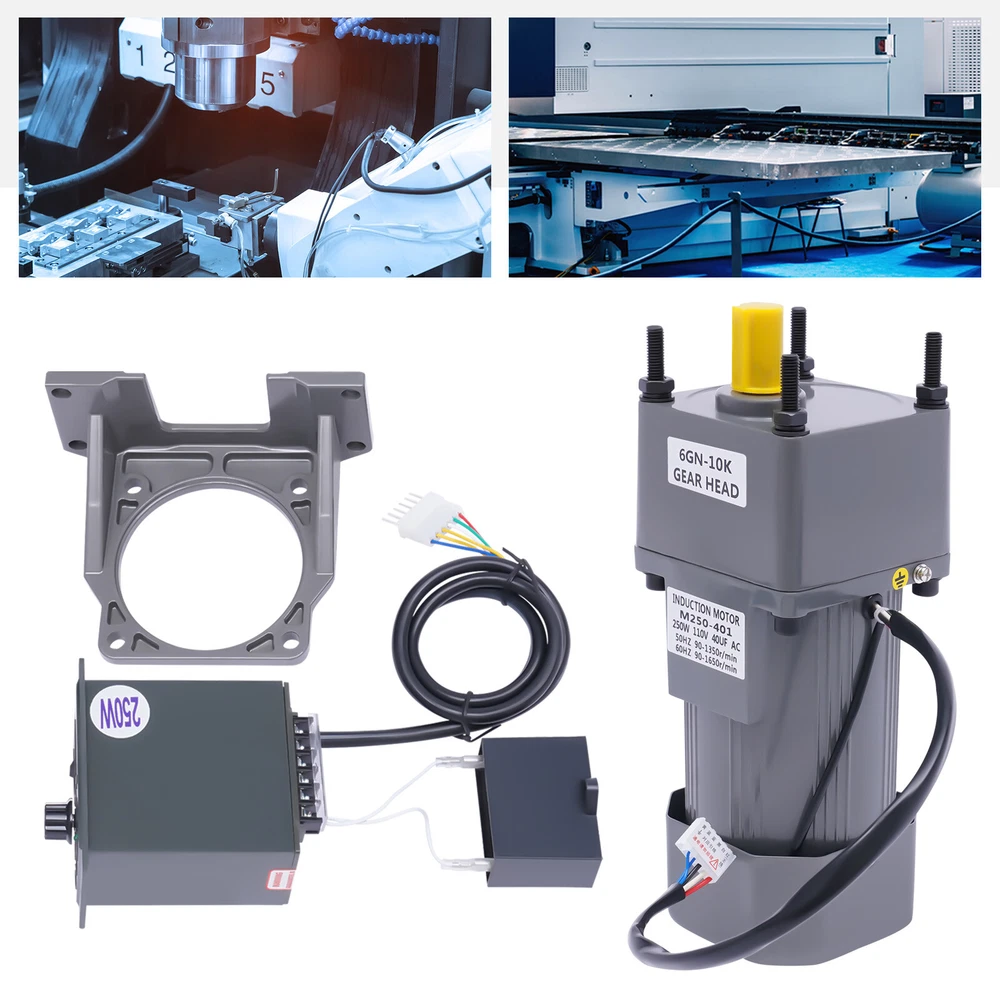

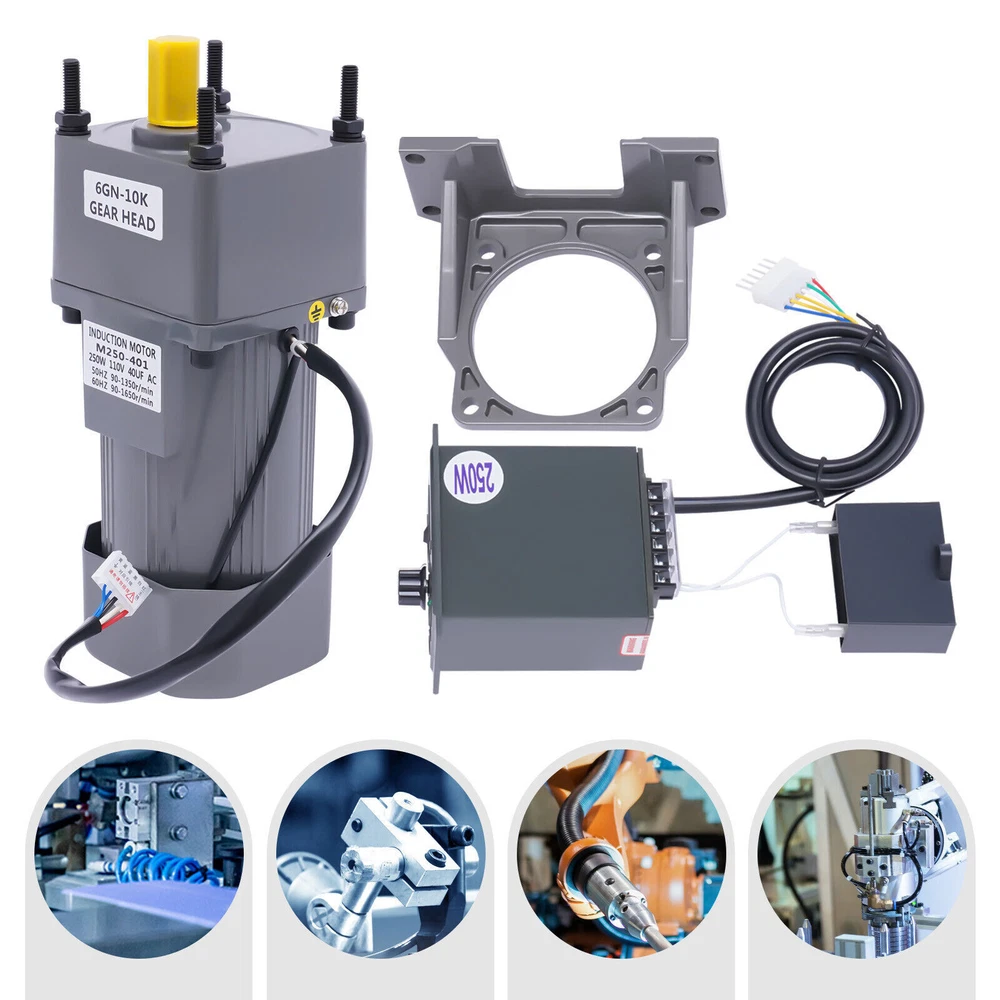

Specifications Material: Aluminum Alloy Gear Material: Steel Type: Single-Phase Coil Material: Copper Color: Grey Power: 250W Voltage: 110V 60Hz Engine Speed Ratio: 10K Torque: 8 N.m Output Speed Range: 0-135rpm (Infinitely Adjustable Speed 0%-100%) Upper Side Length of Bracket: 10.4cm/4.1inch Lower Side Length of Bracket: 16cm/6.3inch Bracket Width: 7.5cm/3inch Bracket Height: 12.5cm/4.9inch Governor Size: 9 * 6 * 10cm/3.5 * 2.4 * 3.9inch Motor Size: 19 * 10.4 * 8.4cm/7.5 * 4.1 * 3.3inch Dimension of Reduction Gearbox: 6.6 * 10.4 * 8.4cm/2.6 * 4.1 * 3.3inch Packing Size: 33*26*13cm/12.99*10.23*5.11in Gross Weight: 7.9kg/17.41lbs Net Weight: 7.3kg/16.09lbs Package Included 1 x Motor 1 x Reduction Gearbox 1 x Governor 1 x Bracket 110V 250W AC Gear Reduction Motor Electric+Variable Speed Control Reversible New Specifications Material: Aluminum Alloy Gear Material: Steel Type: Single-Phase Coil Material: Copper Color: Grey Power: 250W Voltage: 110V 60Hz Engine Speed Ratio: 10K Torque: 8 N.m Output Speed Range: 0-135rpm (Infinitely Adjustable Speed 0%-100%) Upper Side Length of Bracket: 10.4cm/4.1inch Lower Side Length of Bracket: 16cm/6.3inch Bracket Width: 7.5cm/3inch Bracket Height: 12.5cm/4.9inch Governor Size: 9 * 6 * 10cm/3.5 * 2.4 * 3.9inch Motor Size: 19 * 10.4 * 8.4cm/7.5 * 4.1 * 3.3inch Dimension of Reduction Gearbox: 6.6 * 10.4 * 8.4cm/2.6 * 4.1 * 3.3inch Packing Size: 33*26*13cm/12.99*10.23*5.11in Gross Weight: 7.9kg/17.41lbs Net Weight: 7.3kg/16.09lbs Description The product includes a complete set of accessories. In addition to the motor, it is also equipped with a bracket, a reducer, and a speed regulator for your convenience. This gear adjustable motor is primarily used to reduce the speed of a series of gears, thereby producing more power torque to improve working efficiency. This high-quality motor with excellent performance is suitable for various industries. Key Features Strong and Durable : The housing of this product is made of high-quality aluminum alloy, which is strong, durable, wear-resistant, anti-shock , high-temperature resistant, and can protect the internal parts well. Stable Operation : Both ends of the speed control motor rotor are fitted with ball bearings, which allow it to operate with low friction, reduce energy consumption and generate lower temperatures to ensure stable operation. High Efficiency : The stator and rotor are made of pure copper coils with good electrical conductivity, allowing for a constant high and stable power output. Adopting high-precision steel gears effectively increases the torque of the motor, which greatly enhances its working efficiency. Adjustable Speed: You can adjust the speed from 0% to 100% (0-135rpm)through the stepless speed knob on the governor according to the different situations to achieve the desired effect. Easy to Install: Since the motor and gearbox are already installed, you only need to plug the governor cable into the jack of the motor cable to quickly connect the motor and governor, which saves both time and labor. Forward and Reverse Rotatable: The governor is initially specified for forward rotation, but you can connect the wires on the CCW to the CW and then it can be converted to reverse rotation to suit your different needs. Good Heat Dissipation Performance: The motor has a built-in fan heatsink and cooling holes at the rear of the motor, providing good ventilation and heat dissipation to ensure stable performance and long service life. Low Noise: The speed control motor adopts high precision and high-speed bearings inside to bring you lower noise and create a quieter environment for you. Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible. Details Indicator Light: The indicator light on the governor will be on when the power is on so that you can better understand the use status of the product. Motor Bracket: The bracket comes with triangular reinforced side plates for a stable structure, making the motor more firmly fixed without tilting or collapsing. Practical Governor: The governor is equipped with a threaded speed regulating knob, a speed scale panel, and a connector wiring description on the side, which is simple and easy to operate. It is also equipped with a one-button power switch, making it safer to use. Application This product is widely used in industrial assembly lines, intelligent equipment, animal husbandry machinery, printing machinery, textile machinery, instrumentation, food machinery, power transmission and transformation equipment, road gate machines, medical equipment, logistics equipment, security check facilities, financial equipment, new energy, industrial robots, and other industries. Package Included 1 x Motor 1 x Reduction Gearbox 1 x Governor 1 x Bracket Notes When the motor is working, it is normal for the temperature to rise to about 65℃/149℉. Please rest assured that it will not affect your use. Please do not knock the motor and the body of the governor. Please disconnect the power supply before changing the wire. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order. Payment Delivery details Terms of sales About us Contact us Payment We accept ebay payment 。 Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer's responsibility. Delivery details Shipping: 2-9 working days to: USA Terms of sales We maintain high standards of excellence and strive for hundred percent customer satisfaction. Feedback is very important to us. We hope that you contact us immediately before you give neutral or negative feedback, so that we can address your concerns. It is impossible to address issues if we do not know about them! About us Your satis faction is our ultimate goal. We work hard to earn your trust and future business. Our certified technicians have tested each item before shipping. The unit comes with 1 year limited warranty on all manufacturing defects. a) If you receive a defective item, you may return it or ask for a discount. Please contact us within 14 days after you receive the package. b) What you returned must be intact and in its original packaging as re? u. Customer is responsible for shipping costs of the returned item. c) We will cover the cost of shipping back t with the shipping rate indicated in the registration page. We will send you a new unit or refund the full payment you paid. Thank you. Contact us Business Hour Business Hour: Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. Manufacturer Warranty 3 Years Country/Region of Manufacture China Features Flexible Installation,Efficient Works,High Quality Material Brand Unbranded Name Geared Motor Material Aluminum Alloy Gear Material Steel Torque 8 N.m Engine Speed Ratio 10K Nominal Rated Input Voltage 110 V MPN Does Not Apply Voltage 110V 60Hz Current Type AC Rated Load (HP) Does not apply Reversible/Non-Reversible Reversible AC Phase Single Phase Type Single-Phase Coil Material Copper Color Grey Power 250W Output Speed Range 0-135rpm (Infinitely Adjustable Speed 0%-100%) Upper Side Length of Bracket 10.4cm/4.1inch Lower Side Length of Bracket 16cm/6.3inch Bracket Width 7.5cm/3inch Bracket Height 12.5cm/4.9inch Governor Size 9 * 6 * 10cm/3.5 * 2.4 * 3.9inch Motor Size 19 * 10.4 * 8.4cm/7.5 * 4.1 * 3.3inch Dimension of Reduction Gearbox 6.6 * 10.4 * 8.4cm/2.6 * 4.1 * 3.3inch Net Weight 7.3kg/16.09lbs Gross Weight 7.9kg/17.41lbs Packing Size 33*26*13cm/12.99*10.23*5.11in
