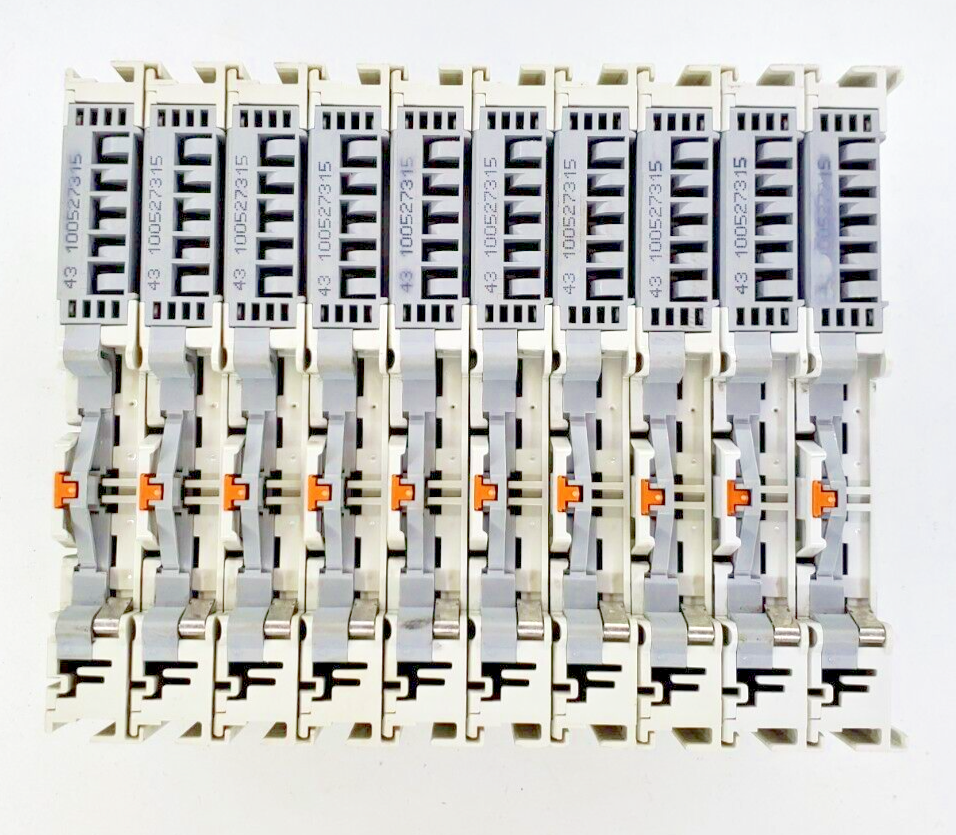

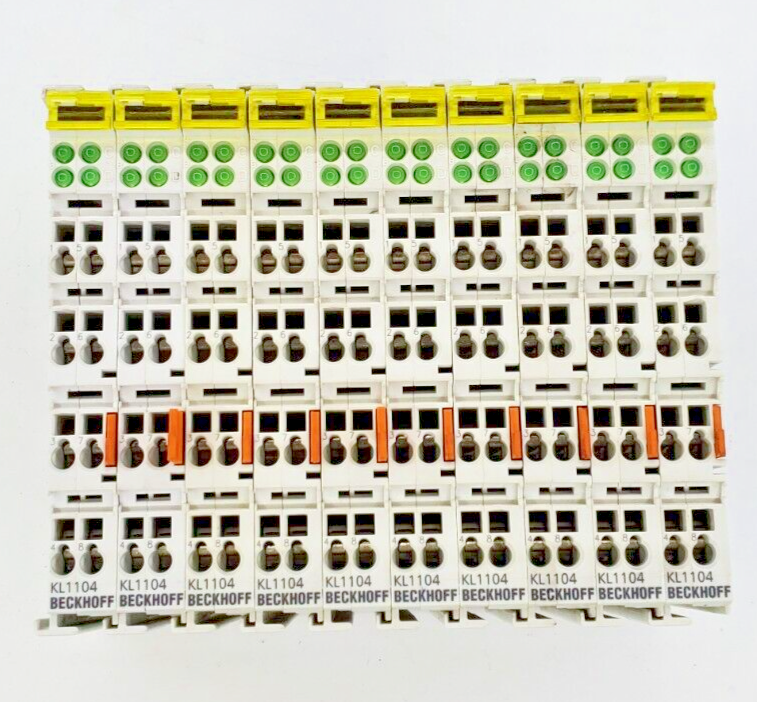

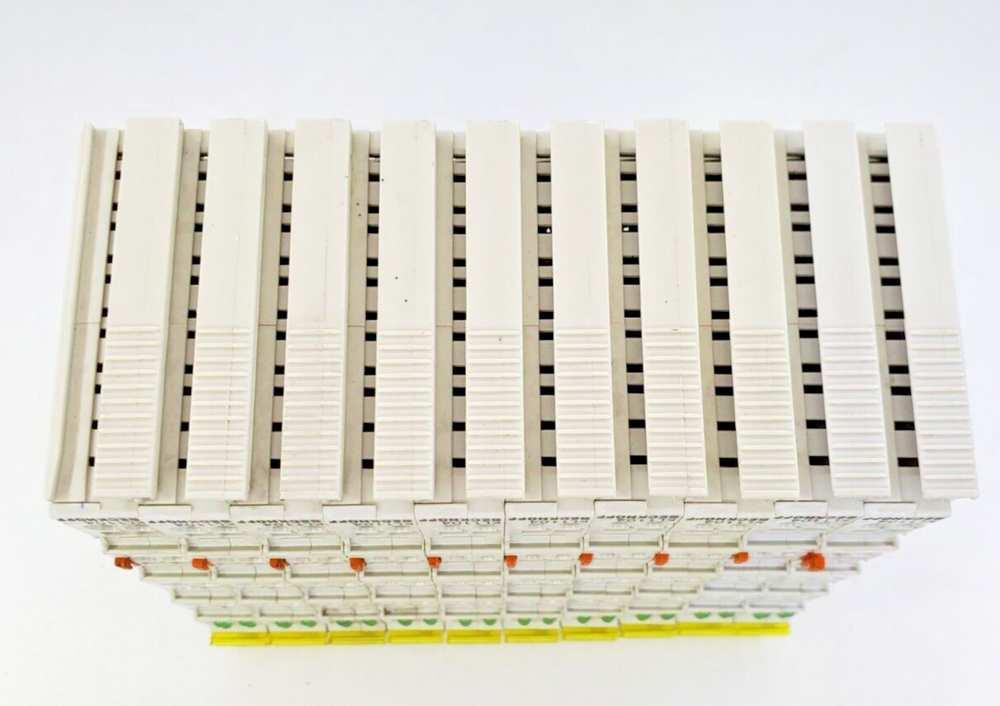

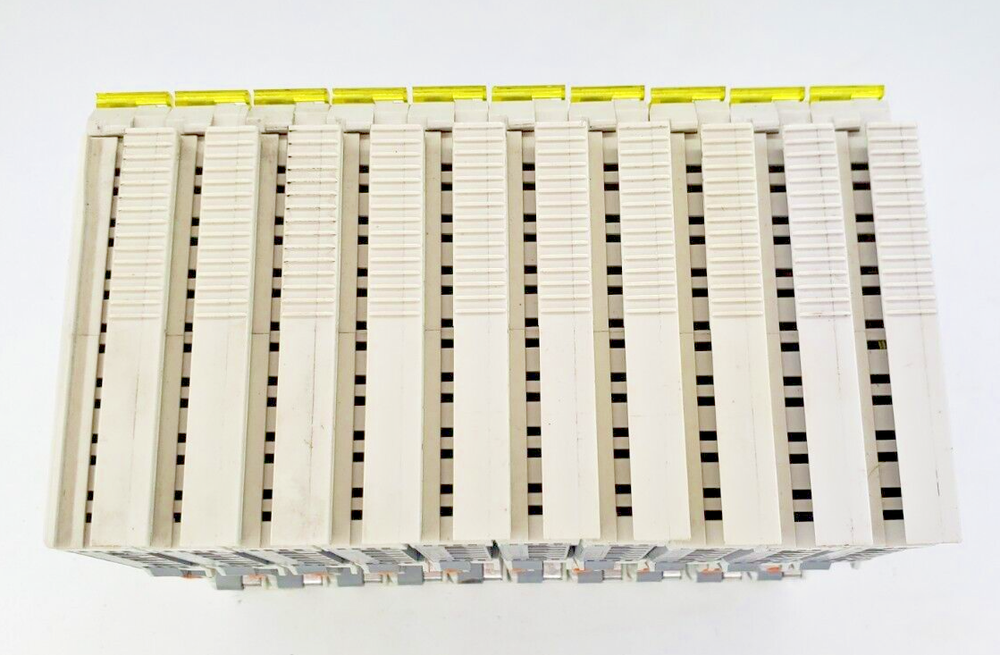

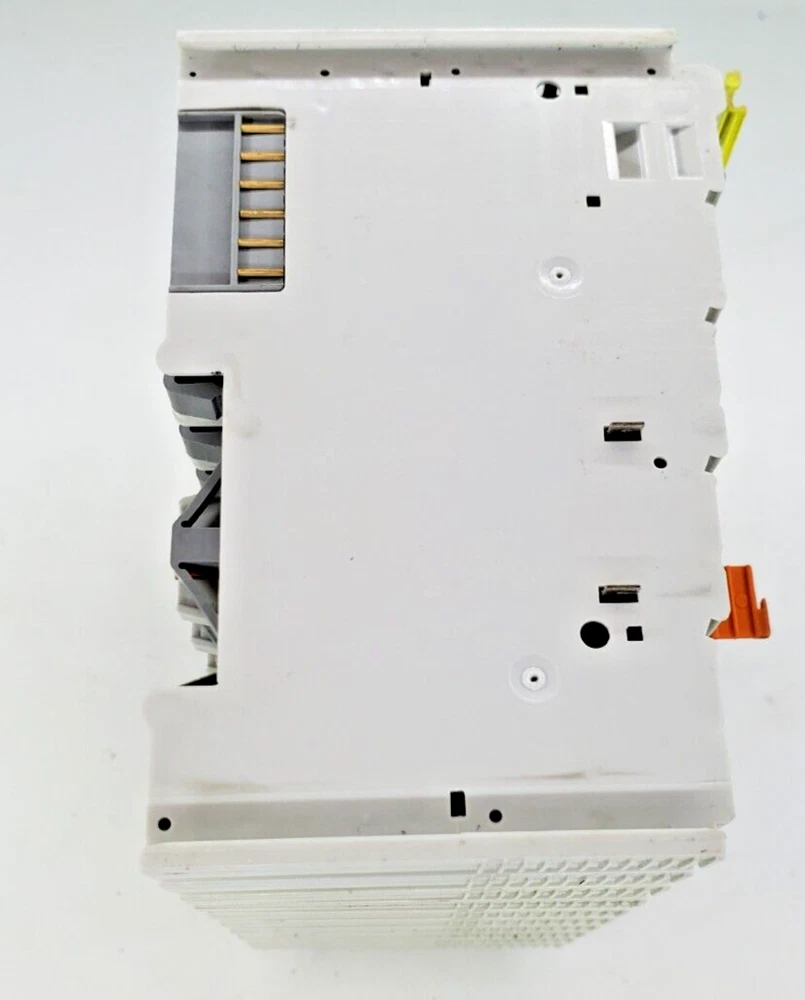

10 PCS BECKHOFF KL1104 | Bus Terminal, 4-channel digital input, 24 V DC, GERMANY
$ 45.3
Description

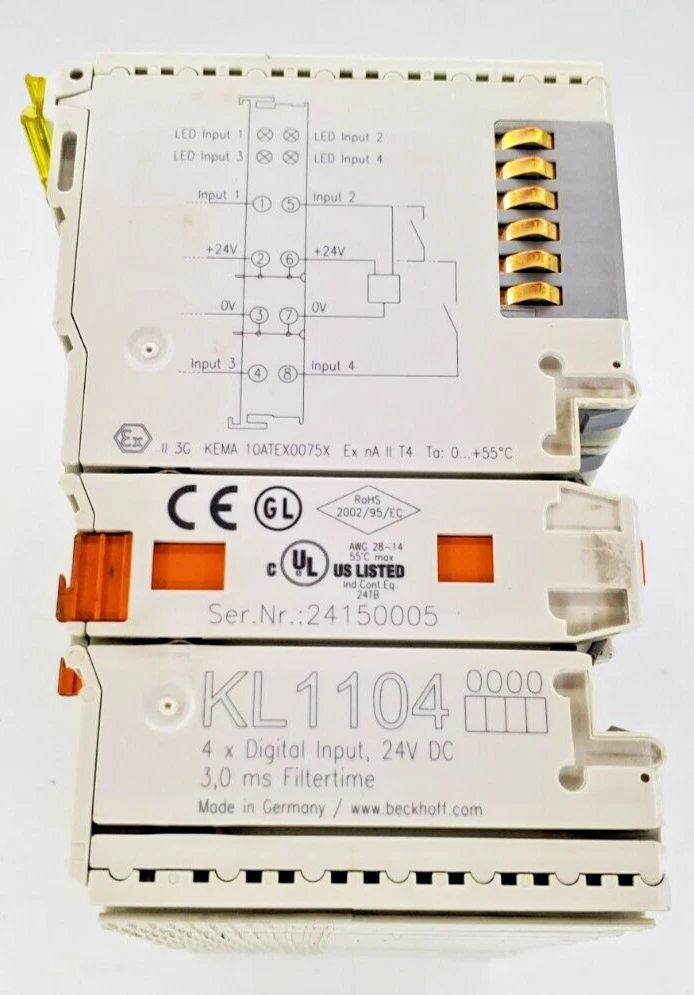

{WORLDWIDE DELIVERY 810 WORKING DAYS} "DISCLAIMER" "THIS PARTICULAR ITEM WILL BE SHIPPED FROM ONE OF OUR INDIAN WAREHOUSE" BEFORE BUYING AN ELECTRONIC PRODUCT: IN ELECTRONIC ITEMS WE UPLOAD VIDEOS SO THAT BUYER CAN GET AN IDEA HOW FUNCTIONAL IT IS, KINDLY PLEASE WATCH THE VIDEO AND IF YOU HAVE ANY QUERIES CONTACT US, WE WILL SOLVE YOUR QUERY 10 PCS KL1104 | Bus Terminal, 4channel digital input, 24 V DC, 3 ms, 2/3wire connection 1 WE VALUE YOUR TIME & MONEY , THANKS FOR OPTING US. WE SELL ALL THE PRODUCTS AS DESCRIBED TO ENSURE YOUR SATISFACTION, AND WORK AT NARROW MARGINS, KINDLY REQUEST YOU NOT TO RETURN PRODUCTS . WE ARE ALWAYS HERE TO HELP YOU. WE STRIVE FOR 100% CUSTOMER SATISFACTION, AND WE STAND BEHIND EVERYTHING WE SELL! WHEN YOU RECEIVE AND ARE HAPPY WITH YOUR PURCHASE PLEASE LEAVE US A 5 STAR FEEDBACK RATING. THANK YOU FOR HELPING US SERVE YOU BETTER!! The KL1104 digital input terminal acquires the binary 24 V DC control signals from the process level and transmits them, in an electrically isolated form, to the higherlevel automation unit. The Bus Terminal contains four channels that indicate its signal state by means of light emitting diodes. Technical data KL1104 Connection technology 2/3wire Specification EN 611312, type 1 Number of inputs 4 Nominal voltage 24 V DC (15 %/+20 %) “0” signal voltage 3…+5 V “1” signal voltage 15…30 V Input filter typ. 3.0 ms Input current typ. 5 mA Current consumption Kbus typ. 5 mA Electrical isolation 500 V (Kbus/field potential) Bit width in the process image 4 inputs Configuration no address or configuration setting Weight approx. 55 g Operating/storage temperature 25…+60 °C/40…+85 °C Relative humidity 95 %, no condensation Vibration/shock resistance conforms to EN 6006826/EN 60068227 EMC immunity/emission conforms to EN 6100062/EN 6100064 Protect. rating/installation pos. IP20/variable Pluggable wiring for all KSxxxx Bus Terminals Approvals/markings CE, UL, ATEX, IECEx, DNV GL Ex marking ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data KL128pin KS128pin Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level Material polycarbonate Dimensions (W x H x D) 12 mm x 100 mm x 68 mm Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of double slot and key connection Marking labeling of the BZxxx series Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver Connection crosssection s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² Connection crosssection AWG s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 s*: AWG 28…16, st*: AWG 28…16, f*: AWG 26…16 Stripping length 8…9 mm 9…10 mm Current load power contacts I max : 10 A *s: solid wire; st: stranded wire; f: with ferrule
